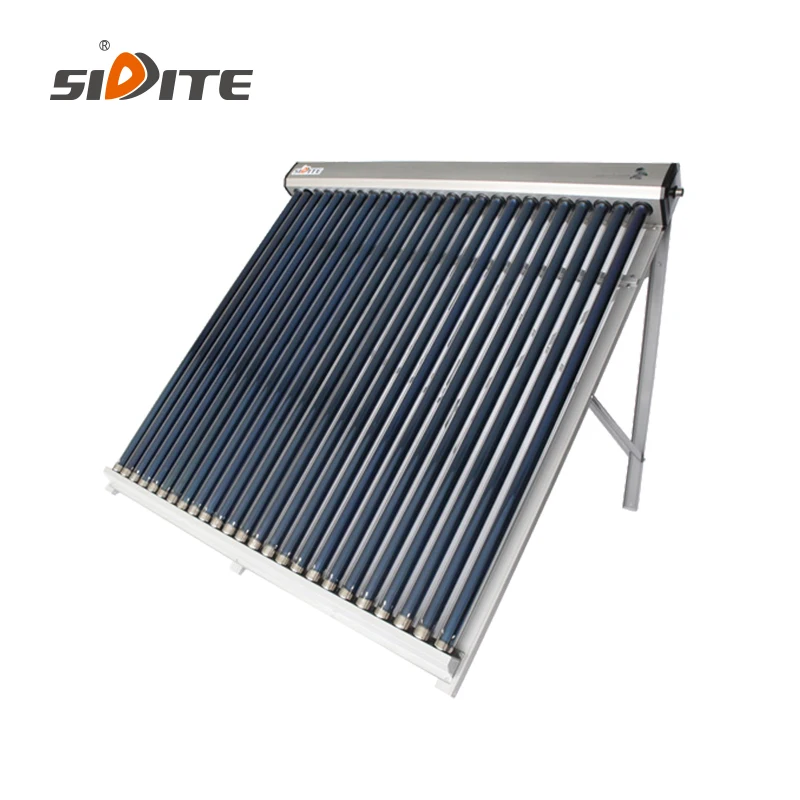

SC-V High Efficiency Commercial Water Heater All-Glass Vacuum Tubes Solar Collector Outdoor Freestanding Non-Pressurized Natural

SC-V High Efficiency Commercial Water Heater All-Glass Vacuum Tubes Solar Collector Outdoor Freestanding Non-Pressurized Natural

SC-V | Non-Pressurized Solar Collector

Overview
Recommended Products

Product Descirption

SC-V | Non-Pressurized Solar Collector

The characteristic:

1. There are double inner tanks.
2. It takes the advantage of the tap water's pressure.
3. Completely automatic operation.
4. The water can be heated rapidly.
5. Use the non-pressurized inner tank as the heat exchanger,simple to install and use.
6. Directly connected with city water without a circulation pump.
7. Working pressure (0.6MPa)

1. Unpressurized,can be used for natural circulation system,large collector area,easy to assemble and install.
2. Polyurethane insulation,high pressure foaming process,small heat conductivity coefficient,not easy to loss heat.
3. Designed for commercial buildings,Suitable for schools, dormitories, hotel, bath center and other public construction.
4. Can be used in large swimming pool heating,industrial hot water and other hot water system.
5. High efficient all glass vacuum tube,high collect thermal efficiency,high heat preservation efficiency.

Model	SC-V-15	SC-V-20	SC-V-25	SC-V-30	SC-V-50	SC-V-60
Tube Quantity(pcs)	15	20	25	30	50	60
Tube Diameter/Length (mm)	Φ58/1800
Vacuum Tube Material	High Borosilicate Glass3.3
Inner Tank Material	SUS304
Insulation Material/Thickness (mm)	Polyurethane/40
Collecting Area(m²)	1.4	1.9	2.4	2.9	4.8	5.8
Gross Area (m²)	2.36	3.12	3.86	4.62	7.72	8.24
Collector Net Weight (kg)	45.75	50.75	59.75	64.75	120.5	129.5
Horizontal Installation Size
Angle	45°						15°
A(mm)	1310	1685	2060	2435	2060	2435
B(mm)	1185	1560	1974	2349	1974	2349
C(mm)	1110	1485	1860	2335	1860	2335
C/2(mm)	—	——	930	1168	—	——
D(mm)	2012	2012	2012	2012	2023	2360
E(mm)	1265	1265	1265	1265	2200	2550
F(mm)	1560	1560	1560	1560	770	860
G(mm)	— —	——	— —	— —	3715	3715
H(mm)	——	——	—	——	3560	3560
H/2(mm)	— —	——	— —	——	1780	1780

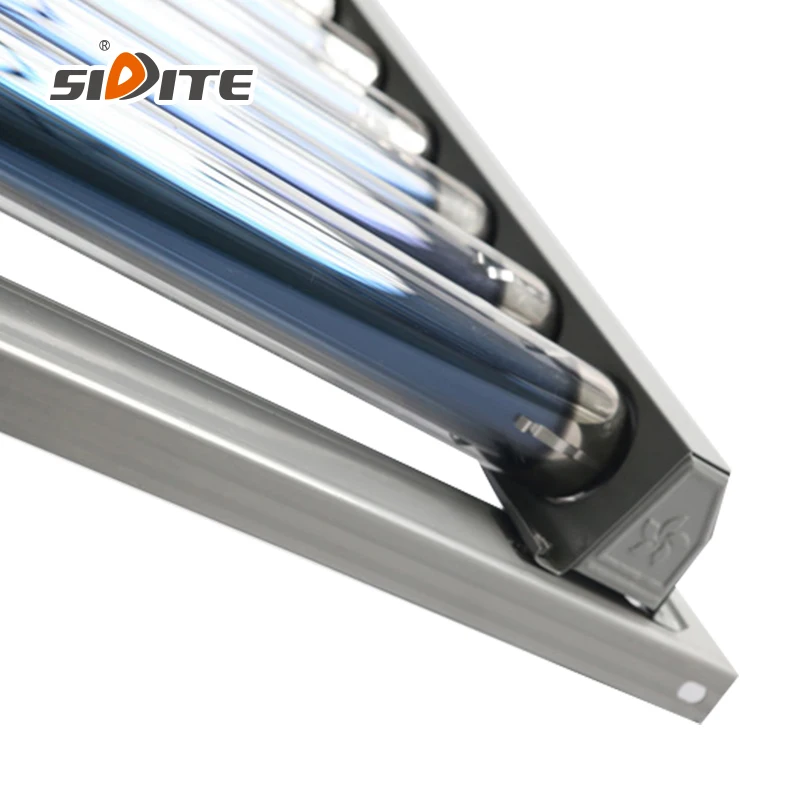

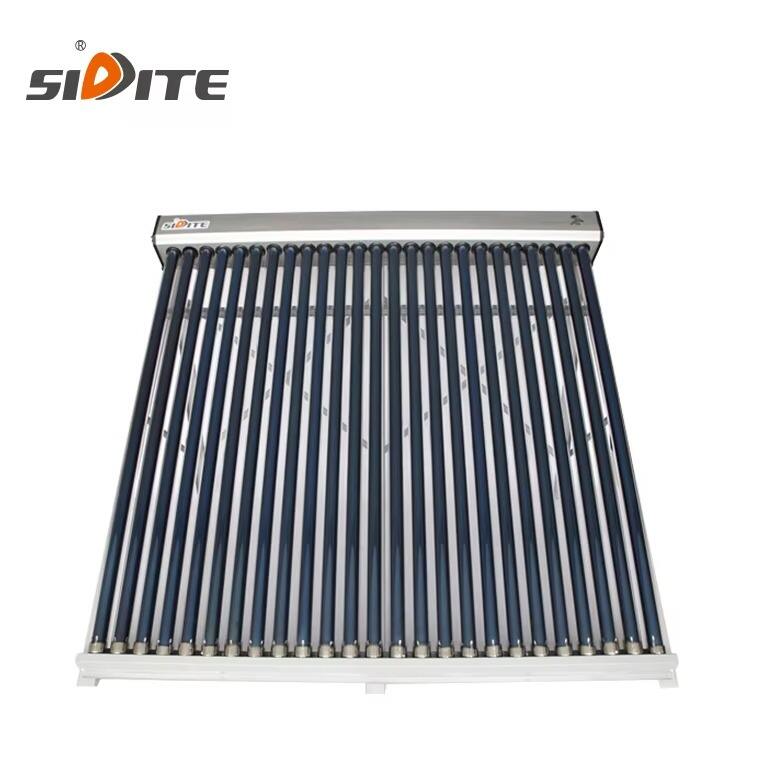

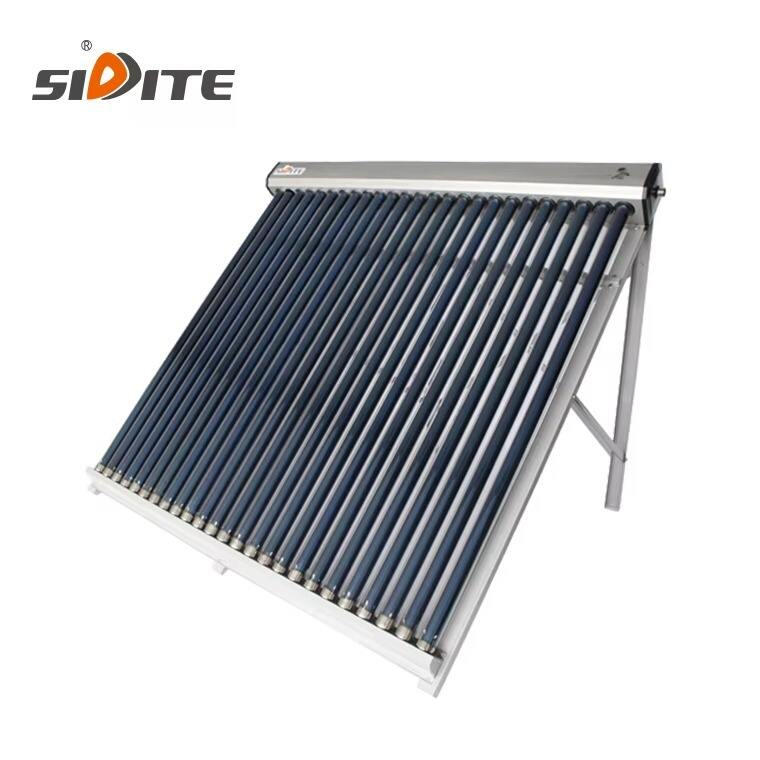

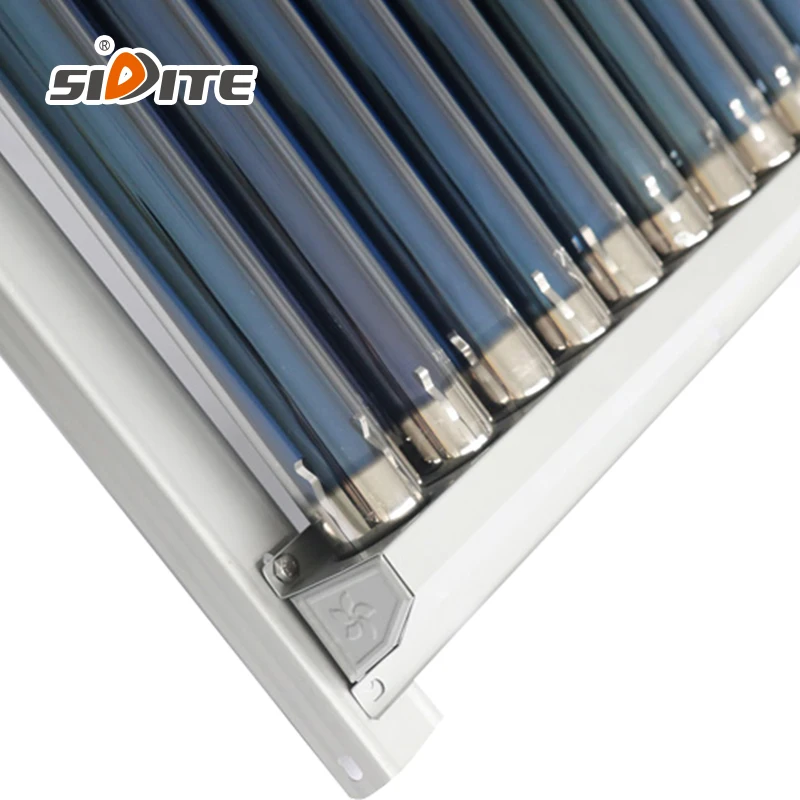

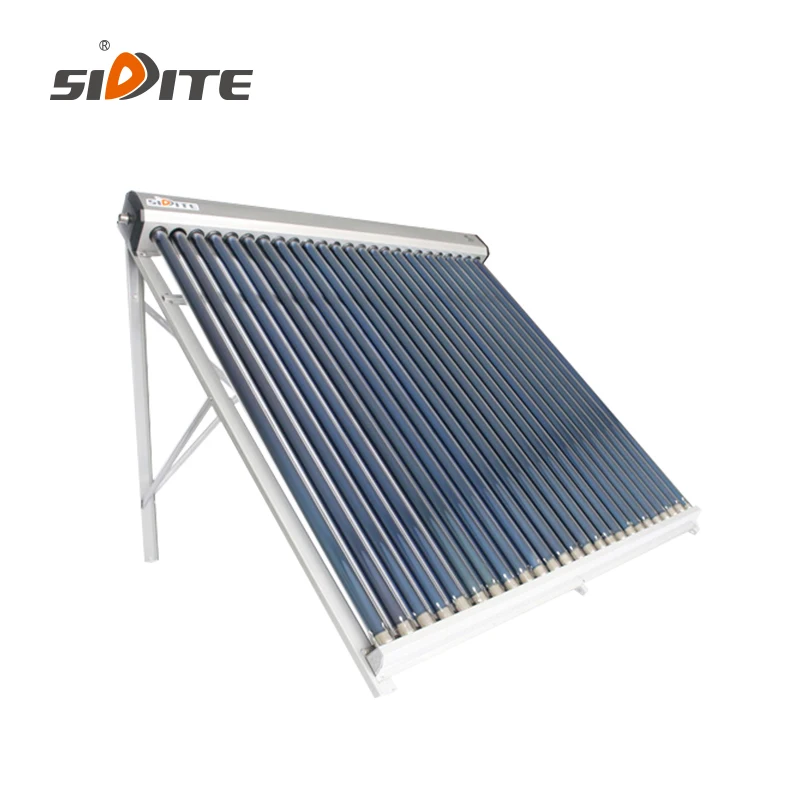

Detailed Images

SC-V High Efficiency Commercial Water Heater All-Glass Vacuum Tubes Solar Collector Outdoor Freestanding Non-Pressurized Natural factory

SC-V High Efficiency Commercial Water Heater All-Glass Vacuum Tubes Solar Collector Outdoor Freestanding Non-Pressurized Natural supplier
