SD-T | Non-Pressurized Solar Water Heater With Assistant Tank

Overview
Recommended Products

Product Descirption

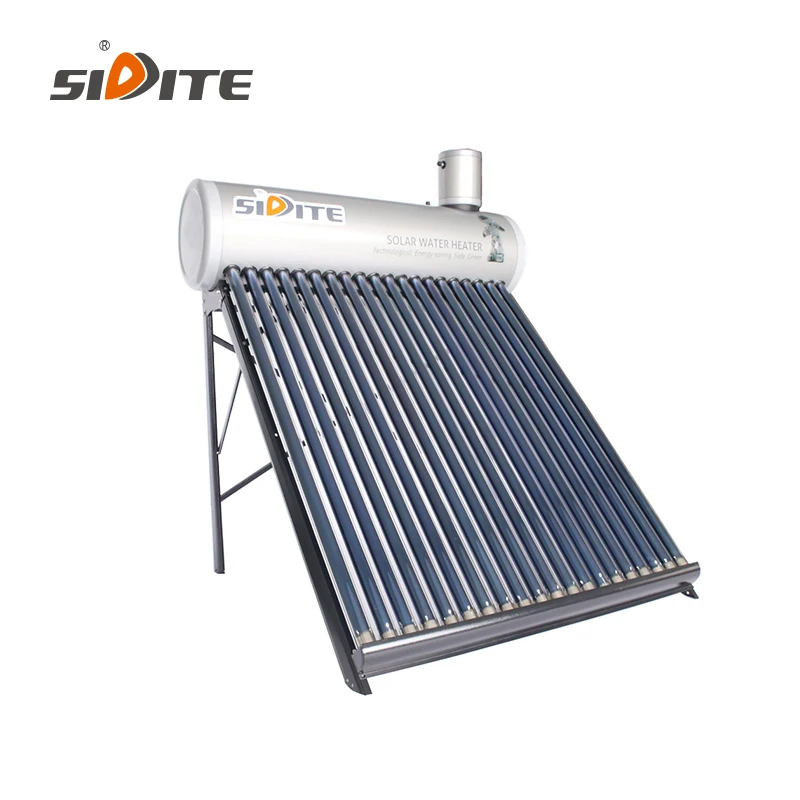

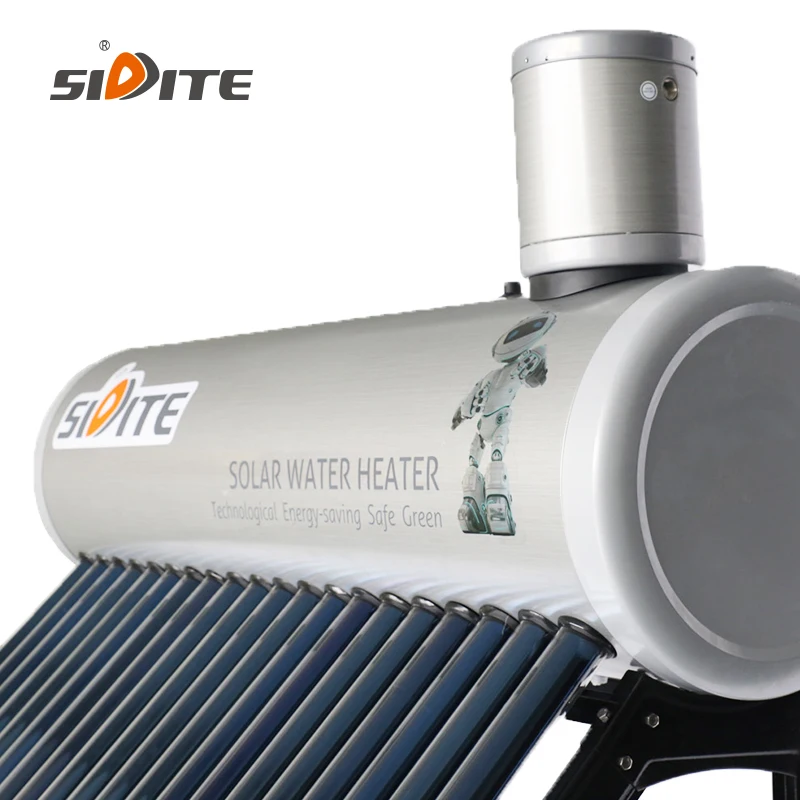

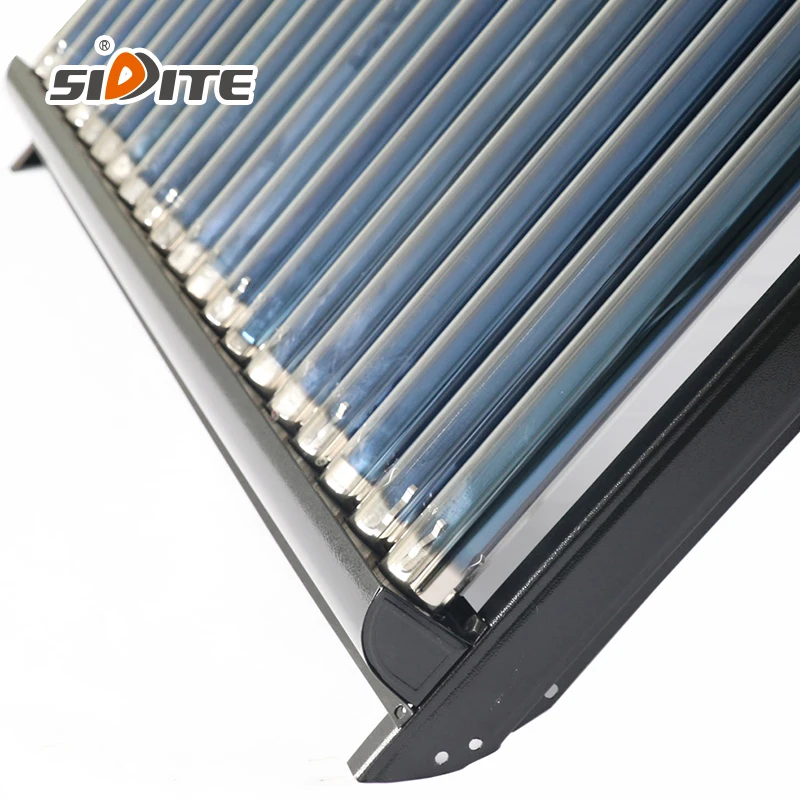

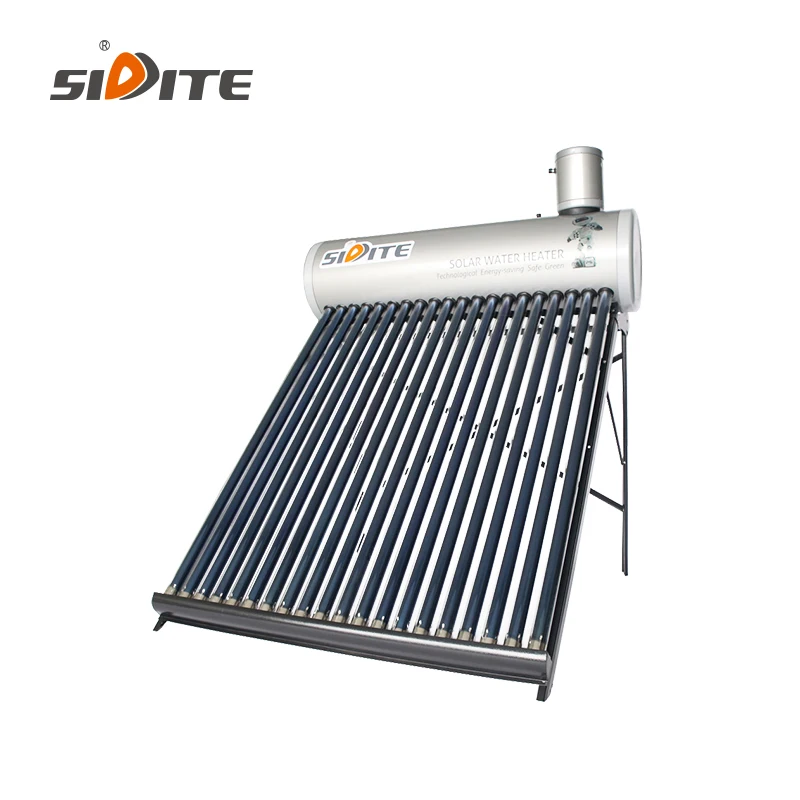

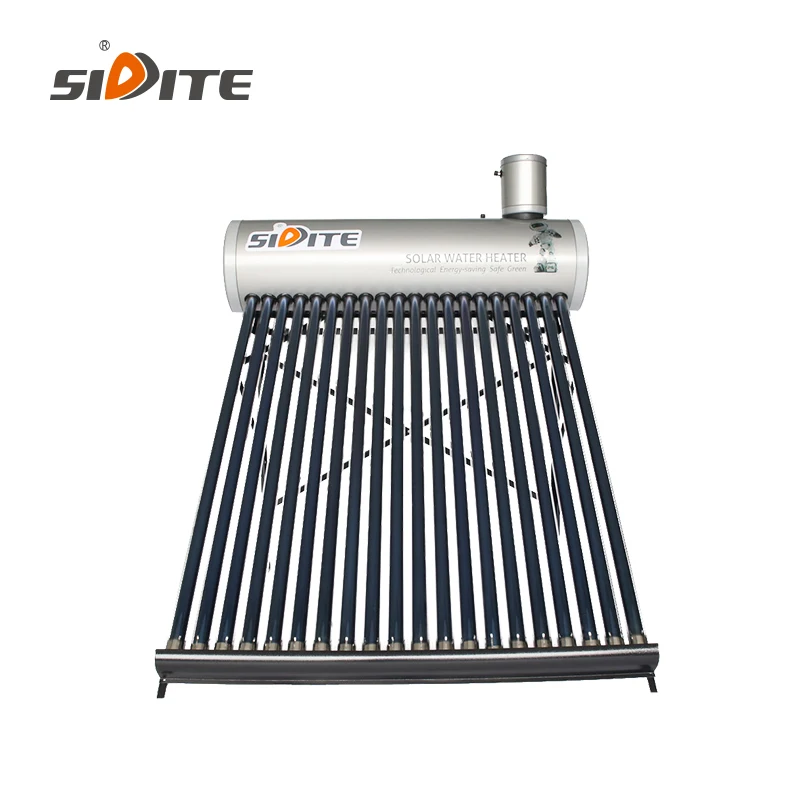

SD-T | Non-Pressurized Solar Water Heater With Assistant Tank

The characteristic:

1. With high quality assistant tank and automatic water supply.
2. Easy to install for ffat roof and pitched roof, auxiliary heating by electrical heater.
3. . High pressure polyurethane foaming with thickness 55mm.
4. Stable and reliable performance, well wind resistance.
5. SUS304-2B inner tank, silicon seals.
6. High strength galvanized steel bracket.
7. Eco and economical, improves the environment and save your fuel cost.

Model	SD-T-10	SD-T-15	SD-T-18	SD-T-20	SD-T-24	SD-T-25	SD-T-30
Tube Quantity(pcs)	10	15	18	20	24	25	30
Water Tank
Net Capacity (L)	80	120	140	155	185	195	230
Gross Capacity(L)	105	155	185	205	245	255	305
Material Of Inner Tank(mm)	SUS304-2B/SUS316L
Material Of Outer Tank	SUS304/Color Steel Plate
Material Of Insulation	Polyurethane
Vacuum Tube
Diameter/Length(mm)	φ58/1800
Material	High Borosilicate Glass3.3
Frame	2 Feets(Left-To-Right)							3 Feets(Left-Middle-Right)
Angle	45°
ltem Size
A(mm)	935	1310	1535	1685	1985	2060	2435
B(mm)	735	1110	1335	1485	1785	1860	2235
C(mm)	1700	1700	1700	1700	1700	1700	1700
C/2(mm)	——	— —	——	——	892.5	930	1255
D(mm)	1430	1430	1430	1430	1430	1430	1430

Detailed Images

SD-T Eco-Friendly Solar Water Heater Assistant Tank 55mm High Pressure Polyurethane SUS304-2B Inner Tank Outdoor Hotels details

SD-T Eco-Friendly Solar Water Heater Assistant Tank 55mm High Pressure Polyurethane SUS304-2B Inner Tank Outdoor Hotels manufacture

SD-T Eco-Friendly Solar Water Heater Assistant Tank 55mm High Pressure Polyurethane SUS304-2B Inner Tank Outdoor Hotels factory
