SR868C9 Smart Solar Controller Temperature Differential Control Unit for 1 Collector 1 Tank Systems 4 Relays 5 Heater Parts

SR868C9 Smart Solar Controller Temperature Differential Control Unit for 1 Collector 1 Tank Systems 4 Relays 5 Heater Parts

SR868C9 | SOLAR CONTROLLER

Overview
Recommended Products

Product Descirption

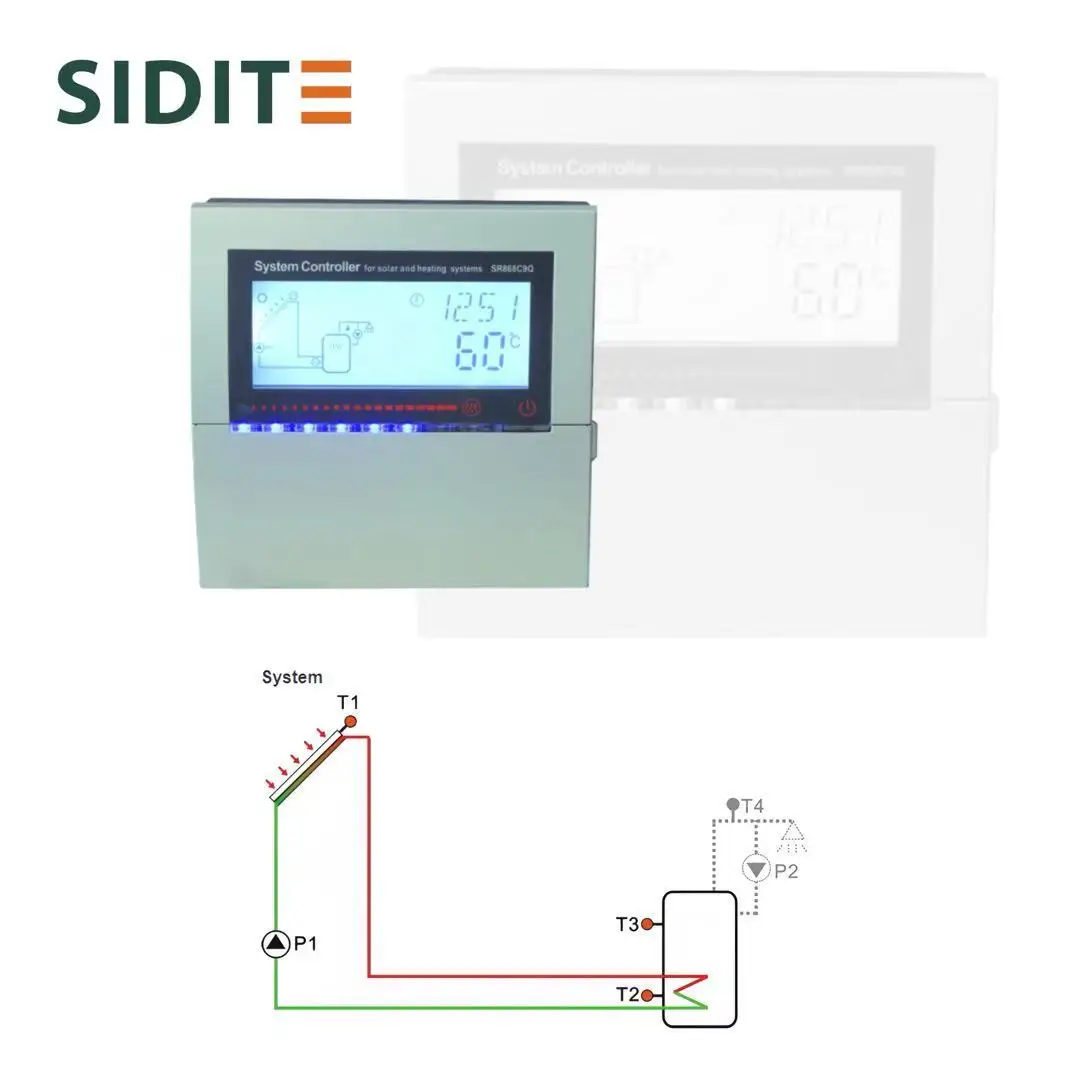

SR868C9 | SOLAR CONTROLLER

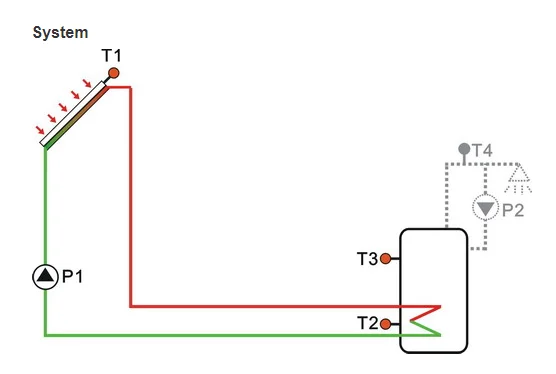

APPLICATIONS CAPACITY Max.number of collectors:1 Max.number of storage tanks:1 Max.number of relays:4 Max.number of sensors:5 Max.number of application system:1 APPLICATIONS DESCRIPTION The solar circuit pump (R1) is switched on as soon as the switch-on temperature difference (△Ton) between the collector array (T1) and the storage tank (T2) is reached. I f the temperature difference between the collector array (T1) and storage tank (T2) drops below the switch-off temperature difference (△Toff), or the temperature of storage tank (T3) reaches the preset maximum storage temperature, then the solar circuit pump(R1)is switched off. Back-up heating by auxiliary boiler:Within the preset time section of back-up heating, if the temperature T3 is below the switch-on temperature, then the circulation pump(H1) of back-up heating is triggered, when T3 is heated to the switch-off temperature, circulation pump

H1 of back-up heating is ceased.

Main technical data：

Dmension	120mm x120mm x23mm
Installation	wall mounting,also suitable for mounting into patch panels
Power supply	200V-240V AC or 100V-130V AC,50-60Hz
Power consumption	< 3W
Accuracy of temperature measuring	± 2℃
Range of collector temperature measuring	-10 ~200℃
Range of tank temperature measuring	0 ~110℃
Suitable power of pump	4 pumps possible to be connected, power of each pump < 200W
Inputs	5 sensors, Pt1000 sensor (≤500℃) for collector (silicon cable≤280℃), NTC10K, B3950 sensor (≤ 135℃) for tank, (PVC cable ≤105℃)
Outputs	4 relays, for circulation pumps or 3-way electromagnetic valve
Ambient temperature	-10℃ ~ 50℃
Water proof grade	IP40

Detailed Images

SR868C9 Smart Solar Controller Temperature Differential Control Unit for 1 Collector 1 Tank Systems 4 Relays 5 Heater Parts details

SR868C9 Smart Solar Controller Temperature Differential Control Unit for 1 Collector 1 Tank Systems 4 Relays 5 Heater Parts supplier

SR868C9 Smart Solar Controller Temperature Differential Control Unit for 1 Collector 1 Tank Systems 4 Relays 5 Heater Parts factory
