Product Descirption

SC-F | Flat Plate Solar Collector

The characteristic:

1. High selective blue/black chrome coating applied for the absorber.
2. Laser welding between full aluminum absorber and copper tubes ensure good conductivity of heat and
firm structure.
3. Tempered textured glass with high transmittance up to 92%.
4. Super large effective heat absorption area offers higher heating efficiency and more energy saving.
5. Mechanical load, freeze resistace, rain penetration, exposure, hail impact, external and internal shock tested etc.
6. 25 years life span with max 0.8Mpa pressure.

Model	SC-F-C/A	SC-F-C/A1	SC-F-C/BC	SC-F-C/BC1	SC-F-C/VC	SC-F-C/VC1
Dimension:LWT	2000×1000×80mm
Material Of Cover	Tempered Glass
Thickness Of Cover	4mm
Area(m²)	2.00m²
Weight	36kg	37kg	37kg	38kg	38kg	38kg
Dimension Of End Pipe	22×0.6mm	22×0.6mm	22×0.6mm	22×0.6mm	22×0.6mm	22×0.6mm
Coating Material	Ultrasonic Welding	Aluminum Composite	Copper Belt Ultrasonic Welding	Aluminum Belt Laser Welding	Aluminum Belt Laser Welding	Aluminum Belt Laser Welding
Material Of End Pipe	Copper Tp2	Coppertp2	Coppertp2	Coppertp2	Coppertp2	Coppertp2
Size Of Fin	125mm*0.3mm	122mm*0.55mm	125mm*0.15mm	950mm*0.3mm	950mm*0.3mm	950mm*0.3mm
Coating Of Surface	Anodic Oxidation	Anodic Oxidation	Black Chrome	Black Chrome	Chinese Blue Film	Germany Blue Film
Max Working Pressure	0.6mpa
Thickness Of Insulation Layer	Back:30 mm Side:20 mm
Max Temp Of Operation	≤200
Material Of Insulation Layer	Glass Wool
Material Of Frame	6063 Aluminum Alloy
Material Of Back Cover	Embossed Aluminum
Seal Material	Epdm

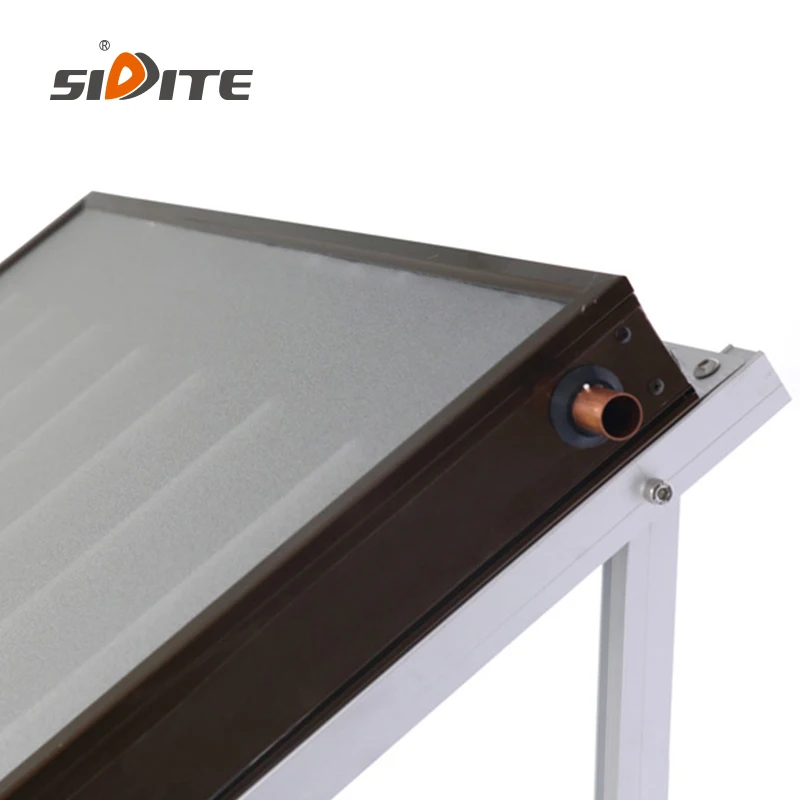

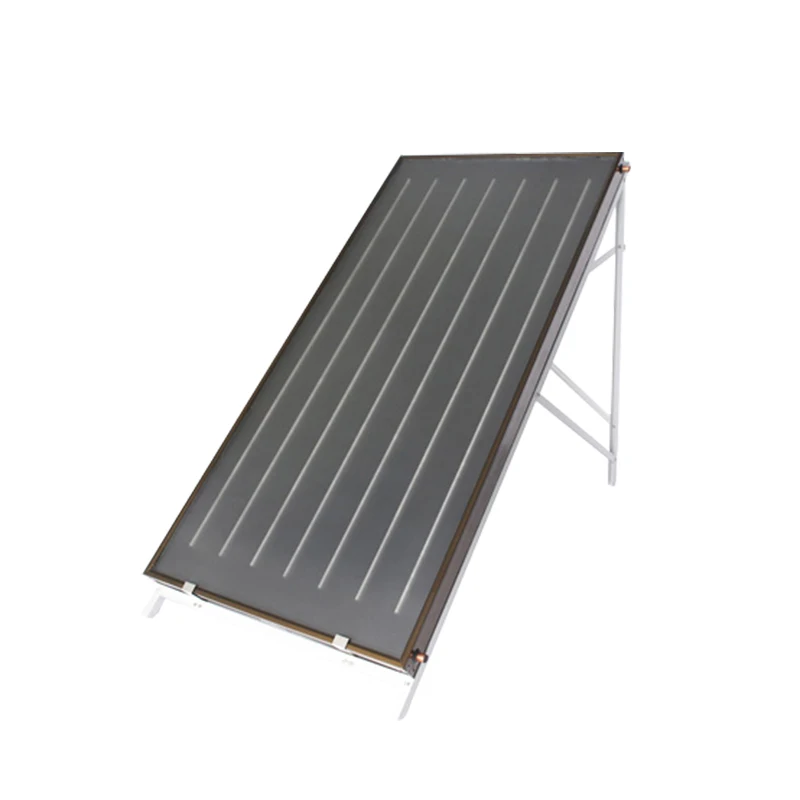

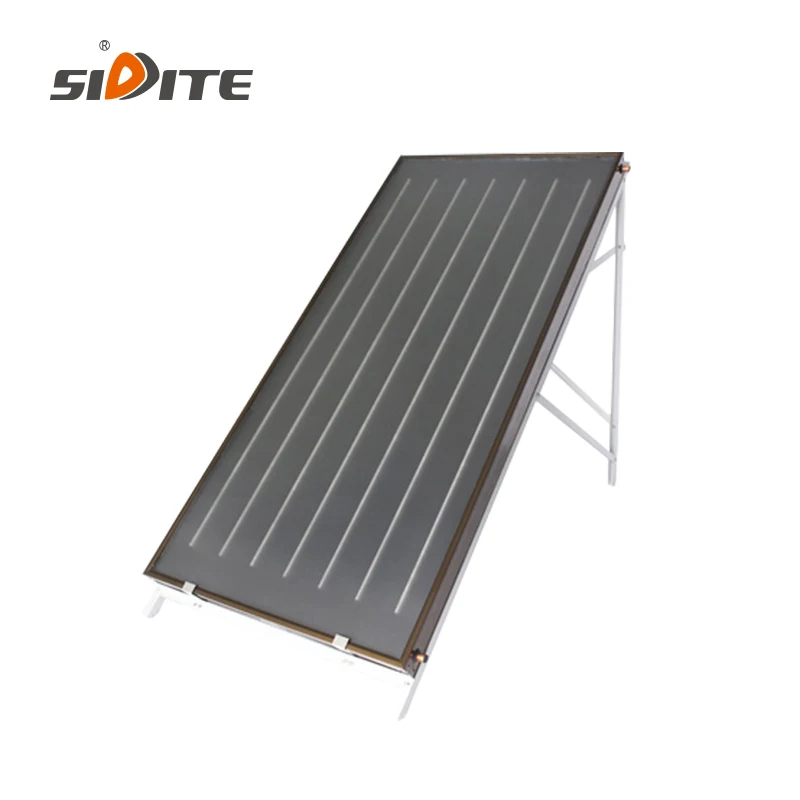

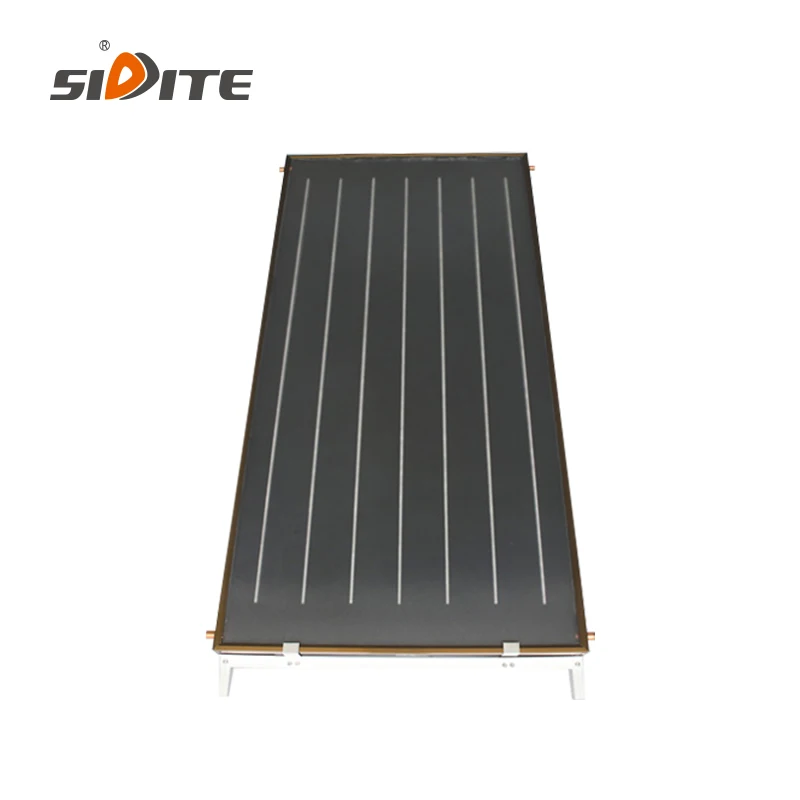

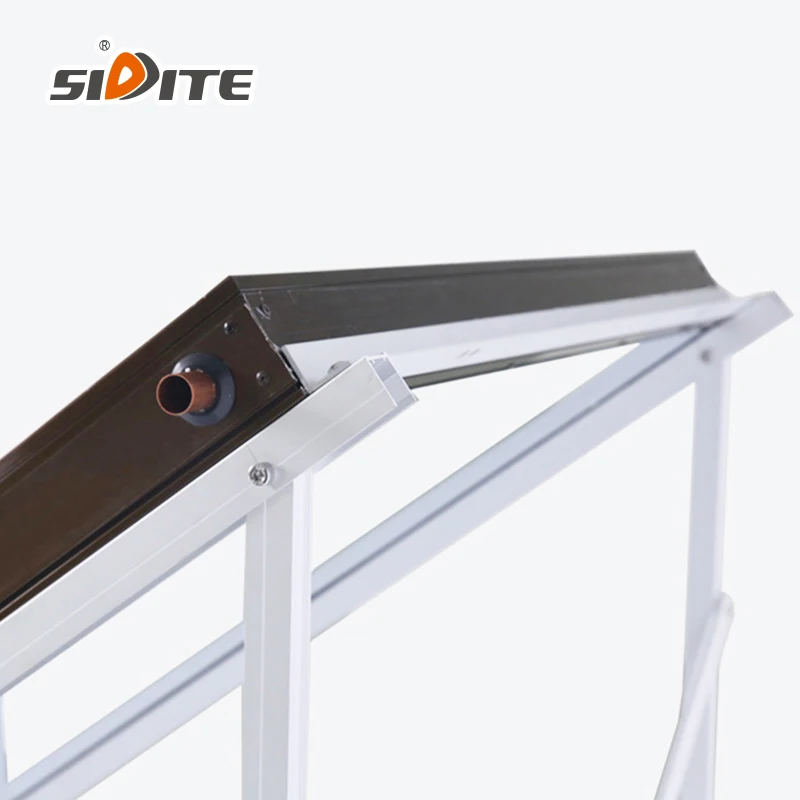

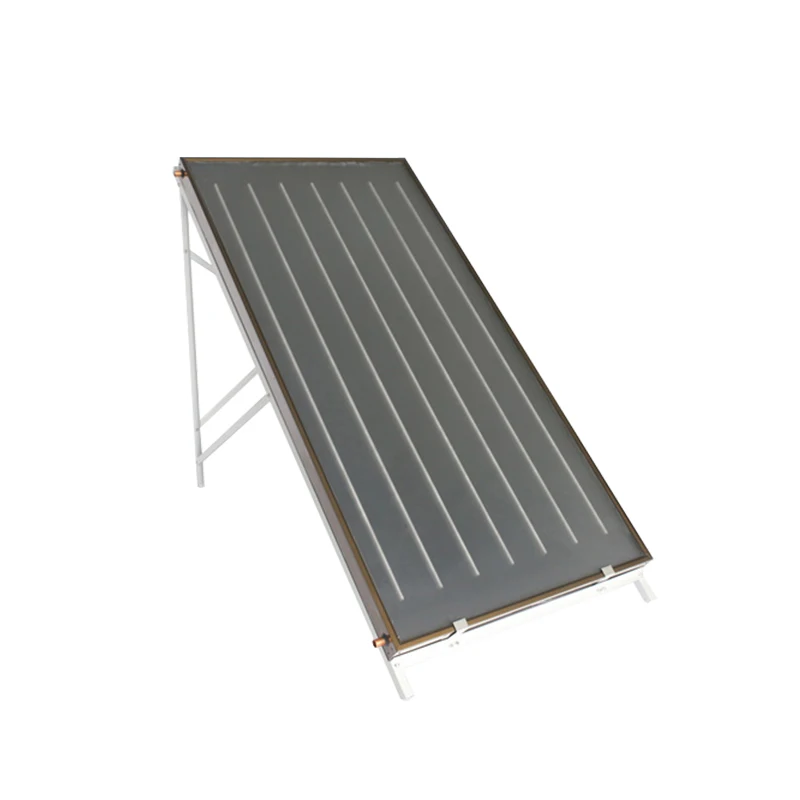

Detailed Images

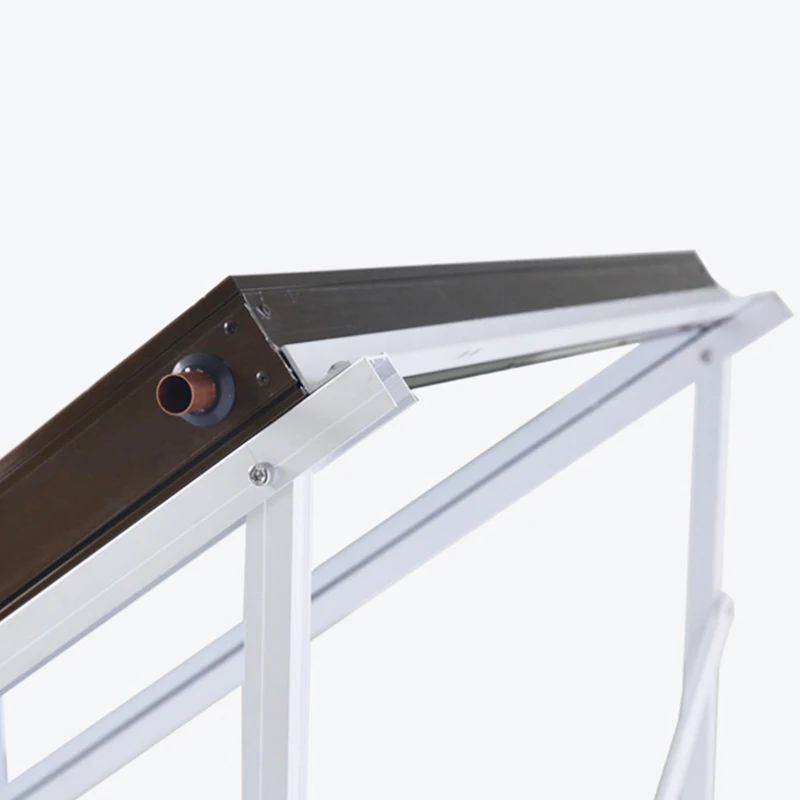

High Efficiency Energy Saving SC-F Flat Plate Solar Collector Selective Blue/Black Chrome Coating Laser-Welded Hotels Outdoor factory

High Efficiency Energy Saving SC-F Flat Plate Solar Collector Selective Blue/Black Chrome Coating Laser-Welded Hotels Outdoor manufacture

High Efficiency Energy Saving SC-F Flat Plate Solar Collector Selective Blue/Black Chrome Coating Laser-Welded Hotels Outdoor details

High Efficiency Energy Saving SC-F Flat Plate Solar Collector Selective Blue/Black Chrome Coating Laser-Welded Hotels Outdoor supplier

About Us

SIDTE Energy Co., Ltd

SIDITE Energy Co., Ltd., founded in 2000, is located in JiaXing City, Zhejiang Province.
The company specializes in the production of solar water heaters, solar collectors, solar power generation systems, and various heat pump products, including domestic, commercial, and industrial heat pumps.

Equipped with the most advanced production line and the 6 Pump Performance Comprehensive Laboratory" in China.20ITE recognized as a national high-tech enterprise, boasting 24 years of manufacturing experience.Currently, 50% of its products are exported to international market.

Our products have been awarded numerous certifications, including the Solar Keymark, CE,CCC,ISO9001, and ISO14001, and have been shipped to over 50 countries, such as Germany, the Holland, Poland, Finland, Brazil,Argentina,Australia, and Kenya.

Ensuring the highest level of customer satisfaction is our primary objective. We are committed to upholding the principles of"customer first, credit first" to establish and foster mutually beneficial cooperative relationships with clients worldwide.

Sidite makes your life green!
