SC-H24 | 24mm Condenser Heat Pipe Solar Collector

Overview
Recommended Products

Product Descirption

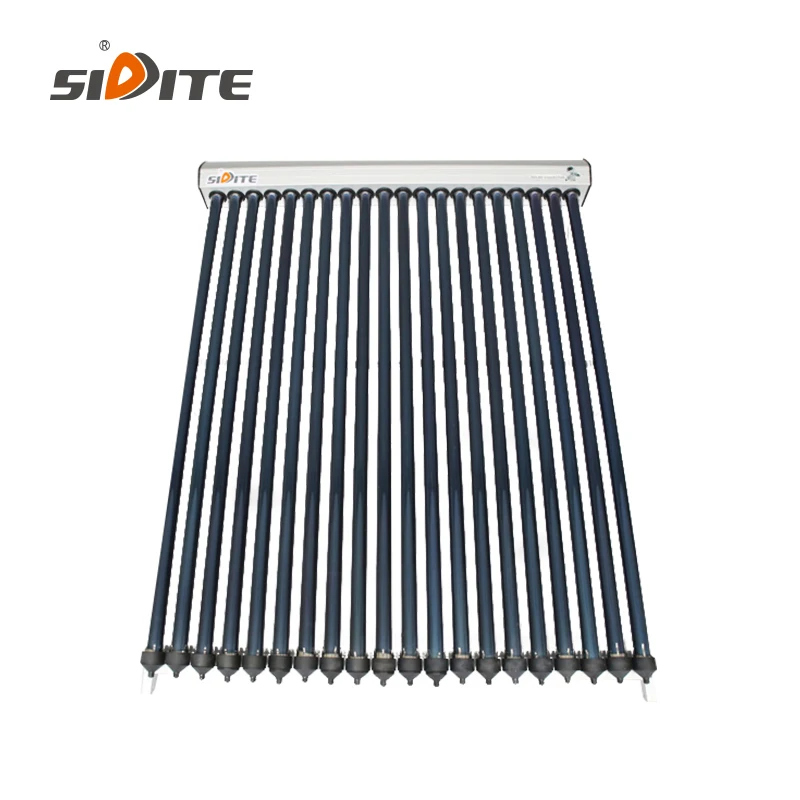

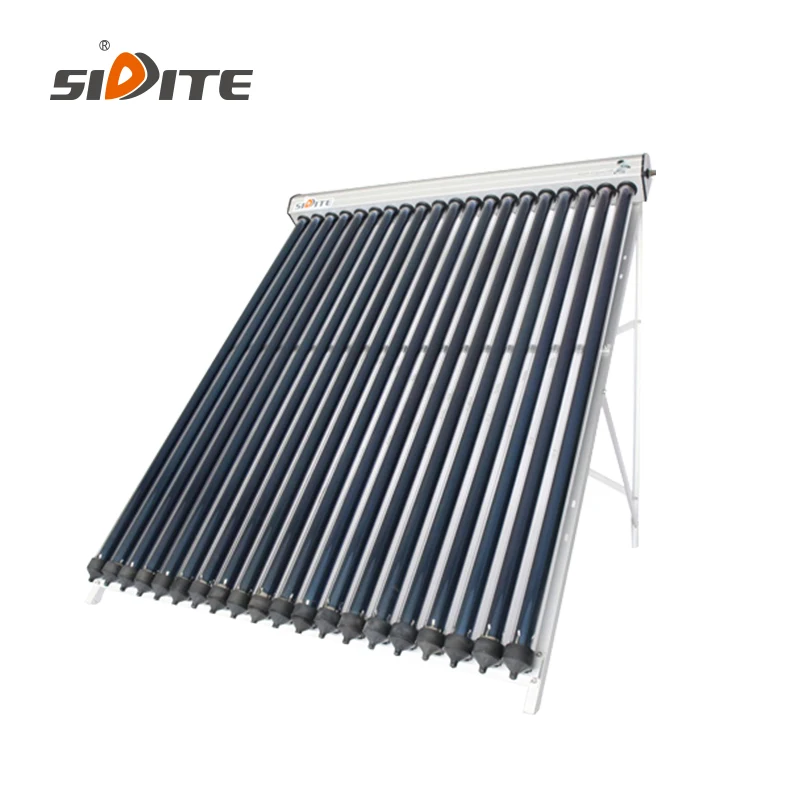

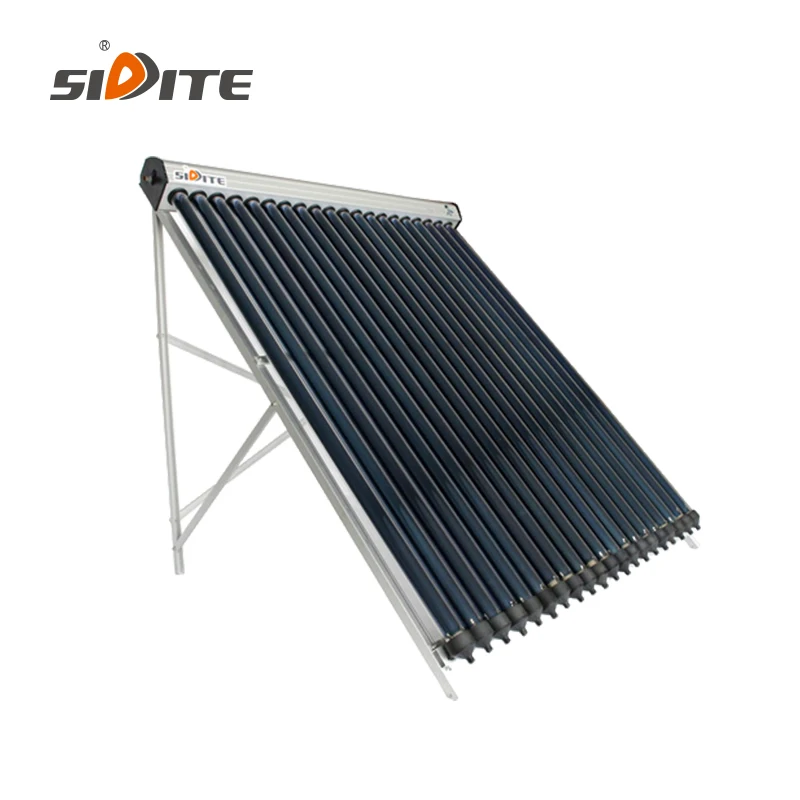

SC-H24 | 24mm Condenser Heat Pipe Solar Collector

The characteristic:

1. Twin-glass vacuum tubes: reliable, efficient, high temperature resistant, anti-freezing.
2. There is no water in the vacuum tube, the system will still work even the tube broken.
3. Red copper heat pipe, one-way transferring, fast heat transfer, less heat loss, low temperature resistance, it can be used in -35℃.
4. Aluminum alloy manifold and bracket, corrosion resistance, easy to install. It’s suitable for flat and sloping roof.
5. High temperature resistant rock wool / glass wool, high density, good thermal insulation properties.
6. High quality copper manifold, its testing pressure is 1MPa.
7. Solar Keymark certification approved.
8. Eco and economical, improves the environment and save your fuel cost.
9. Condenser 24*70mm, large heat exchange area, higher heat transfer power.

	SC-H24-10	SC-H24-15	SC-H24-18	SC-H24-20	SC-H24-24	SC-H24-25	SC-H24-30
Tube Quantity(pcs)	10	15	18	20	24	25	30
Vacuum Tube Diameter/Length (mm)	φ58/1800
Vacuum Tube Material	High Borosilicate Glass 3.3
Heat Pipe(mm)	φ24/1700
Insulation Material/Thickness (mm)	Rock Wool/55
Rated Pressure(mpa)	0.6
Aperture Area (m²)	1	1.5	1.8	2	2.4	2.5	3
Gross Area (m²)	1.6	2.21	2.81	3.12	3.72	3.87	4.8
Power(w)1000w/m²	744	1044	1256	1398	1681	1748	2098
Net Weight(kg)	40.25	52.75	61.75	66.75	81.00	85.35	100.70
A(mm)	895	1270	1495	1645	1945	2020	2395
B(mm)	800	1175	1400	1550	1850	1925	2300
C(mm)	725	1100	1325	1475	1775	1850	2225
C/2(mm)	——	——	——	——	887.5	925	1112.5
D(mm)	2010	2010	2010	2010	2010	2010	2010
E(mm)	1240	1240	1240	1240	1240	1240	1240
F(mm)	1505	1505	1505	1505	1505	1505	1505

Detailed Images

SC-H24 24mm Condenser Heat Pipe Solar Collector Red Copper Heat Pipe Aluminum Alloy Manifold Twin-Glass Free-Standing Outdoor manufacture

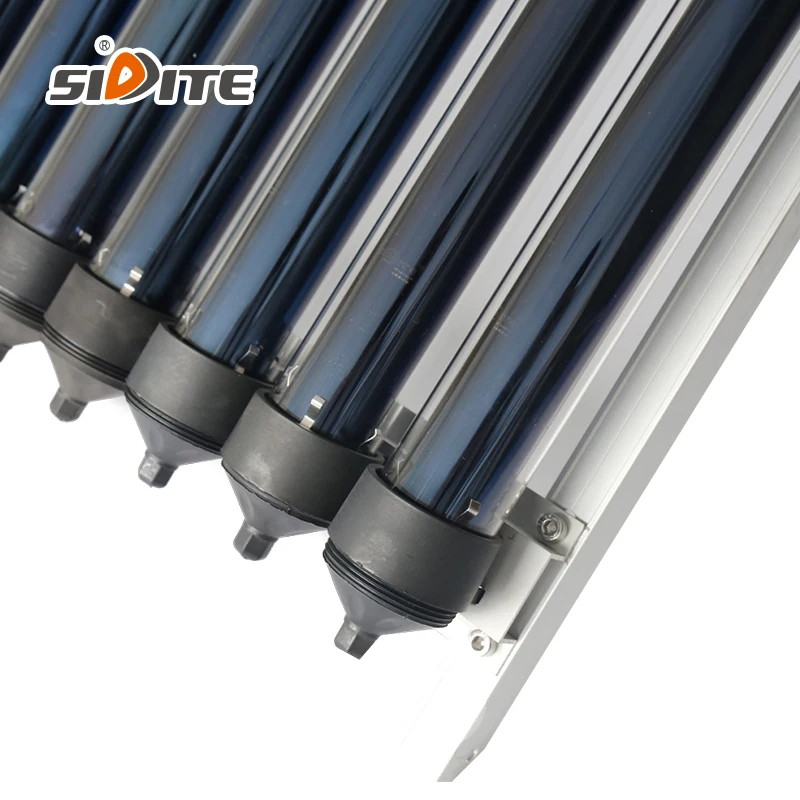

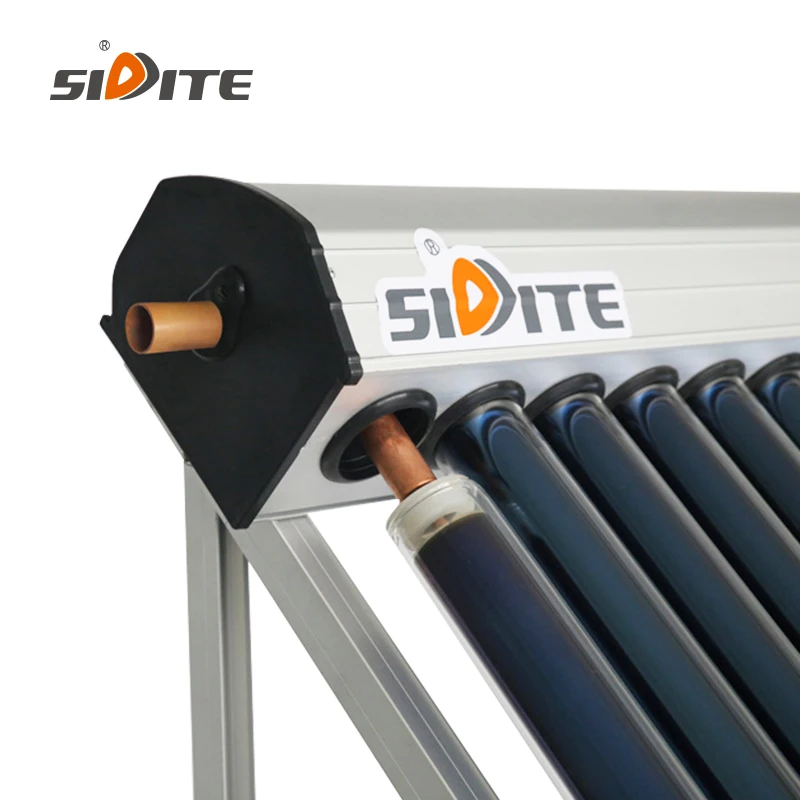

SC-H24 24mm Condenser Heat Pipe Solar Collector Red Copper Heat Pipe Aluminum Alloy Manifold Twin-Glass Free-Standing Outdoor details

SC-H24 24mm Condenser Heat Pipe Solar Collector Red Copper Heat Pipe Aluminum Alloy Manifold Twin-Glass Free-Standing Outdoor factory

About Us

SC-H24 24mm Condenser Heat Pipe Solar Collector Red Copper Heat Pipe Aluminum Alloy Manifold Twin-Glass Free-Standing Outdoor supplier

SIDTE Energy Co., Ltd

SIDITE Energy Co., Ltd., founded in 2000, is located in JiaXing City, Zhejiang Province.
The company specializes in the production of solar water heaters, solar collectors, solar power generation systems, and various heat pump products, including domestic, commercial, and industrial heat pumps.

Equipped with the most advanced production line and the 6 Pump Performance Comprehensive Laboratory" in China.20ITE recognized as a national high-tech enterprise, boasting 24 years of manufacturing experience.Currently, 50% of its products are exported to international market.

Our products have been awarded numerous certifications, including the Solar Keymark, CE,CCC,ISO9001, and ISO14001, and have been shipped to over 50 countries, such as Germany, the Holland, Poland, Finland, Brazil,Argentina,Australia, and Kenya.

Ensuring the highest level of customer satisfaction is our primary objective. We are committed to upholding the principles of"customer first, credit first" to establish and foster mutually beneficial cooperative relationships with clients worldwide.

Sidite makes your life green!
