SR500 Digital Display Solar Controller for Unpressurized Systems Auto/Manual Water Loading Timing Heating 18 Protection

SR500 Digital Display Solar Controller for Unpressurized Systems Auto/Manual Water Loading Timing Heating 18 Protection

SR500 | SOLAR CONTROLLER

Overview

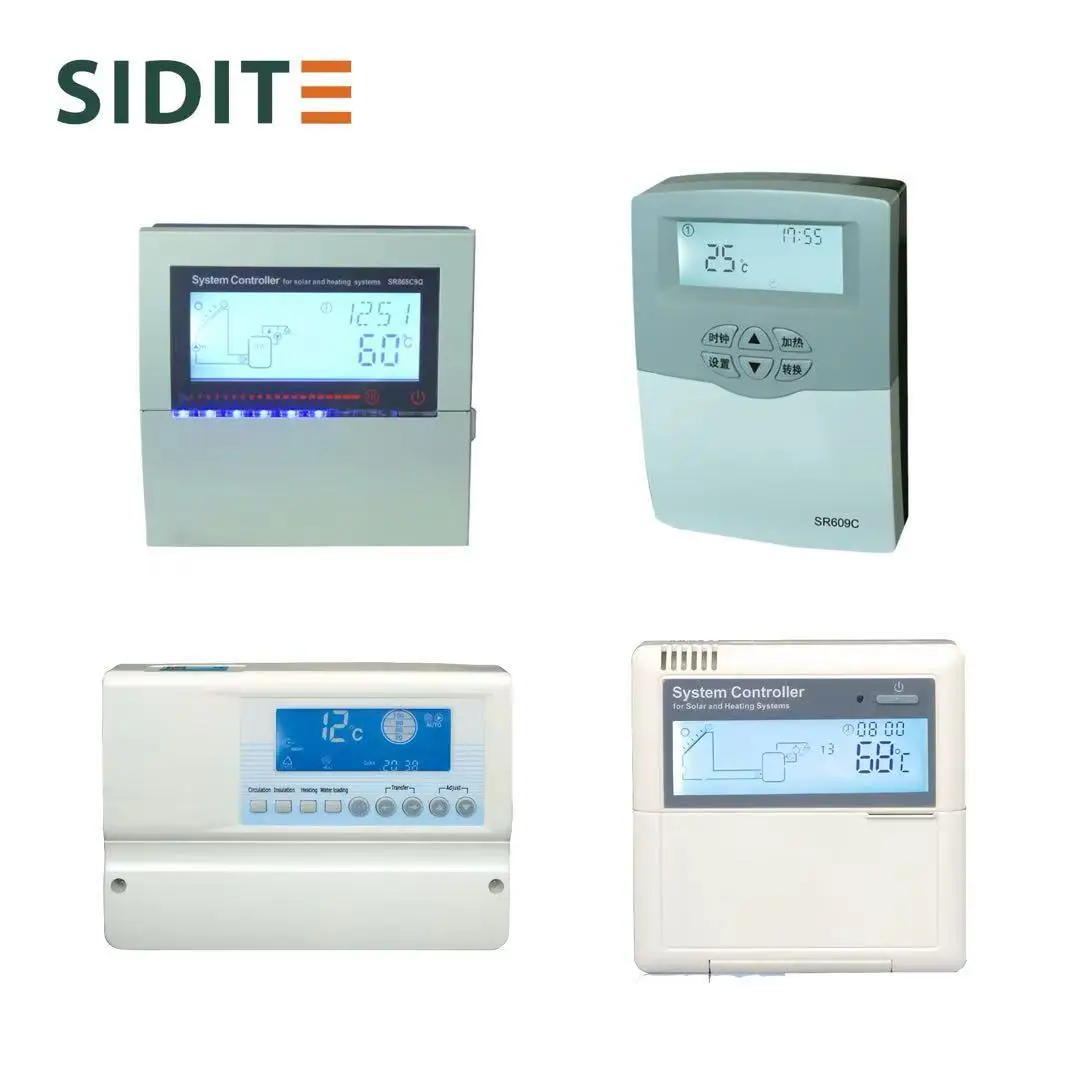

Recommended Products

Product Descirption

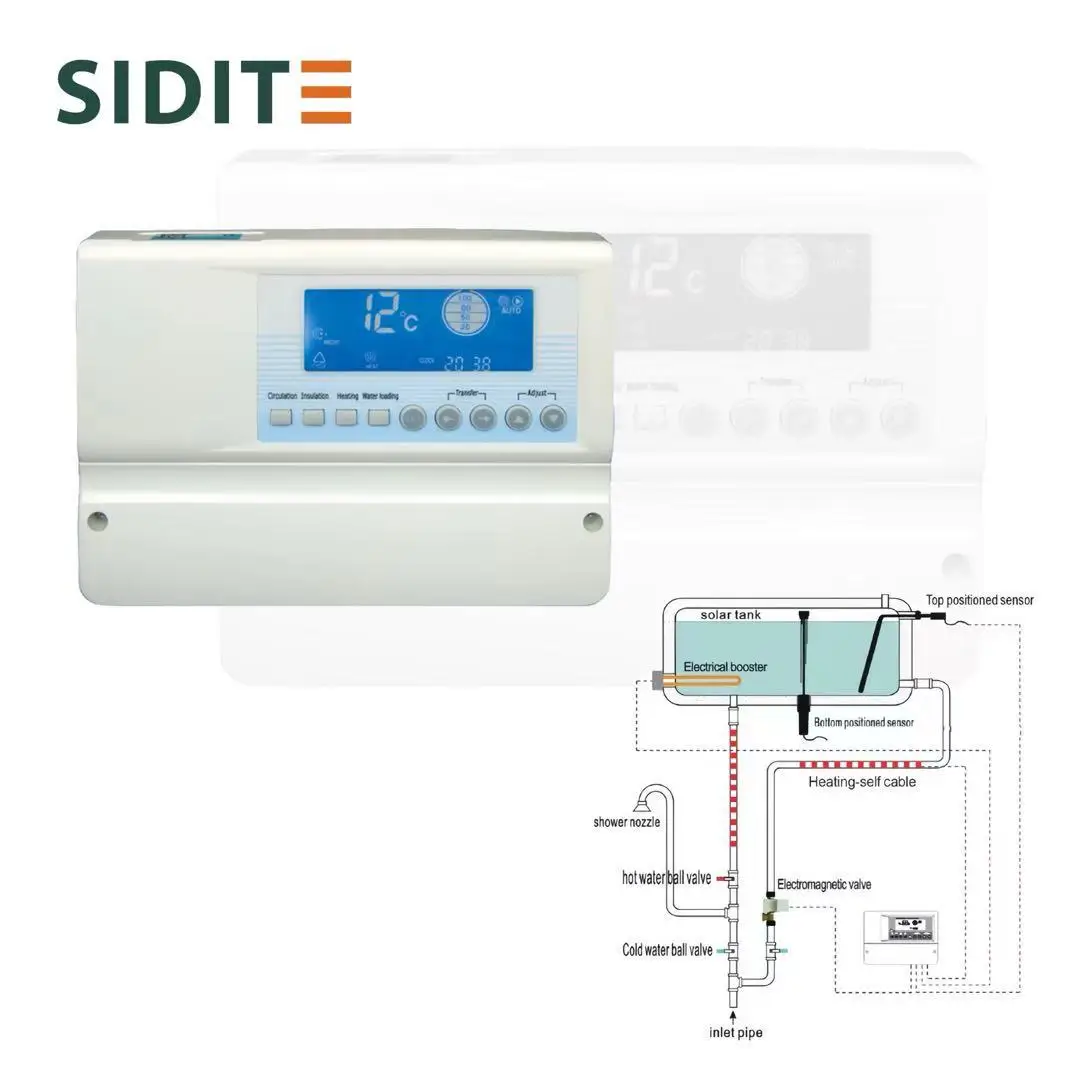

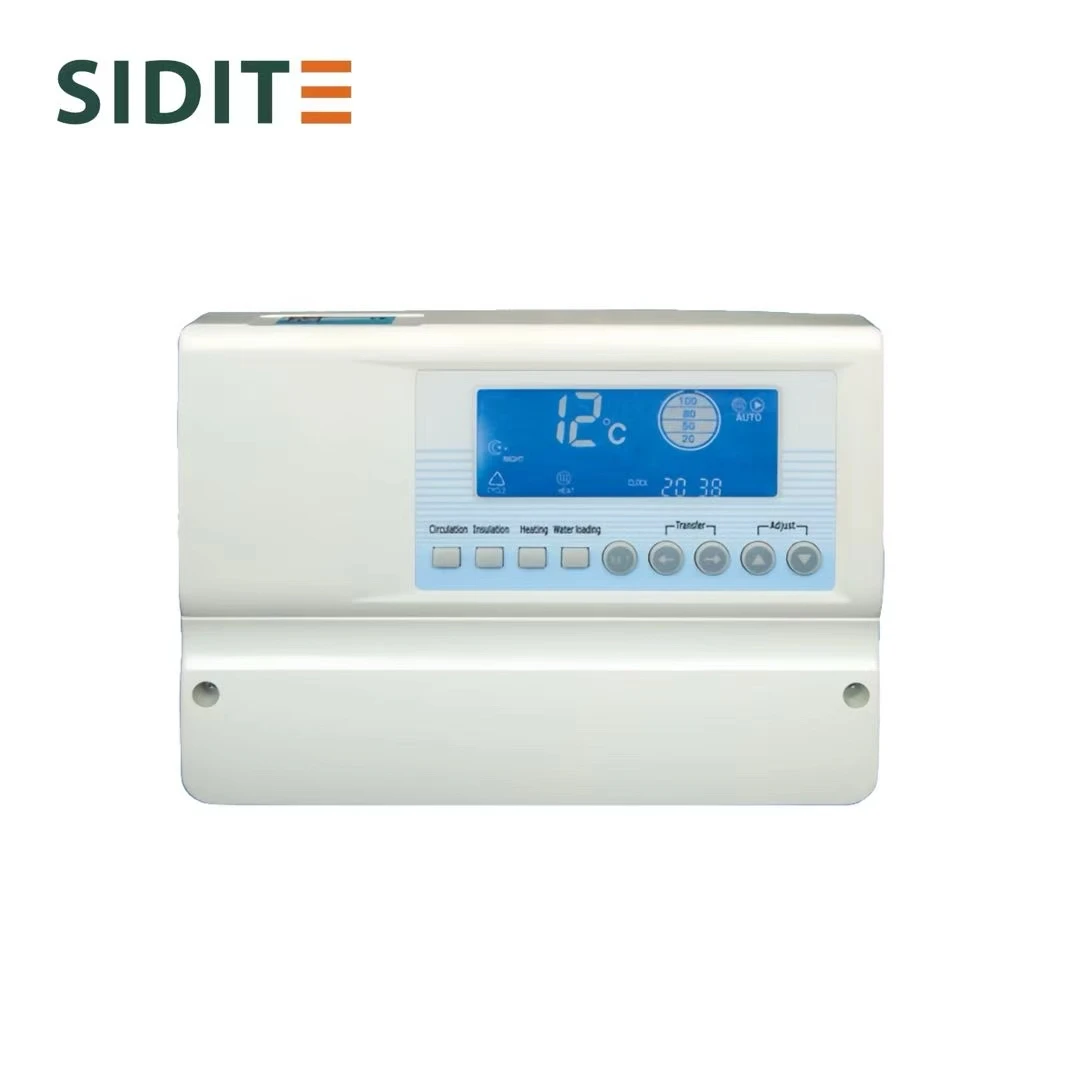

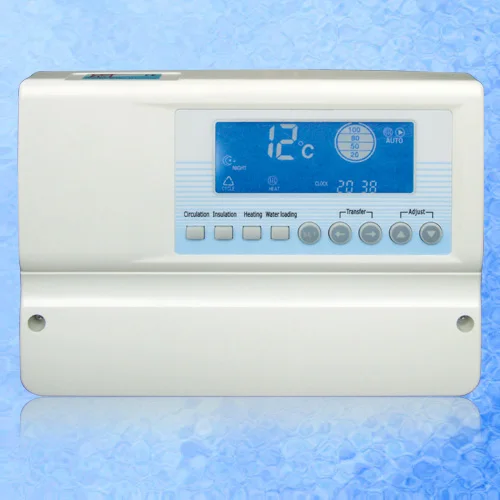

SR500 | SOLAR CONTROLLER

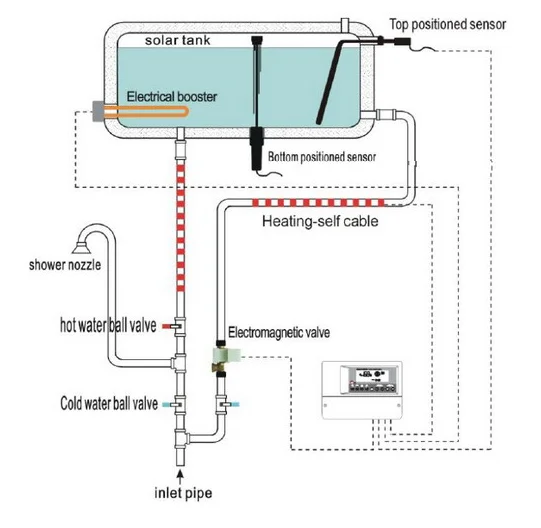

Introduce Suitable for integrated un-pressurized solar system Main functions 1、 Time display 2、 Water temperature display 3、 Water level display 4、 Auto mode 5、 Water level pre-setup 6、 Manual water loading 7、 Temperature controlled water loading 8、 Timing water loading 9、 Water loading when tank is lack of water 10、Compulsive water loading 11、Increasing Water pressure during water is loaded. 12、Manual heating 13、Timing heating 14、Hot water circulation 15、Hot water pipe insulation 16、Low pressure protection 17、Collector tube protection 18、Memory protection when power is failure

Main technical data

1、Dimension: 210 mm x 145mm x 40mm

2、Self power consumption: <3W

3、Measuring accuracy of temperature: ±2℃

4、Temperature range of measurement: 0～99℃

5、Maximum power of controlled pump: ≤600W

6、Power of accompanied electrical heating wire: ≤800W

7、Power of auxiliary electrical booster ≤2000W ( standard collocation)，≤3000W （not standard, selection available ）

8、Electromagnetic valve parameter: DC 12V, AC 220V, pressurized valve and un-pressurized valve are available for selection

※ operation pressure of pressurized valve: 0.02Mpa ~ 0.8Mpa，suitable for providing water directly

※operation pressure of un-pressurized valve: 0.0Mpa，connected with water tank or low pressure water providing

Detailed Images

SR500 Digital Display Solar Controller for Unpressurized Systems Auto/Manual Water Loading Timing Heating 18 Protection factory

SR500 Digital Display Solar Controller for Unpressurized Systems Auto/Manual Water Loading Timing Heating 18 Protection supplier

SR500 Digital Display Solar Controller for Unpressurized Systems Auto/Manual Water Loading Timing Heating 18 Protection details
