SP-C Solar Water Heater 55mm High Pressure Copper Coil Heat Exchanger Easy Installation Flat Outdoor Water Heater Freestanding

SP-C Solar Water Heater 55mm High Pressure Copper Coil Heat Exchanger Easy Installation Flat Outdoor Water Heater Freestanding

SP-C | Pre-hrated Solar Water Heater

Overview
Recommended Products

Product Descirption

SP-C | Pre-hrated Solar Water Heater

The characteristic:

1. lt takes the advantage of the tap water's pressure.
2.Completely automatic operation.
3. The water can be heated rapidly.
4.Use the copper coil as the heat exchanger, simply install and use.
5. No risk for corrosion or scale deposit, best option for inferiority water area.
6. Easy to install for flat roof and pitched roof, auxiliary heating by electrical heater.
7.High pressure polyurethane foaming with thickness 55mm.

Model	SP-C-15	SP-C-18	SP-C-20	SP-C-24	SP-C-25	SP-C-30
Tube Quantity(pcs)	15	18	20	24	25	30
Water Tank
Net Capacity (L)	120	140	155	185	195	230
Gross Capacity(L)	155	185	205	245	255	305
Material Of Inner Tank(mm)	SUS304-2B/SUS316L
Material Of Outer Tank	SUS304/Color Steel Plate
Material Of Insulation	Polyurethane

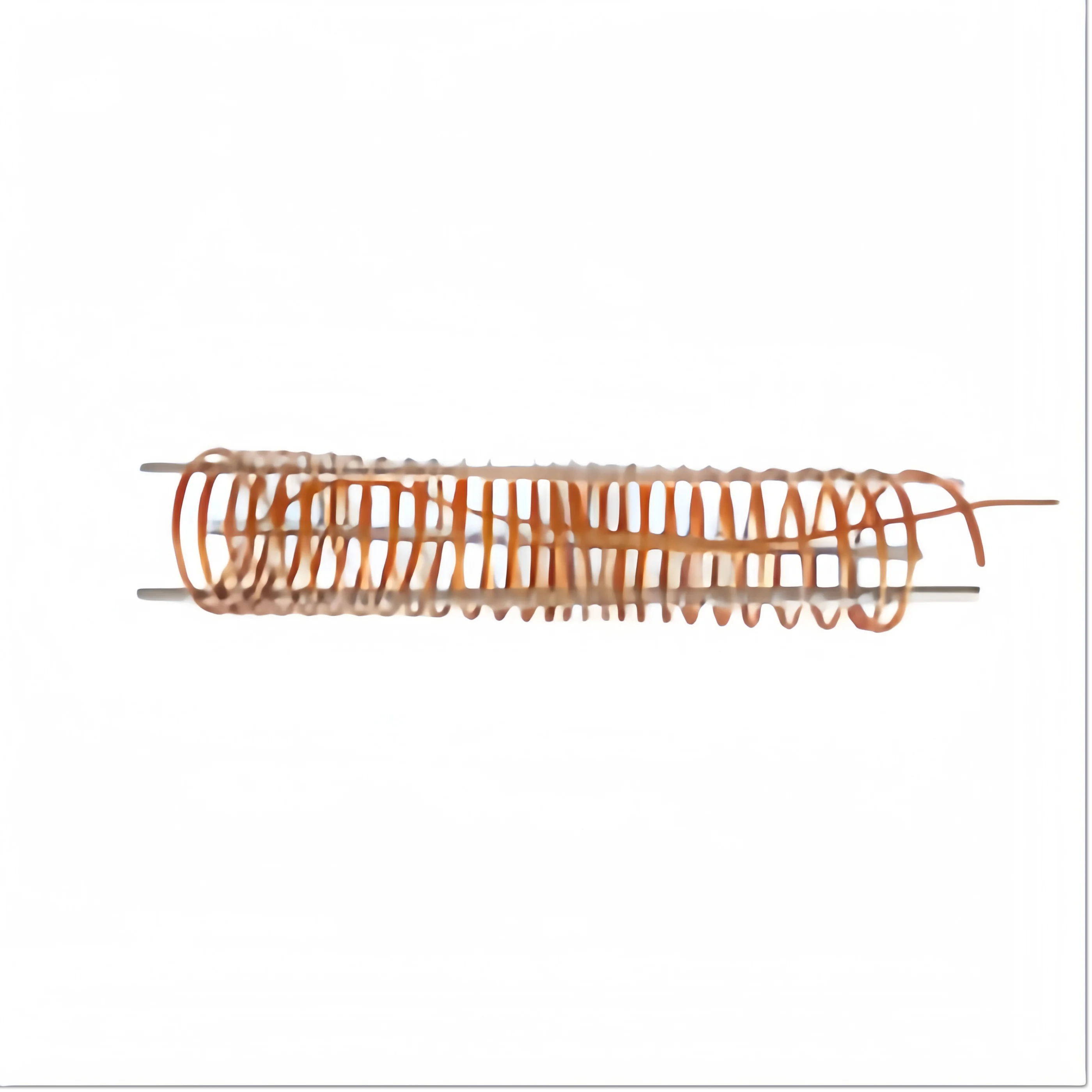

Heat-Transfer Coil
Coil Material	Copper/SUS304
Coil Diameter(mm)	φ12/φ20
Heat Transfer Area (m²)	0.75/1.50	1.13/2.26	1.13/2.26	1.32/2.64	1.32/2.64	1.32/2.64

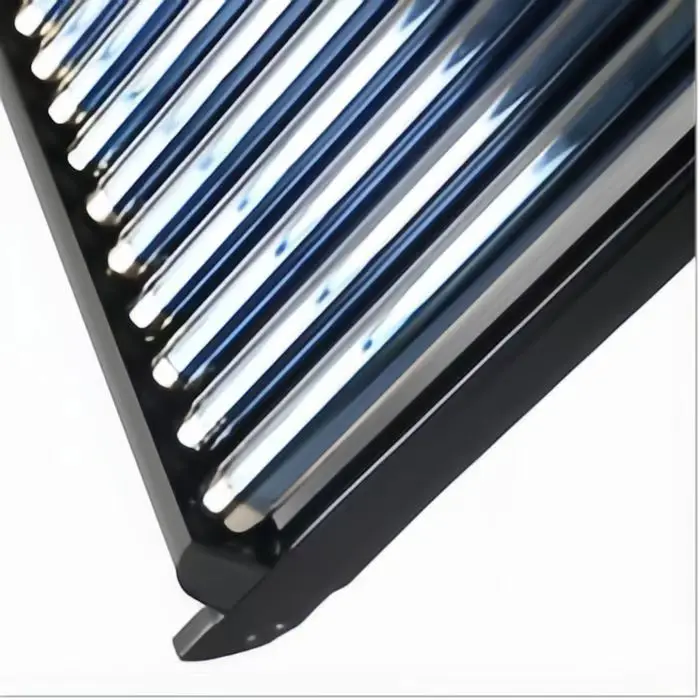

Vacuum Tube
Diameter/Length (mm)	φ58/φ1800
Material	High Borosilicate Glass3.3
Frame	2 Feets(Left-To-Right)					3 Feets(Left-Middle-Right)
Material	Galvanized Steel
Angle	45°
ltem Size
A(mm)	1310	1535	1685	1985	2060	2435
B(mm)	1110	1335	1485	1785	1860	2235
C(mm)	1700	1700	1700	1700	1700	1700
C/2(mm)	——	——	— —	892.5	930	1255
D (mm)	1430	1430	1430	1430	1430	1430

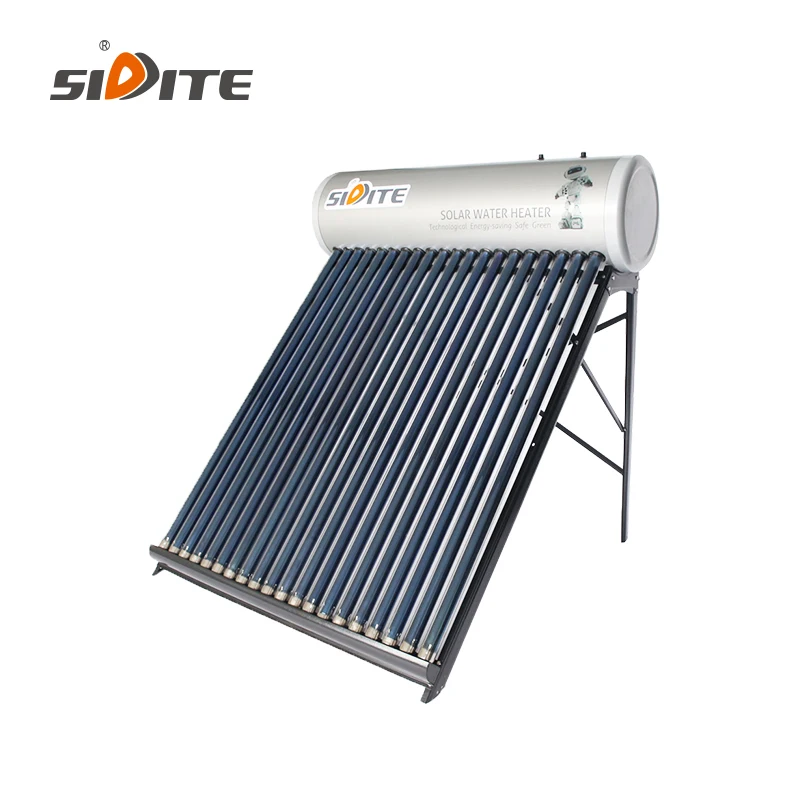

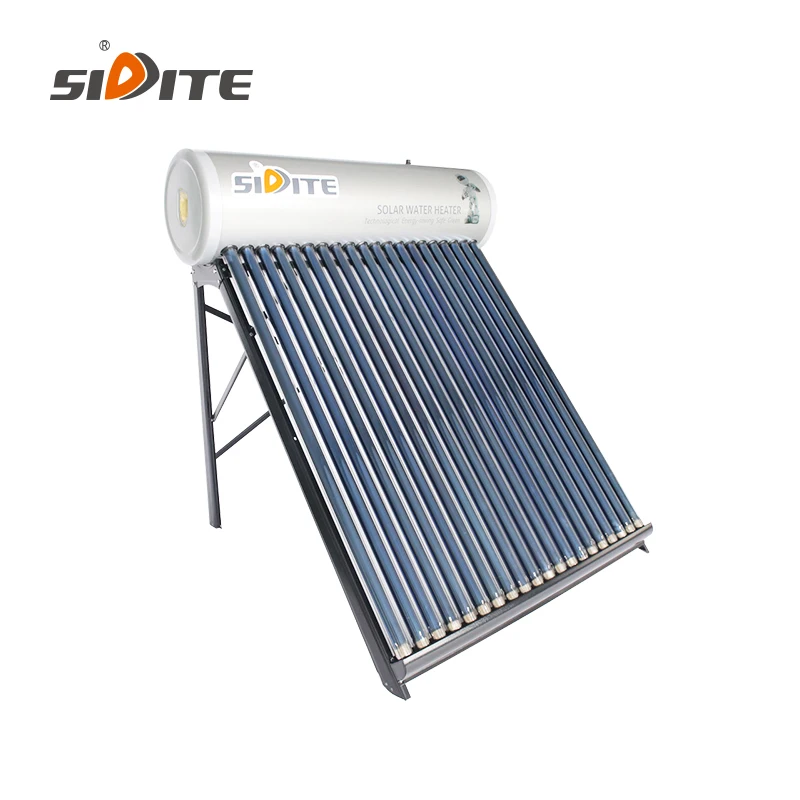

Detailed Images

SP-C Solar Water Heater 55mm High Pressure Copper Coil Heat Exchanger Easy Installation Flat Outdoor Water Heater Freestanding supplier

SP-C Solar Water Heater 55mm High Pressure Copper Coil Heat Exchanger Easy Installation Flat Outdoor Water Heater Freestanding factory

SP-C Solar Water Heater 55mm High Pressure Copper Coil Heat Exchanger Easy Installation Flat Outdoor Water Heater Freestanding manufacture

SP-C Solar Water Heater 55mm High Pressure Copper Coil Heat Exchanger Easy Installation Flat Outdoor Water Heater Freestanding details
