SDT-GY High-Capacity 48.6-238KW Scroll Compressor R410A Commercial Industrial Heating Cooling Large-Scale Heat Pump Households

SDT-GY High-Capacity 48.6-238KW Scroll Compressor R410A Commercial Industrial Heating Cooling Large-Scale Heat Pump Households

SDT-GY | Commercial Swimming Pool Heat Pump

Overview
Recommended Products

Product Descirption

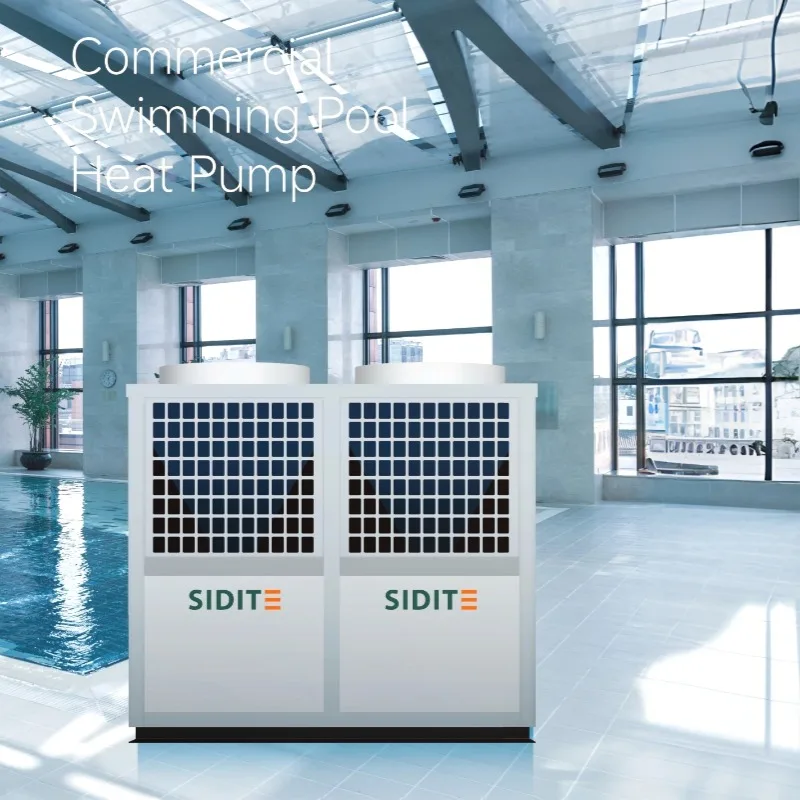

SDT-GY | Commercial Swimming Pool Heat Pump

Detailed Images

Model Name

SDT-G5Y

SDT-G6Y

SDT-G8Y

SDT-G10Y

Rated heating capacity

22.5

26.2

40.5

Rated cooling capacity

15.7

18.3

23.5

Input power KW

4.24

5.12

6.15

7.68

COP

W/W

5.31

5.12

5.2

5.27

Voltage

V/Hz

380V-400V/50Hz/3phase

Heating water temperature

℃

Rated temperature:26℃~28℃，Max temperature:40℃

Cooling water temperature

℃

Rated temperature:12℃~15℃，Min temperature:10℃

Water flow

m³h

8.70

13.00

17.50

Refrigeration

R410A

Control mode

Microcomputer central processor(line control)

Compressor

Form

Scroll type

Quantity

Brand

Copeland

Unit

Net size

830*830*1100

1520*800*1235

Weight

125.00

138.00

250.00

265.00

Nosie level

dB(A)

<55

<60

Fan

Form

Internal rotor motor, ABS plastic/ Metal leaves

Inlet pipe diameter

1.5"

Outlet pipe diameter

1.5"

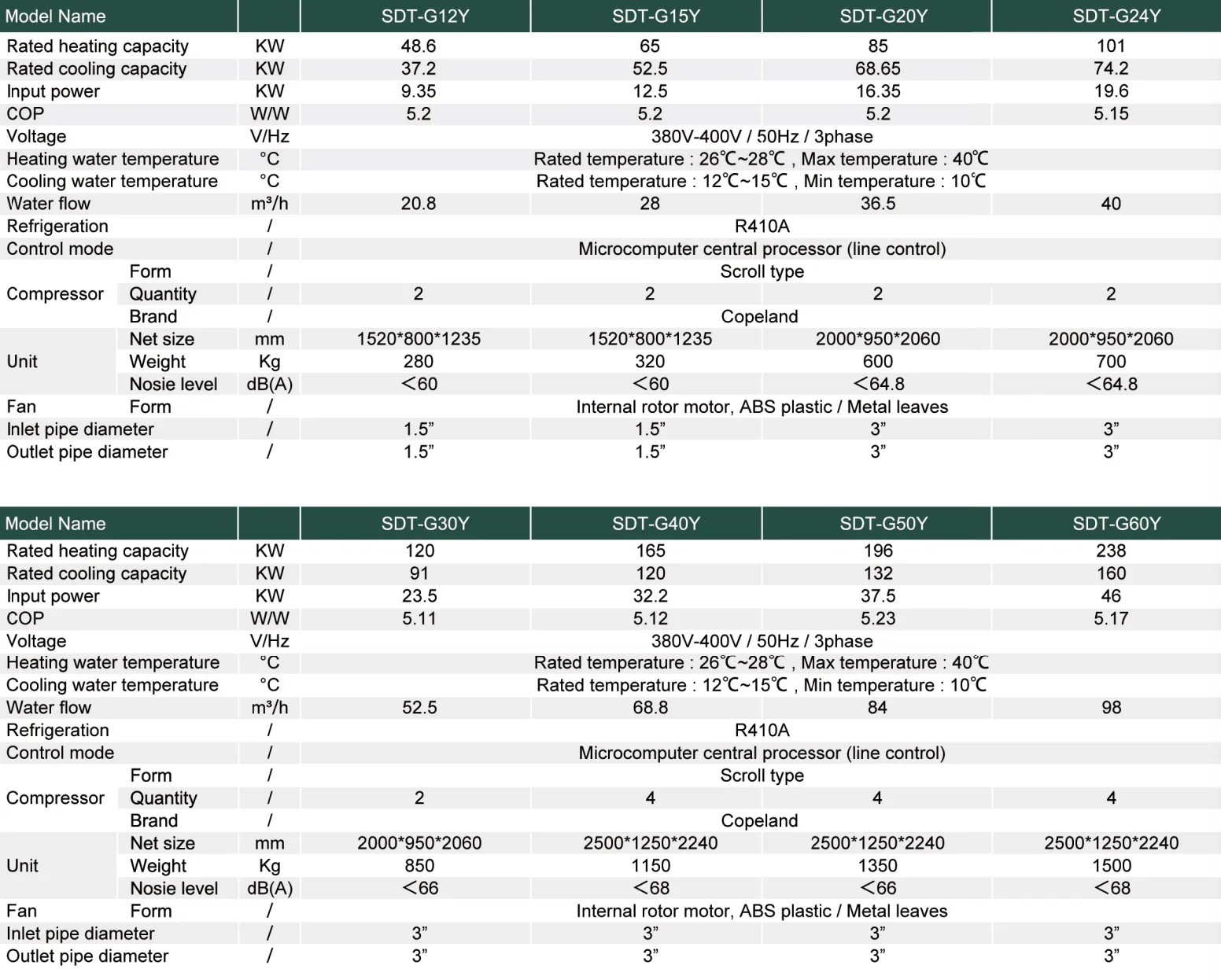

Model Name

SDT-G12Y

SDT-G15Y

SDT-G20Y

SDT-G24Y

Rated heating capacity

48.60

65.00

85.00

101.00

Rated cooling capacity

37.20

52.50

68.65

74.20

Input power KW

9.35

12.50

16.35

19.60

COP

W/W

5.20

5.15

Voltage

V/Hz

380V-400V/50Hz/3phase

Heating water temperature

℃

Rated temperature:26℃~28℃，Max temperature:40℃

Cooling water temperature

℃

Rated temperature:12℃~15℃，Min temperature:10℃

Water flow

m³h

20.80

28.00

36.50

40.00

Refrigeration

R410A

Control mode

Microcomputer central processor(line control)

Compressor

Form

Scroll type

Quantity

Brand

Copeland

Unit

Net size

1520*800*1235

2000*950*2060

Weight

280.00

320.00

600.00

700.00

Nosie level

dB(A)

<60

<64.8

Fan

Form

Internal rotor motor, ABS plastic/ Metal leaves

Inlet pipe diameter

1.5"

Outlet pipe diameter

1.5"

Model Name

SDT-G30Y

SDT-G40Y

SDT-G50Y

SDT-G60Y

Rated heating capacity

120

165

196

238

Rated cooling capacity

120

132

160

Input power KW

23.5

32.2

37.5

COP

W/W

5.11

5.12

5.23

5.17

Voltage

V/Hz

380V-400V/50Hz/3phase

Heating water temperature

℃

Rated temperature:26℃~28℃，Max temperature:40℃

Cooling water temperature

℃

Rated temperature:12℃~15℃，Min temperature: 10℃

Water flow

m³h

52.5

68.8

Refrigeration

R410A

Control mode

Microcomputer central processor(line control)

Compressor

Form

Scroll type

Quantity

Brand

Copeland

Unit

Net size

2000*950*2060

2500*1250*2240

Weight

850

1150

1350

1500

Nosie level

dB(A)

<66

<68

<66

<68

Fan

Form

Internal rotor motor, ABS plastic/ Metal leaves

Inlet pipe diameter

Outlet pipe diameter

SDT-GY High-Capacity 48.6-238KW Scroll Compressor R410A Commercial Industrial Heating Cooling Large-Scale Heat Pump Households details
