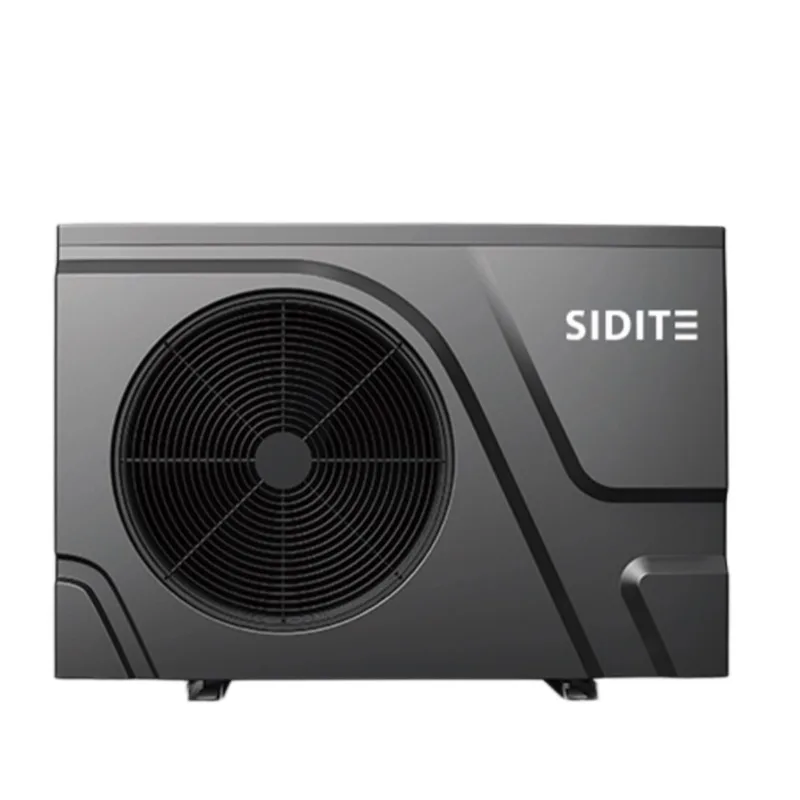

SDT-PBY-32 High Efficiency 16.3KW Pool Heater R32 Twin-Rotary DC Inverter Compressor Low Noise ABS Electric Heat Pump Household

SDT-PBY-32 High Efficiency 16.3KW Pool Heater R32 Twin-Rotary DC Inverter Compressor Low Noise ABS Electric Heat Pump Household

SDT-PBY-32 | R32 DC Inverter Swimming Pool Heat Pump

Overview
Recommended Products

Product Descirption

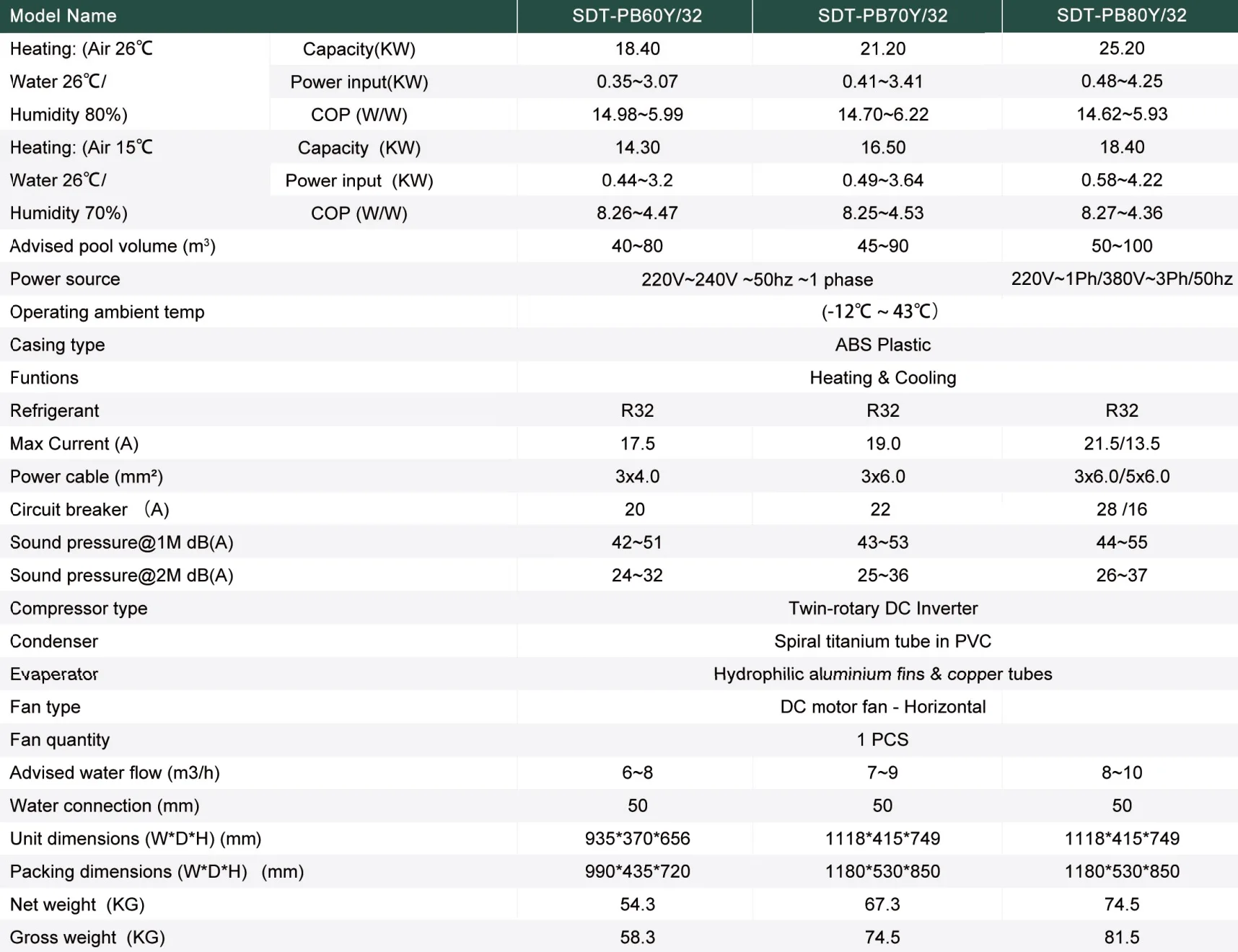

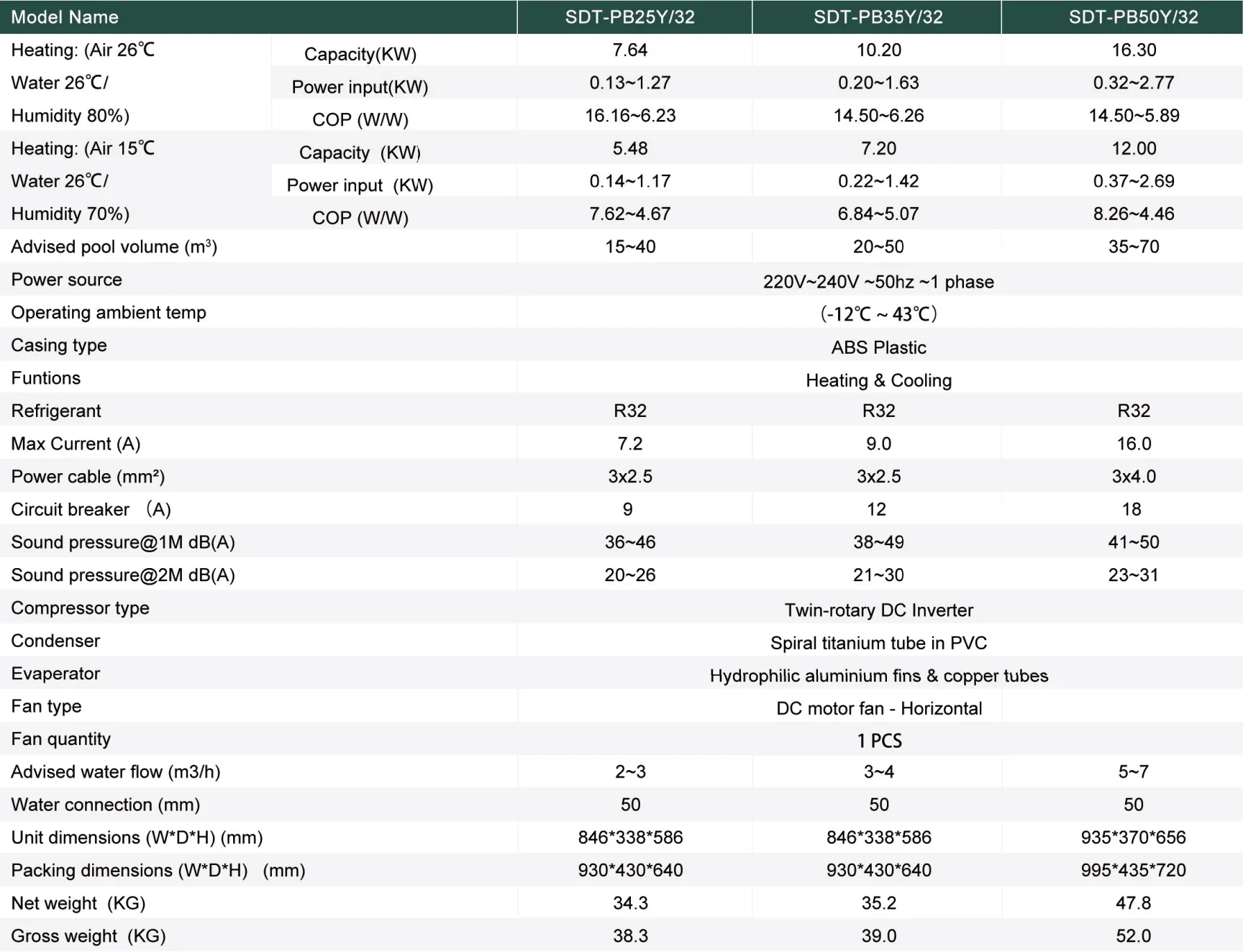

SDT-PBY-32 | R32 DC Inverter Swimming Pool Heat Pump

Model

SDT-PB25Y/32

SDT-PB35Y/32

SDT-PB50Y/32

SDT-PB60Y/32

SDT-PB70Y/32

SDT-PB80Y/32

Heating: (Air 26℃Water 26℃/ 80%)Humidity

Capacity (KW)

7.64

10.2

16.3

18.4

21.2

25.2

Power input (KW)

0.13~1.27

0.20~1.63

0.32~2.77

0.35~3.07

0.41~3.41

0.48~4.25

COP (W/W)

16.16~6.23

14.50~6.26

14.50~5.89

14.98~5.99

14.70~6.22

14.62~5.93

Heating: (Air 15℃Water 26℃/ 70%)Humidity

Capacity (KW)

5.48

7.2

14.3

16.5

18.4

Power input (KW)

0.14~1.17

0.22~1.42

0.37~2.69

0.44~3.2

0.49~3.64

0.58~4.22

COP (W/W)

7.62~4.67

6.84~5.07

8.26~4.46

8.26~4.47

8.25~4.53

8.27~4.36

Advised pool volume (m3)

15~40

20~50

35~70

40~80

45~90

50~100

Power source

220V~240V ~50hz~1 phase

220V~1Ph/380V~3Ph/50hz

Operating ambient temp

（-12℃ ~ 43℃）

Casing type

ABS Plastic

Funtions

Heating & Cooling

Refrigerant

R32

Max Current (A)

7.2

9.0

16.0

17.5

19.0

21.5/13.5

Power cable (mm2)

3x2.5

3x4.0

3x6.0

3x6.0/5x6.0

Circuit breaker(A)

28 /16

Sound pressure@1M dB(A)

36~46

38~49

41~50

42~51

43~53

44~55

Sound pressure@2M dB(A)

20~26

21~30

23~31

24~32

25~36

26~37

Compressor type

Twin-rotary DC Inverter

Condenser

Spiral titanium tube in PVC

Evaperator

Hydrophilic aluminium fins & copper tubes

Fan type

DC motor fan - Horizontal

Fan quantity

1 pcs

Advised water flow (m3/h)

2~3

3~4

5~7

6~8

7~9

8~10

Water connection (mm)

Unit dimensions (W*D*H) (mm)

846*338*586

935*370*656

1118*415*749

Packing dimensions (W*D*H)(mm)

930*430*640

995*435*720

990*435*720

1180*530*850

Net weight (KG)

34.3

35.2

47.8

54.3

67.3

74.5

Gross weight (KG)

38.3

39.0

52.0

58.3

74.5

81.5

Detailed Images

SDT-PBY-32 High Efficiency 16.3KW Pool Heater R32 Twin-Rotary DC Inverter Compressor Low Noise ABS Electric Heat Pump Household factory

SDT-PBY-32 High Efficiency 16.3KW Pool Heater R32 Twin-Rotary DC Inverter Compressor Low Noise ABS Electric Heat Pump Household manufacture

About Us

SDT-PBY-32 High Efficiency 16.3KW Pool Heater R32 Twin-Rotary DC Inverter Compressor Low Noise ABS Electric Heat Pump Household details

SIDTE Energy Co., Ltd

SIDITE Energy Co., Ltd., founded in 2000, is located in JiaXing City, Zhejiang Province.
The company specializes in the production of solar water heaters, solar collectors, solar power generation systems, and various heat pump products, including domestic, commercial, and industrial heat pumps.

Equipped with the most advanced production line and the 6 Pump Performance Comprehensive Laboratory" in China.20ITE recognized as a national high-tech enterprise, boasting 24 years of manufacturing experience.Currently, 50% of its products are exported to international market.

Our products have been awarded numerous certifications, including the Solar Keymark, CE,CCC,ISO9001, and ISO14001, and have been shipped to over 50 countries, such as Germany, the Holland, Poland, Finland, Brazil,Argentina,Australia, and Kenya.

Ensuring the highest level of customer satisfaction is our primary objective. We are committed to upholding the principles of"customer first, credit first" to establish and foster mutually beneficial cooperative relationships with clients worldwide.

Sidite makes your life green!
