SE-N｜SOLAR VACUUM TUBES

Detailed Product Description: Just like an automobile engine,the computer CPU,vacuum tube is the core component of the solar water heater. Its performance lies on the actual film coating technology. SIDITE Company adopted a new graded coating technology of Qinghua University,and tube raise the heat.

Technical Data：
Tube structure			All-glass double-tube co-axial structure
Glass material			Borosilicate 3.3glass
Outer tube diameter and glass thickness			Φ=47±0.7mm &=1.6mm ±0.15mm
				Φ=58±0.7mm &=1.6mm ±0.15mm
				Φ=70±0.7mm &=2.0mm ±0.15mm
Inter tube diameter and glass thickness			Φ=37±0.7mm &=1.6mm ±0.15mm
				Φ=47±0.7mm &=1.6mm ±0.15mm
				Φ=58±0.7mm &=1.6mm ±0.15mm
Tube length			1200mm,1500mm,1600mm, 1800mm,1900mm ,2000mm , 2100mm
Absorber coating	Coating material	AL-ALN
		Sediment method	Single Targets magnetron sputtering plating
		Absorptivity	a:0.88~0.90(AM1.5)
		Emittance	ε≤7.5% (80°C±5°C)
Vacuum degree			P ≤5.0×10-3 Pa
Transmittance of glass tube			T ≥0.89(AM1.5 ISO9806-1:1994)
Stagnation parameter			Y ≥200 m²°C/kw
Average heat loss			ULT:0.65~0.75W/(m²*°C)
Hail resistance			Φ25 mm
Pressure-endure			0.6 Mpa

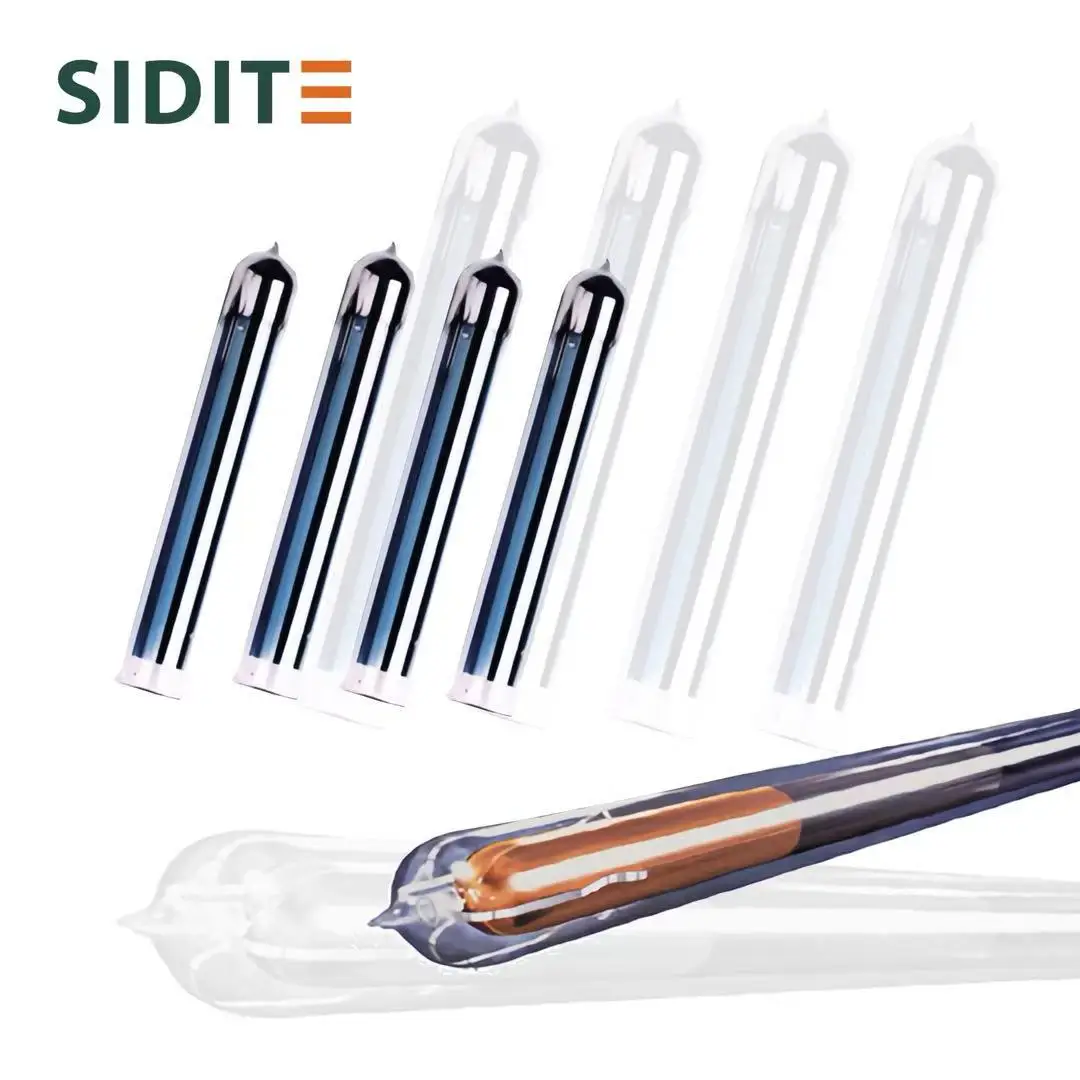

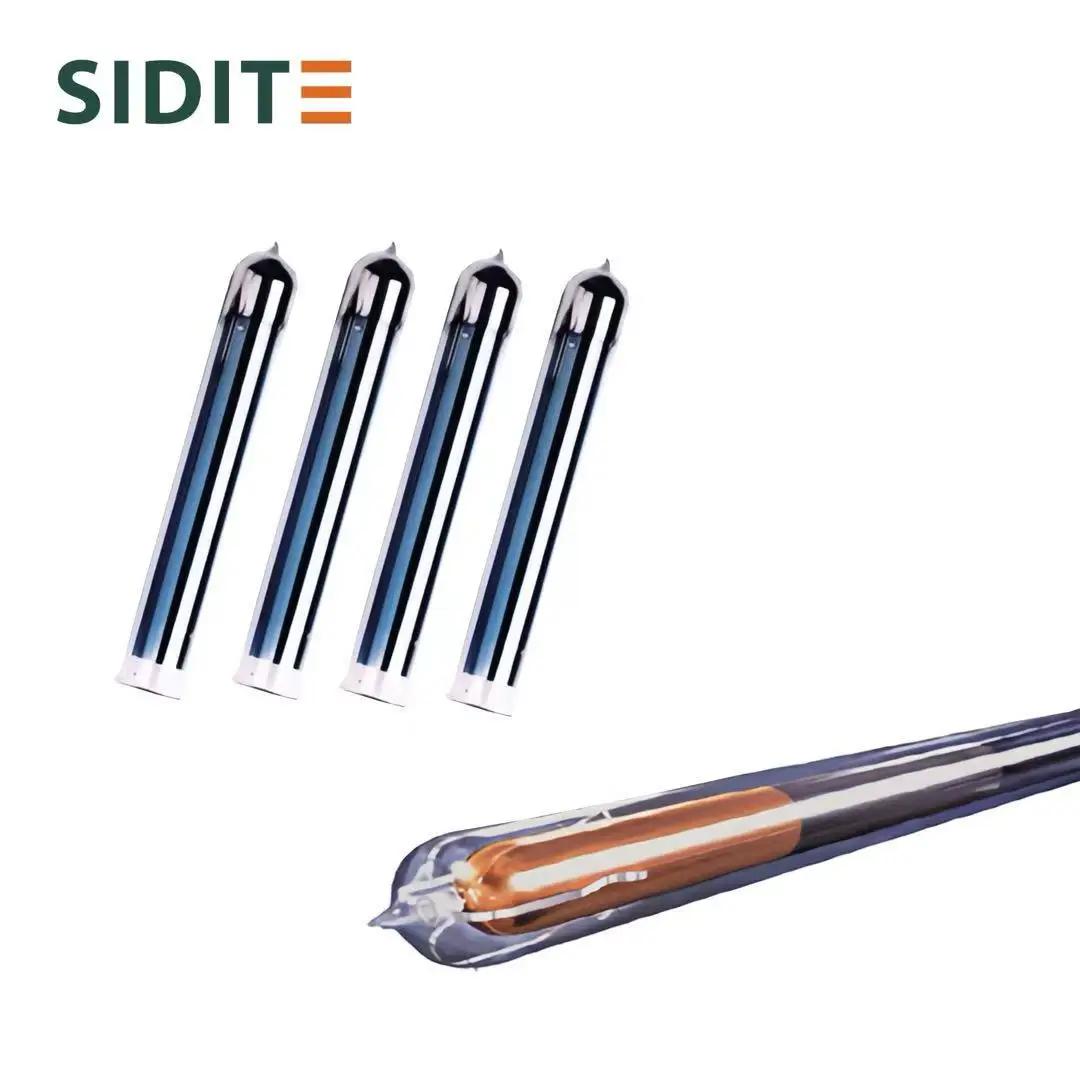

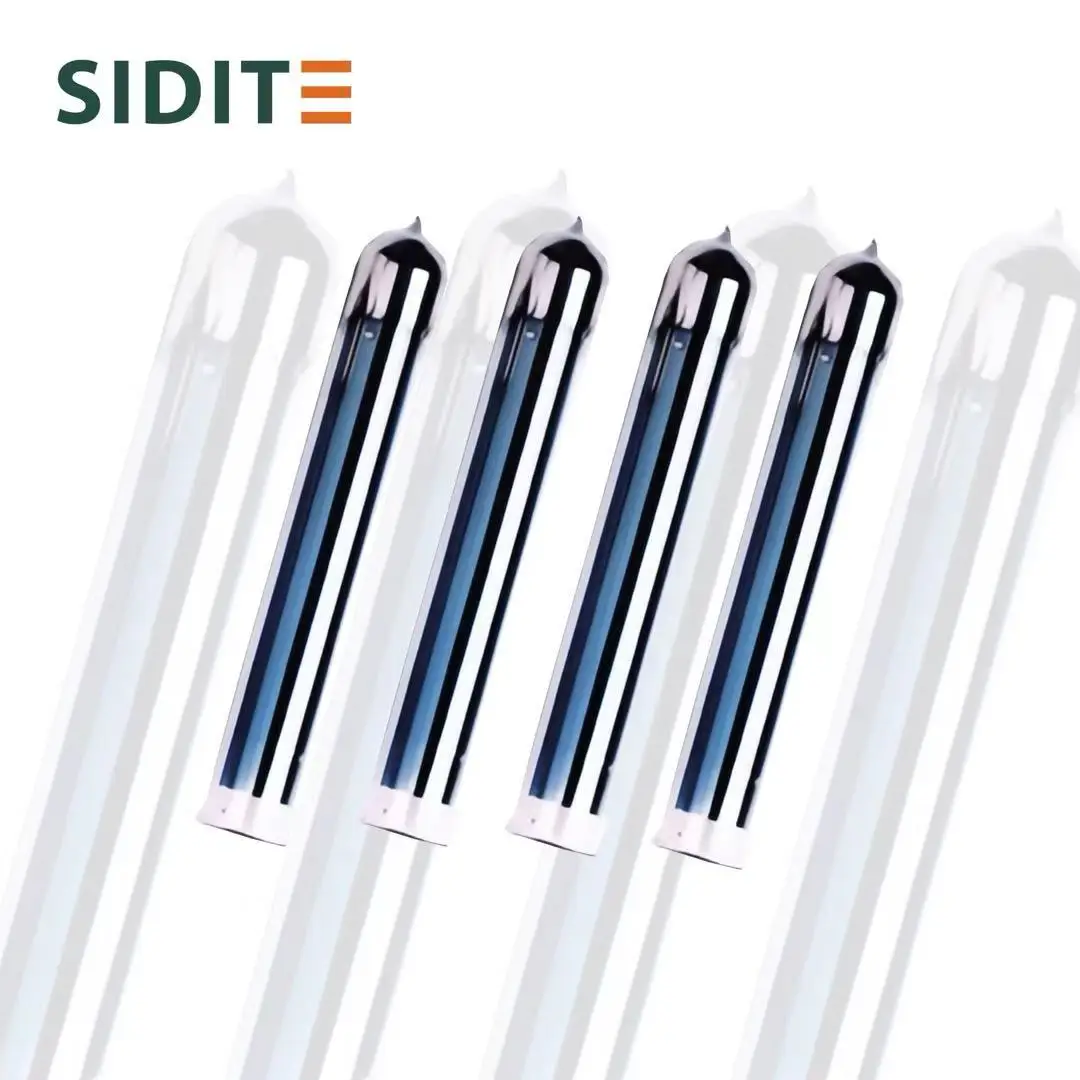

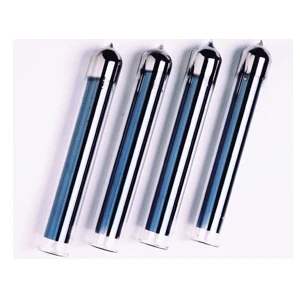

Detailed Images

SE-N Solar Vacuum Tubes Advanced Graded Coating Technology for High-Efficiency Heat Absorption Core Component for Water Heaters supplier

SE-N Solar Vacuum Tubes Advanced Graded Coating Technology for High-Efficiency Heat Absorption Core Component for Water Heaters factory
