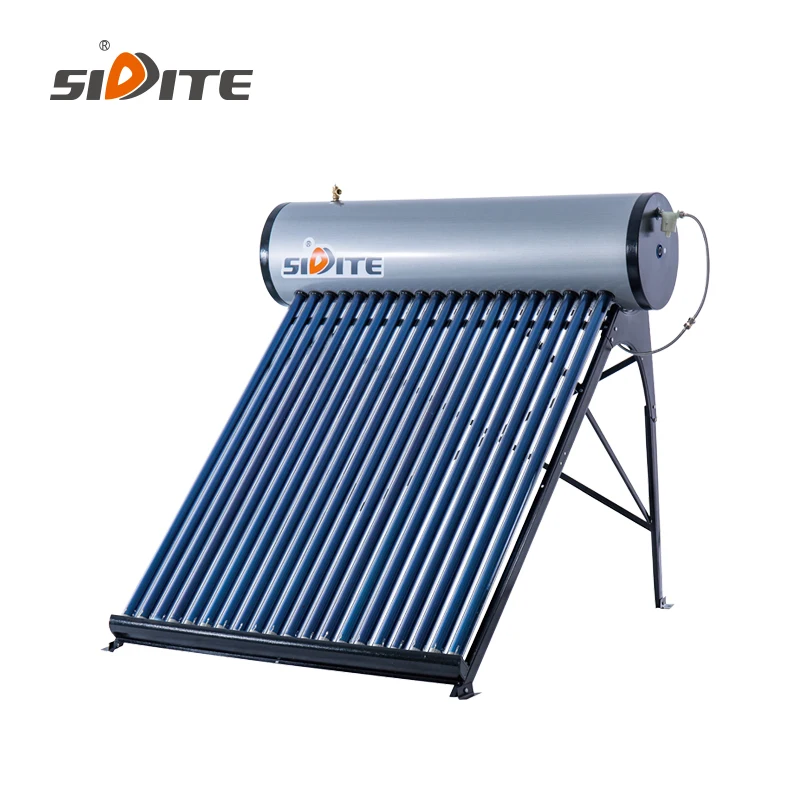

SD-P Automatic Solar Water Heater Double Pressurized Inner Tanks Rapid Heating Non-Pressurized Heat Exchanger for Hotels Outdoor

SD-P Automatic Solar Water Heater Double Pressurized Inner Tanks Rapid Heating Non-Pressurized Heat Exchanger for Hotels Outdoor

SD-P | Pressurized Double Inner Tank Solar Water Heater

Overview
Recommended Products

Product Descirption

SD-P | Pressurized Double Inner Tank Solar Water Heater

The characteristic:

1. There are double inner tanks.
2. It takes the advantage of the tap water's pressure.
3. Completely automatic operation.
4. The water can be heated rapidly.
5. Use the non-pressurized inner tank as the heat exchanger,simple to install and use.
6. Directly connected with city water without a circulation pump.
7. Working pressure (0.6MPa)

Model	SD-P-15	SD-P-20	SD-P-25	SD-P-30
Tube Quantity(pcs)	15	20	25	30
Water Tank
Net Capacity(L)	130	165	205	240
Gross Capacity(L)	165	215	265	315
Diamater Of Inner/Outer Tank(mm)	φ360/φ470
Length Of Outer Tank L(mm)	1380	1755	2130	2505
Length Of Middle Tank L(mm)	1290	1665	2040	2415
Length Of Inner Tank L(mm)	1250	1625	2000	2375
Material Of Outer Tank	Color Steel
Material Of Middle Tank	SUS304
Material Of Inner Tank	SUS304
Material Of Insulation	Polyurethane
Vacuum Tube
Diameter/Length(mm)	φ58/1800
Material	High Borosilicate Glass3.3
Frame	2 Feets(Left-To-Right)		3 Feets(Left-Middle-Right)
Material	Stainless Steel/Galvanized Steel
Angle	45°
ltem Size
A(mm)	1380	1755	2130	2505
B(mm)	1110	1485	1860	2235
C(mm)	1750	1750	1750	1750
C/2(mm)	/	/	930	117.5
D(mm)	1600	1600	1600	1600

Detailed Images

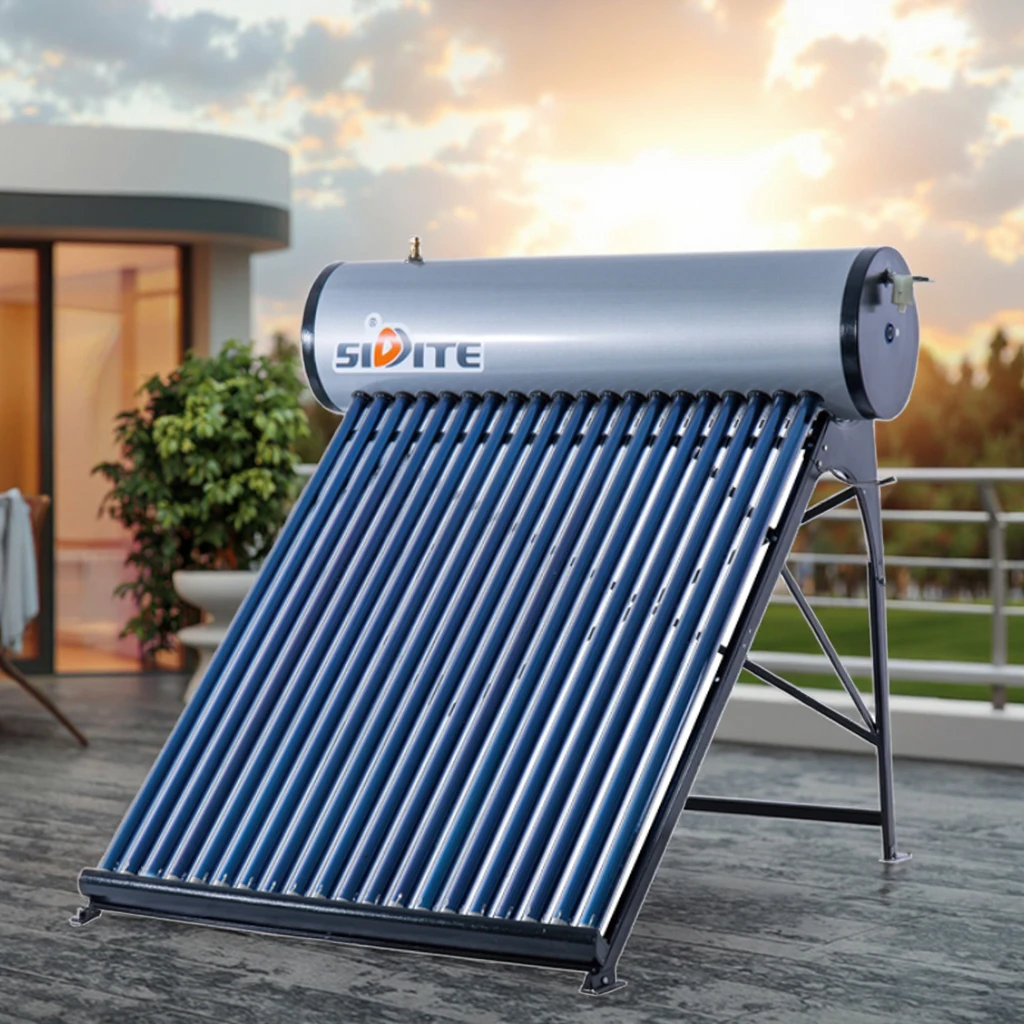

SD-P Automatic Solar Water Heater Double Pressurized Inner Tanks Rapid Heating Non-Pressurized Heat Exchanger for Hotels Outdoor details

SD-P Automatic Solar Water Heater Double Pressurized Inner Tanks Rapid Heating Non-Pressurized Heat Exchanger for Hotels Outdoor supplier
