SDT-BII-R32 12.5KW High Efficiency Air Source Heat Pump Heater Mitsubishi Inverter Compressor Eco-Friendly R32 Refrigerant Quiet

SDT-BII-R32 12.5KW High Efficiency Air Source Heat Pump Heater Mitsubishi Inverter Compressor Eco-Friendly R32 Refrigerant Quiet

Overview
Recommended Products

Product Descirption

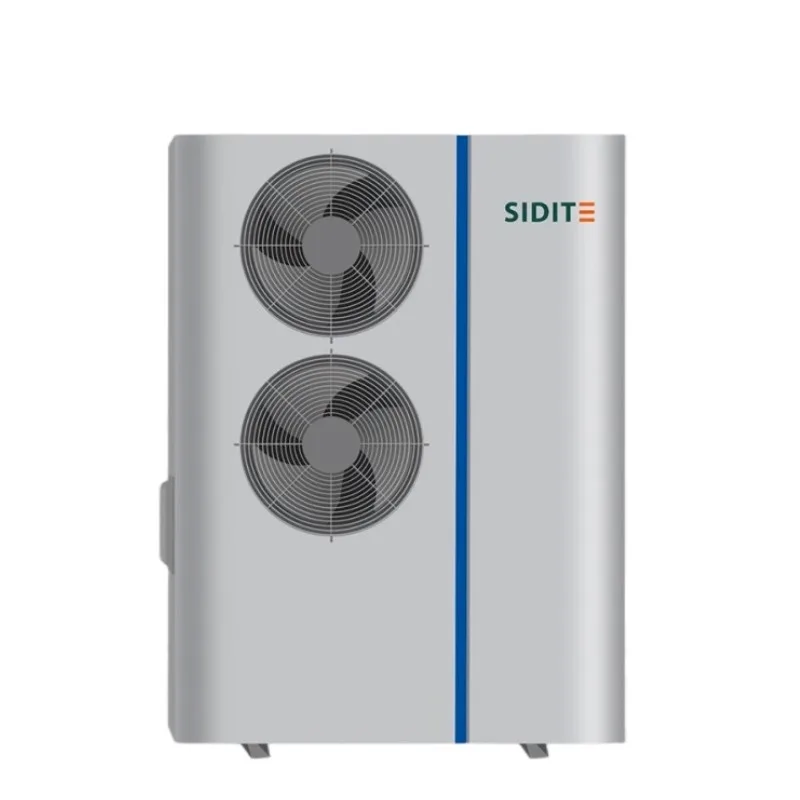

SDT-BII-R32 | DC Inverter Household All In One Heat Pump

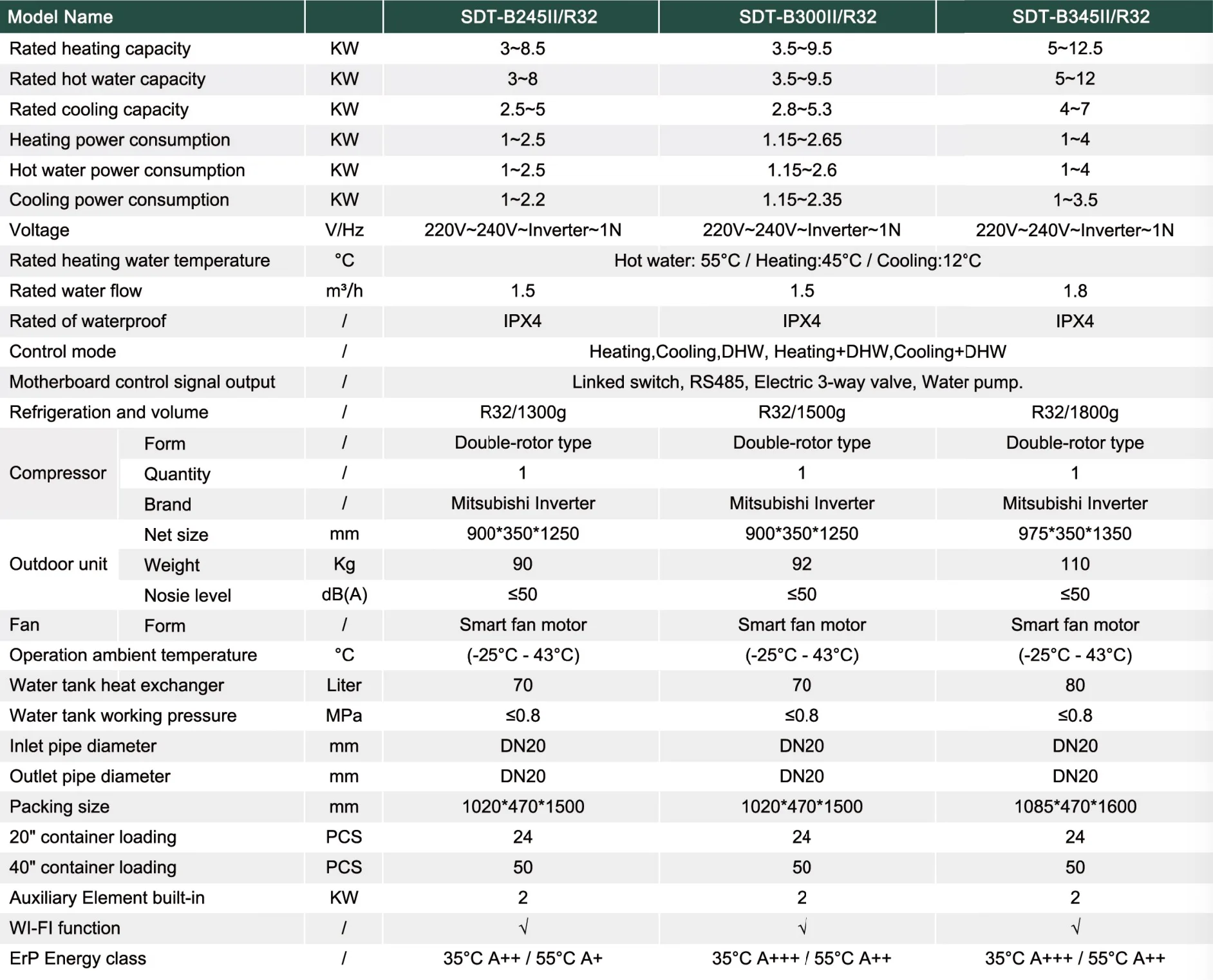

Model Name				SDT-B245II/R32	SDT-B300II/R32	SDT-B345II/R32
Rated heating capacity			kW	3.0~8.5	3.5~9.5	5.0~12.5
Rated hot water capacity			kW	3.0~8.0	3.5~9.5	5.0~12.0
Rated cooling capacity			kW	2.5~5.0	2.8~5.3	4.0~7.0
Heating power consumption			kW	1.0～2.5	1.15~2.65	1.5～4.0
Hot water power consumption			kW	1.0～2.5	1.15~2.6	1.5～4.0
Cooling power consumption			kW	1.0～2.2	1.15~2.35	1.5～3.5
Voltage			V/Hz	220V-240V - Inverter- 1N	220V-240V - Inverter- 1N	220V-240V - Inverter- 1N
Rated heating water temperature			°C	Hot water: 55℃ / Heating:45℃ / Cooling:12℃
Rated water flow			m³/h	1.5	1.5	1.8
Rated of waterproof			/	IPX4	IPX4	IPX4
Control mode			/	Heating,Cooling,DHW, Heating+DHW,Cooling+DHW
Motherboard control signal output			/	Linked switch, RS485, Electric 3-way valve, Water pump.
Refrigeration and volume			/	R32 / 1300g	R32 / 1500g	R32 / 1800g
Compressor	Form	/	Double-rotor type	Double-rotor type	Double-rotor type
		Quantity	/	1	1	1
		Brand	/	Mitsubishi Inverter	Mitsubishi Inverter	Mitsubishi Inverter
Outdoor unit	Net size	mm	9003501250	9003501250	9753501350
		Weight	kg	90	92	110
		Nosie level	dB(A)	≤50	≤50	≤50
Fan	Form	/	Smart fan motor	Smart fan motor	Smart fan motor
Operation ambient temperature			°C	(-25℃ -- 43℃)	(-25℃ -- 43℃)	(-25℃ -- 43℃)
Water tank heat exchanger			Liter	70	70	80
Water tank working pressure			MPa	≤0.8	≤0.8	≤0.8
Inlet pipe diameter			mm	DN20	DN20	DN20
Outlet pipe diameter			mm	DN20	DN20	DN20
Packing size			mm	10204701500	10204701500	10854701600
20" container loading			pcs	24	24	24
40" container loading			pcs	50	50	50
Auxiliary Element built-in			KW	2	2	2
WI-FI function			/	√	√	√
ErP Energy class			/	35℃A+++/ 55℃A++	35℃A+++/ 55℃A++	35℃A+++/ 55℃A++

Detailed Images

About Us

SDT-BII-R32 12.5KW High Efficiency Air Source Heat Pump Heater Mitsubishi Inverter Compressor Eco-Friendly R32 Refrigerant Quiet supplier

SIDTE Energy Co., Ltd

SIDITE Energy Co., Ltd., founded in 2000, is located in JiaXing City, Zhejiang Province.
The company specializes in the production of solar water heaters, solar collectors, solar power generation systems, and various heat pump products, including domestic, commercial, and industrial heat pumps.

Equipped with the most advanced production line and the 6 Pump Performance Comprehensive Laboratory" in China.20ITE recognized as a national high-tech enterprise, boasting 24 years of manufacturing experience.Currently, 50% of its products are exported to international market.

Our products have been awarded numerous certifications, including the Solar Keymark, CE,CCC,ISO9001, and ISO14001, and have been shipped to over 50 countries, such as Germany, the Holland, Poland, Finland, Brazil,Argentina,Australia, and Kenya.

Ensuring the highest level of customer satisfaction is our primary objective. We are committed to upholding the principles of"customer first, credit first" to establish and foster mutually beneficial cooperative relationships with clients worldwide.

Sidite makes your life green!
