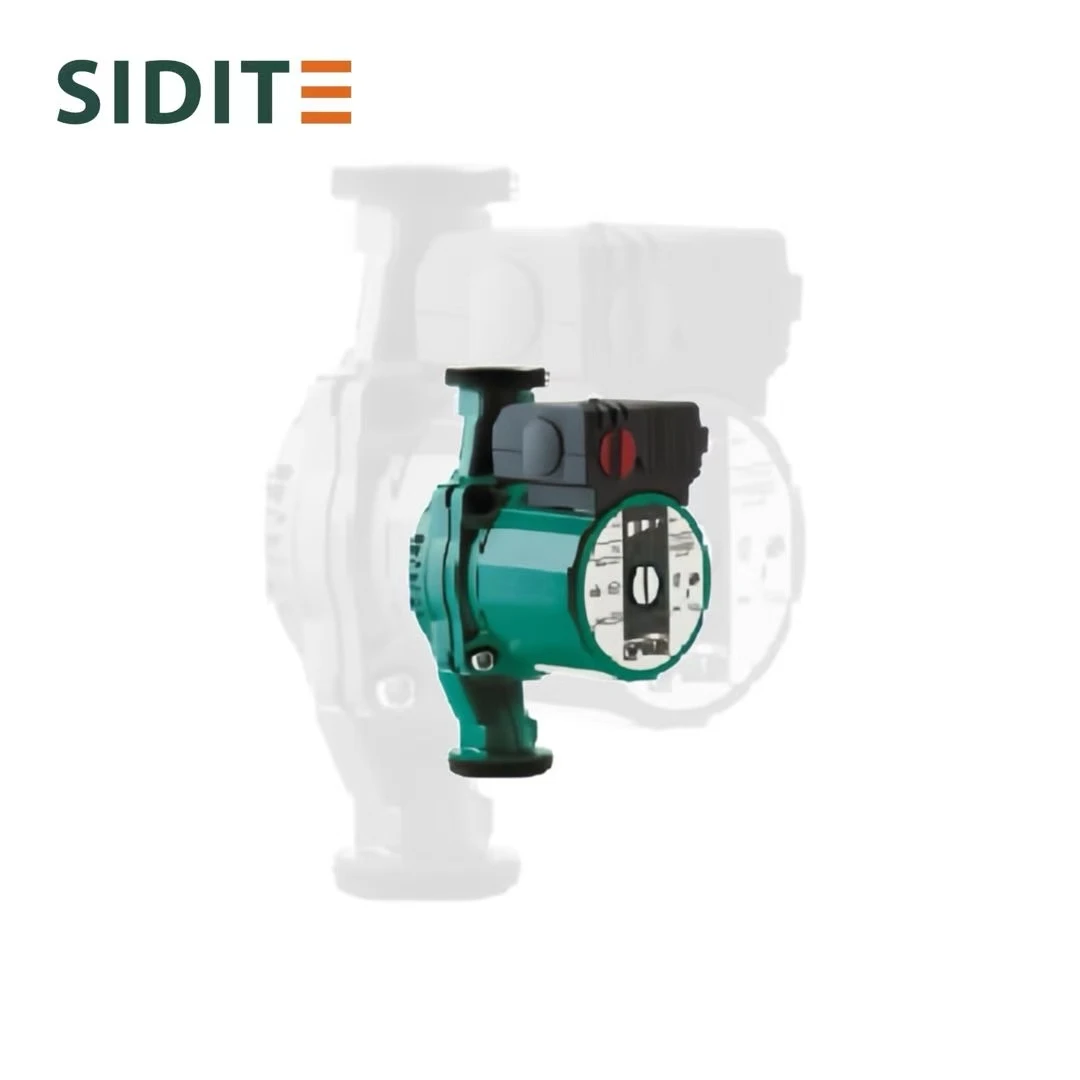

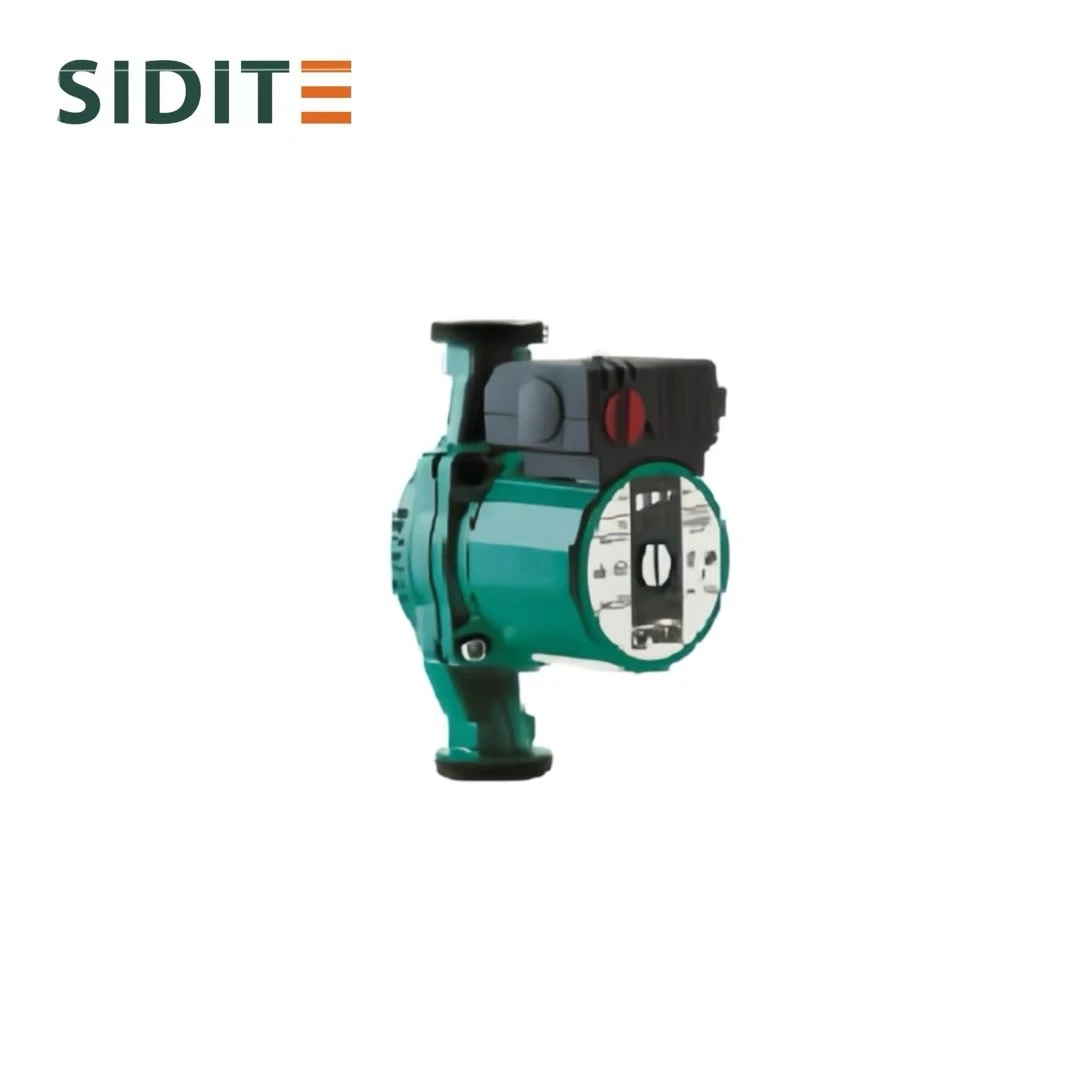

RS 25/6 Solar Heating Circulate Pump 3-Speed Manual Control 10 Bar Pressure 110℃ Max Temperature for Hot Water Systems

RS 25/6 Solar Heating Circulate Pump 3-Speed Manual Control 10 Bar Pressure 110℃ Max Temperature for Hot Water Systems

Detailed Product Description:

Circulate Pump For Solar Heating Systems Identification Code

Overview
Recommended Products

Product Descirption

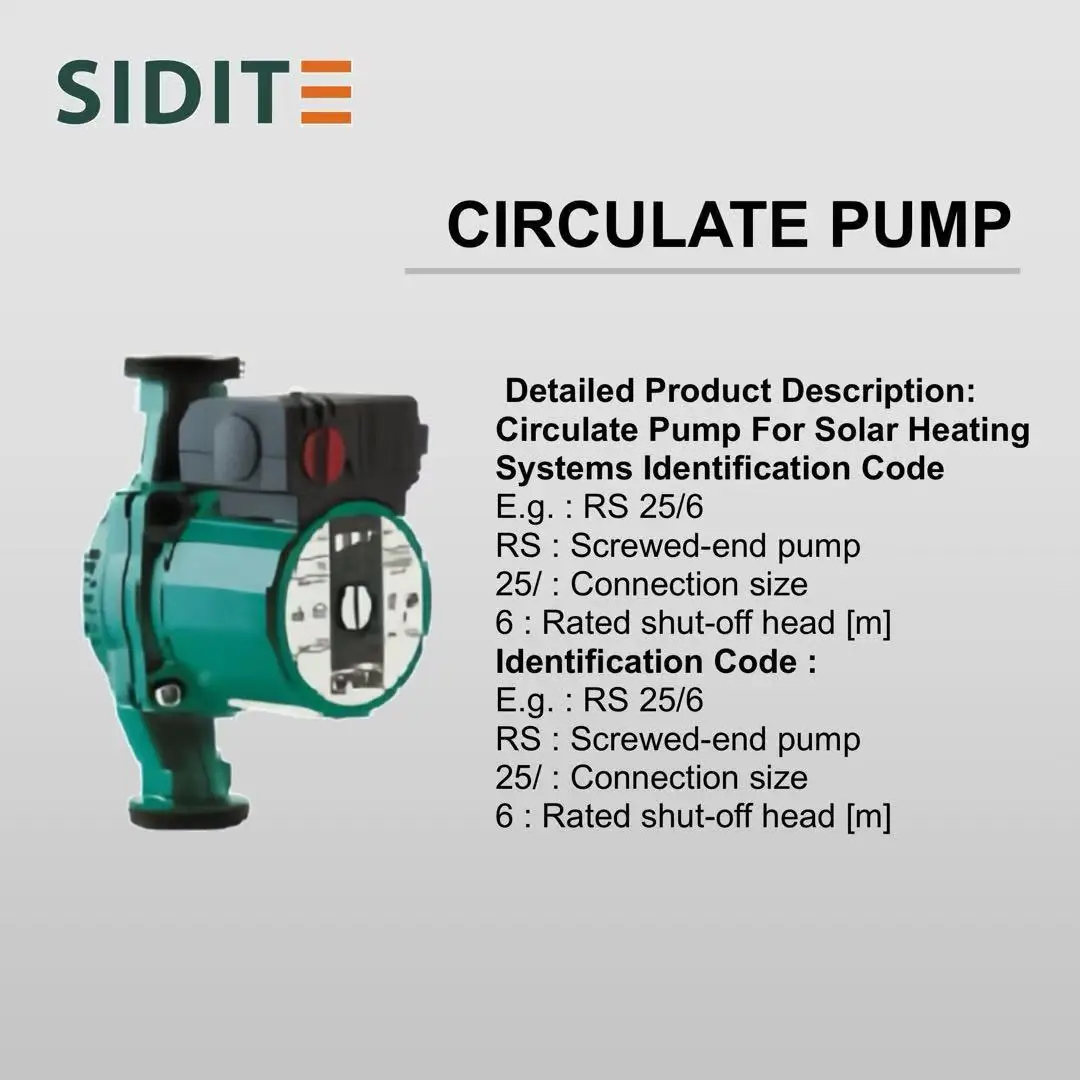

CP | CIRCULATE PUMP

Detailed Product Description:

Circulate Pump For Solar Heating Systems Identification Code:

E.g. : RS 25/6

RS : Screwed-end pump

25/ : Connection size

6 : Rated shut-off head [m]

Identification Code :

E.g. : RS 25/6

RS : Screwed-end pump

5/ : Connection size

6 : Rated shut-off head [m]

Motor Data Single phase motor (EM) 2-(pole)-1~230V, 50Hz

Technical Data:
1.Manual 3-speed control
2.Fluid temperature range:-10℃-+110℃
Max. Working prossure: 10 bars
3.Ambient Temperature
Permissible up to:40℃
4.Power
Mains power: 1~230V, 50Hz
5.Motor
Degree of protection:IP42
Insulation class: 1
Interference emission: EN 50081-1
Interference resistance: EN 50082-2
6.Construction Materials
Pump body: cast iron
Impeller: GF-PP
Shaft: stainless steel
Bearings: graphite

Item NO.	Rated Power	Steps/Speed			Power inpt			Current	Capacitor	Motor Protect
Item NO.		P 2 max. W	d n 1/p.m			P1 W			I A	Motor Protect	µ F/v
RS25/2	9	Max	1900	46	49	0.21	1.6/400	1)
RS30/2	4		1600	30	34	0.15
	2	eco	1100	19	21	0.09
RS25/4	22	Max	2000	56	68	0.28	2.0/400	1)
RS30/4	13		1650	40	48	0.2
	7	eco	1200	27	32	0.13
RS25/6	37	Max	220	77	99	0.41	2.6/400	1)
RS30/6	22		1900	56	75	0.31
	12	eco	1200	41	50	0.24

Detailed Images

RS 25/6 Solar Heating Circulate Pump 3-Speed Manual Control 10 Bar Pressure 110℃ Max Temperature for Hot Water Systems factory

RS 25/6 Solar Heating Circulate Pump 3-Speed Manual Control 10 Bar Pressure 110℃ Max Temperature for Hot Water Systems manufacture
