SC-U High Efficiency Twin-Glass Vacuum Tubes Solar Collector Eco-Friendly Aluminum Alloy Manifold Bracket for Solar Water Heater

SC-U High Efficiency Twin-Glass Vacuum Tubes Solar Collector Eco-Friendly Aluminum Alloy Manifold Bracket for Solar Water Heater

SC-U | U Pipe Solar Collector

Overview
Recommended Products

Product Descirption

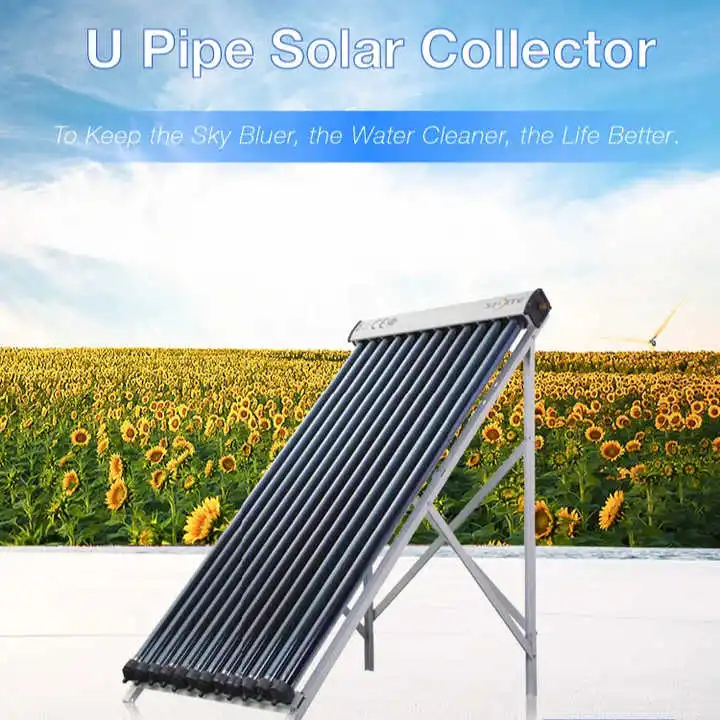

SC-U | U Pipe Solar Collector

The characteristic:

1. Twin-glass vacuum tubes: reliable, efficient, high temperature resistant, anti-freezing.
2. There is no water in the vacuum tube, the system will still work even the tube broken.
3. U pipe, most efficient.
4. Aluminum alloy manifold and bracket, corrosion resistance, easy to install. It’s suitable for flat and sloping roof.
5. Flexible Installation, installation angle from 0° to 90°, roof and wall hanging installation.
6. High temperature resistant rock wool / glass wool, high density, good thermal insulation properties.
7. High quality copper manifold, its testing pressure is 1MPa.
8. Eco and economical, improves the environment and save your fuel cost.

Model	SC-U-15	SC-U-18	SC-U-20
Tube Quantity (pcs)	15	18	20
Diameter/Length Of Vacuum Tube (mm)	φ58/1800
Material Of Vacuum Tube	High Borosilicate Glass3.3
Insulation Material/Thickness (mm)	Rock Wool/40
Rated Pressure (mpa)	0.6
Aperture Area (m²)	1.5	1.8	2
Gross Area (m²)	2.3	2.74	3.04
Power(w)1000w/m²	870	1047	1165
Net Weight (kg)	50.75	59.75	64.75
A(mm)	1270	1495	1645
B(mm)	1175	1400	1550
C(mm)	1100	1325	1475
C/2(mm)	——	——	— —
D (mm)	1980	1980	1980
E(mm)	1240	1240	1240
F(mm)	1470	1470	1470

Detailed Images

SC-U High Efficiency Twin-Glass Vacuum Tubes Solar Collector Eco-Friendly Aluminum Alloy Manifold Bracket for Solar Water Heater factory

SC-U High Efficiency Twin-Glass Vacuum Tubes Solar Collector Eco-Friendly Aluminum Alloy Manifold Bracket for Solar Water Heater details

About Us

SIDTE Energy Co., Ltd

SIDITE Energy Co., Ltd., founded in 2000, is located in JiaXing City, Zhejiang Province.
The company specializes in the production of solar water heaters, solar collectors, solar power generation systems, and various heat pump products, including domestic, commercial, and industrial heat pumps.

Equipped with the most advanced production line and the 6 Pump Performance Comprehensive Laboratory" in China.20ITE recognized as a national high-tech enterprise, boasting 24 years of manufacturing experience.Currently, 50% of its products are exported to international market.

Our products have been awarded numerous certifications, including the Solar Keymark, CE,CCC,ISO9001, and ISO14001, and have been shipped to over 50 countries, such as Germany, the Holland, Poland, Finland, Brazil,Argentina,Australia, and Kenya.

Ensuring the highest level of customer satisfaction is our primary objective. We are committed to upholding the principles of"customer first, credit first" to establish and foster mutually beneficial cooperative relationships with clients worldwide.

Sidite makes your life green!
