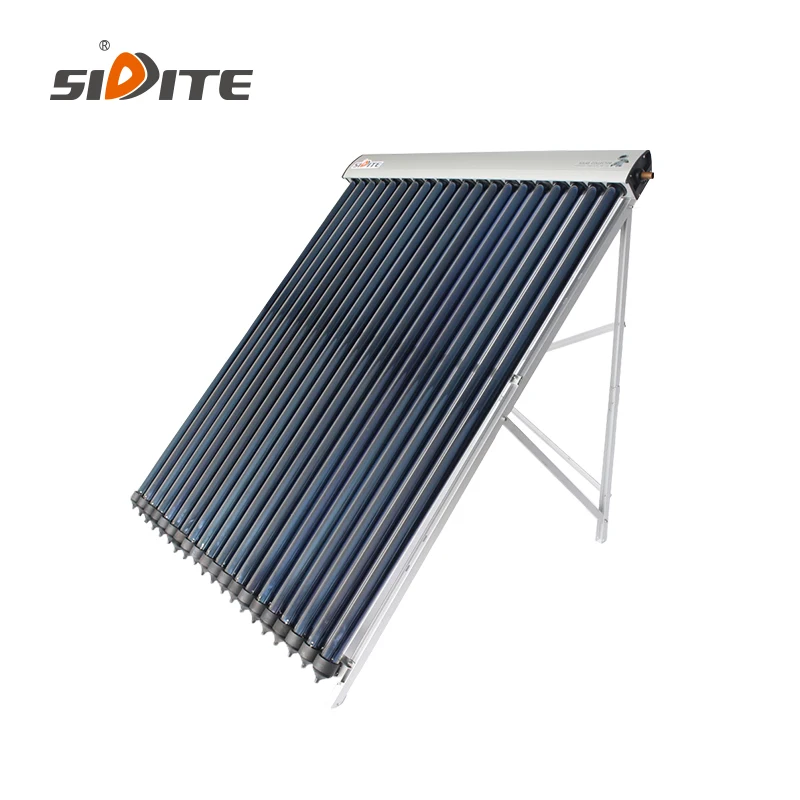

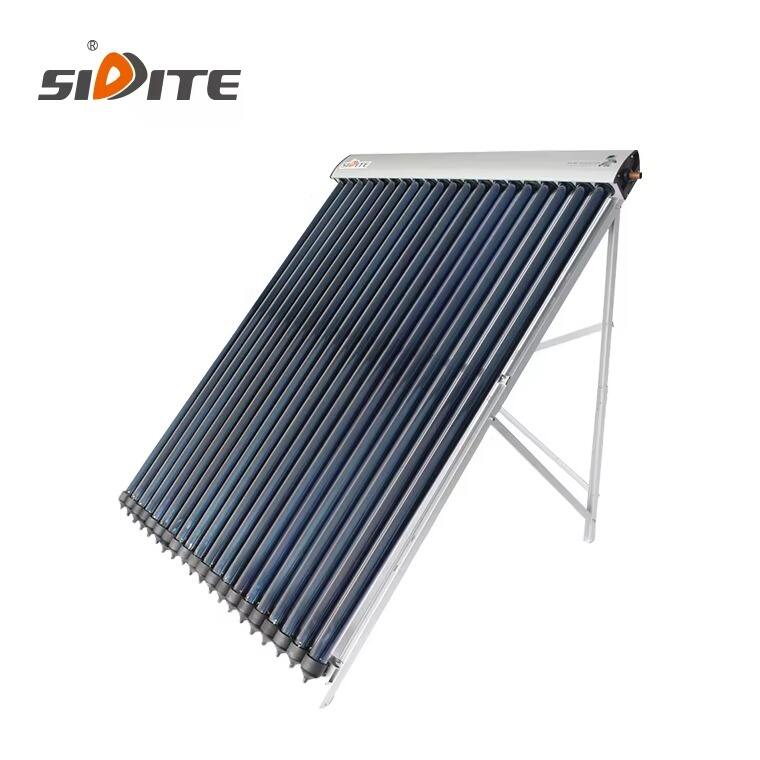

SC-HD Solar Collector Twin-Glass Vacuum Tubes Red Copper Heat Pipe Low -35°C Temp Resistance High Freestanding Outdoor

SC-HD Solar Collector Twin-Glass Vacuum Tubes Red Copper Heat Pipe Low -35°C Temp Resistance High Freestanding Outdoor

SC-HD | Inlet And Outlet At The Bottom Of Manifold Solar Collector

Overview
Recommended Products

Product Descirption

SC-HD | Inlet And Outlet At The Bottom Of Manifold Solar Collector

The characteristic:

1. Twin-glass vacuum tubes: reliable, efficient, high temperature resistant, anti-freezing.
2. There is no water in the vacuum tube, the system will still work even the tube broken.

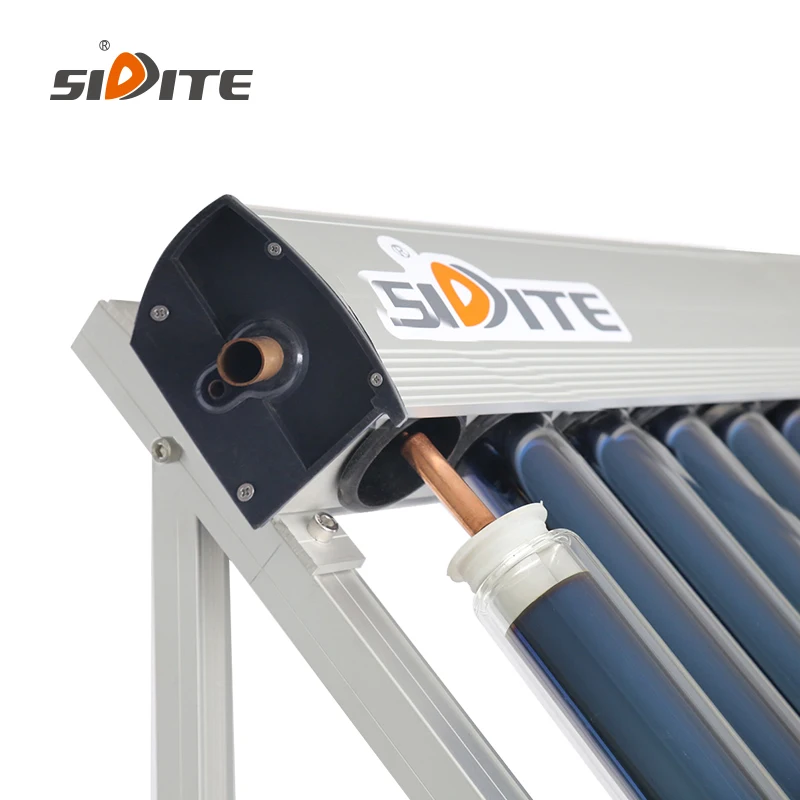

3. Red copper heat pipe, one-way transferring, fast heat transfer, less heat loss, low temperature resistance, it can be used in -35℃.
4. Aluminum alloy manifold and bracket, corrosion resistance, easy to install. It’s suitable for flat and sloping roof.

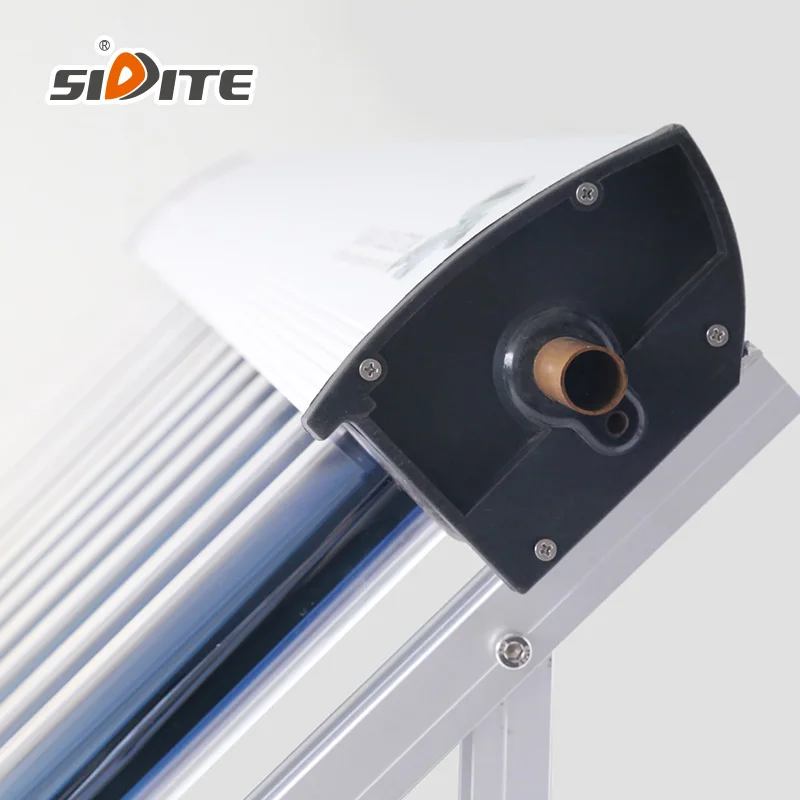

5. The inlet and outlet are on the bottom of manifold; It looks more artistic than traditional manifold.
6. Good sealed in end of cover, It can provide higher insulation efficiency.
7. The most advantage is that It can empty the medium( water or deicing fluid) in the manifold.

Model	SC-HD-10	SC-HD-15	SC-HD-18	SC-HD-20	SC-HD-24	SC-HD-25	SC-HD-30
Tube Quantity(pcs)	10	15	18	20	24	25	30
Vacuum Tube Diameter/Length (mm)	φ58/1800
Vacuum Tube Material	High Borosilicate Glass 3.3
Insulation Material/Thickness (mm)	Rock Wool/40
Rated Pressure (mpa)	0.6
Aperture Area (m²)	1	1.5	1.8	2	2.4	2.5	3
Gross Area (m²)	1.56	2.3	2.74	3.04	3.63	3.77	4.51
Power(w)1000w/m²	620	870	1047	1165	1401	1457	1748
Net Weight (kg)	38.25	50.75	59.75	64.75	79	83.35	98.7
A(mm)	895	1270	1495	1645	1945	2020	2395
B(mm)	800	1175	1400	1550	1850	1925	2300
C(mm)	725	1100	1325	1475	1775	1850	2225
C/2(mm)	——	——	——	——	887.5	925	1112.5
D(mm)	1980	1980	1980	1980	1980	1980	1980
E(mm)	1240	1240	1240	1240	1240	1240	1240
F(mm)	1470	1470	1470	1470	1470	1470	1470

Detailed Images

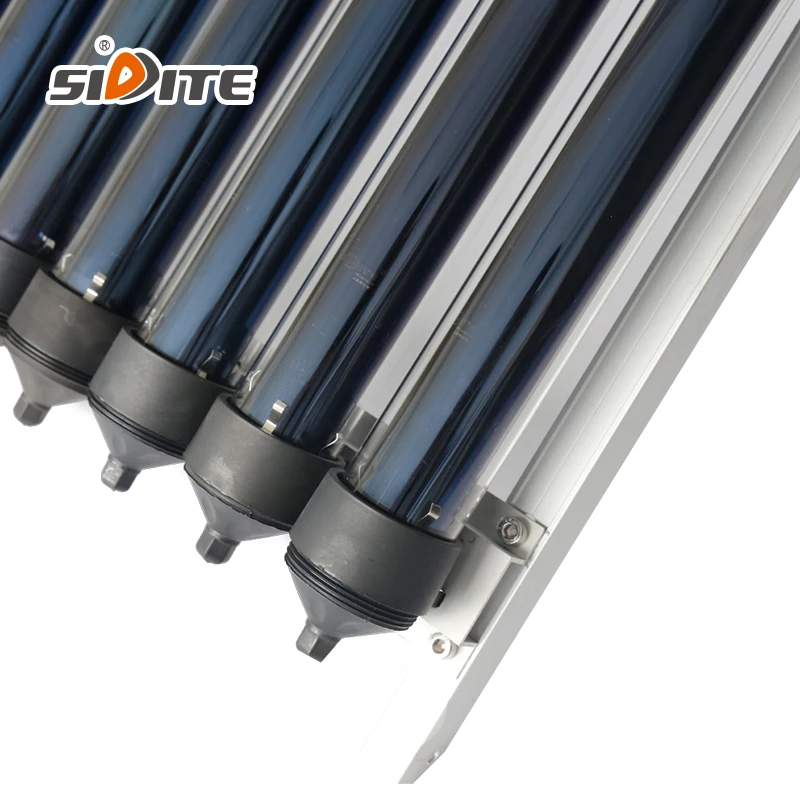

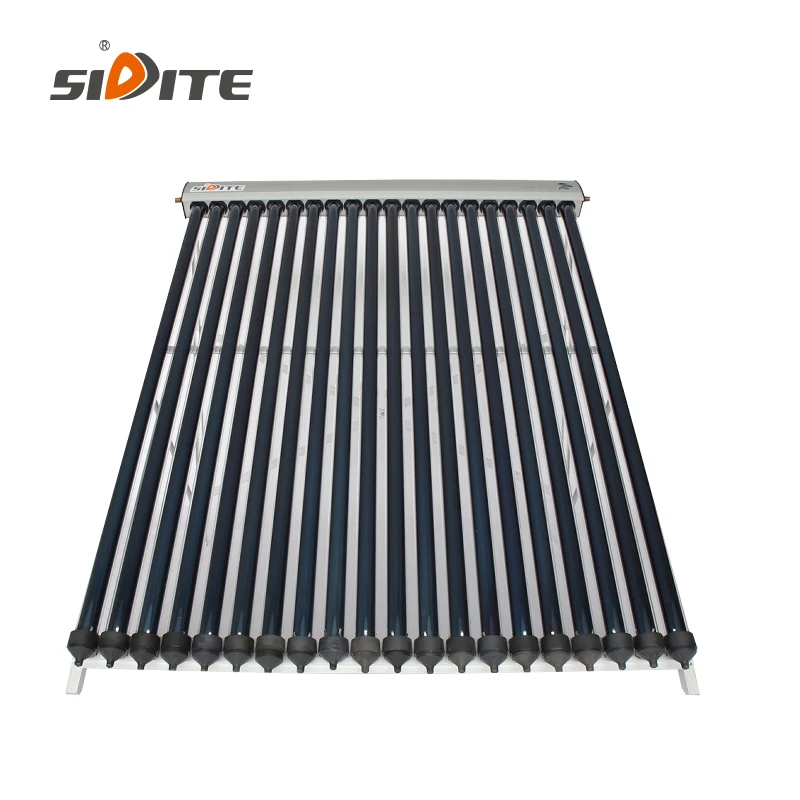

SC-HD Solar Collector Twin-Glass Vacuum Tubes Red Copper Heat Pipe Low -35°C Temp Resistance High Freestanding Outdoor details

SC-HD Solar Collector Twin-Glass Vacuum Tubes Red Copper Heat Pipe Low -35°C Temp Resistance High Freestanding Outdoor manufacture
