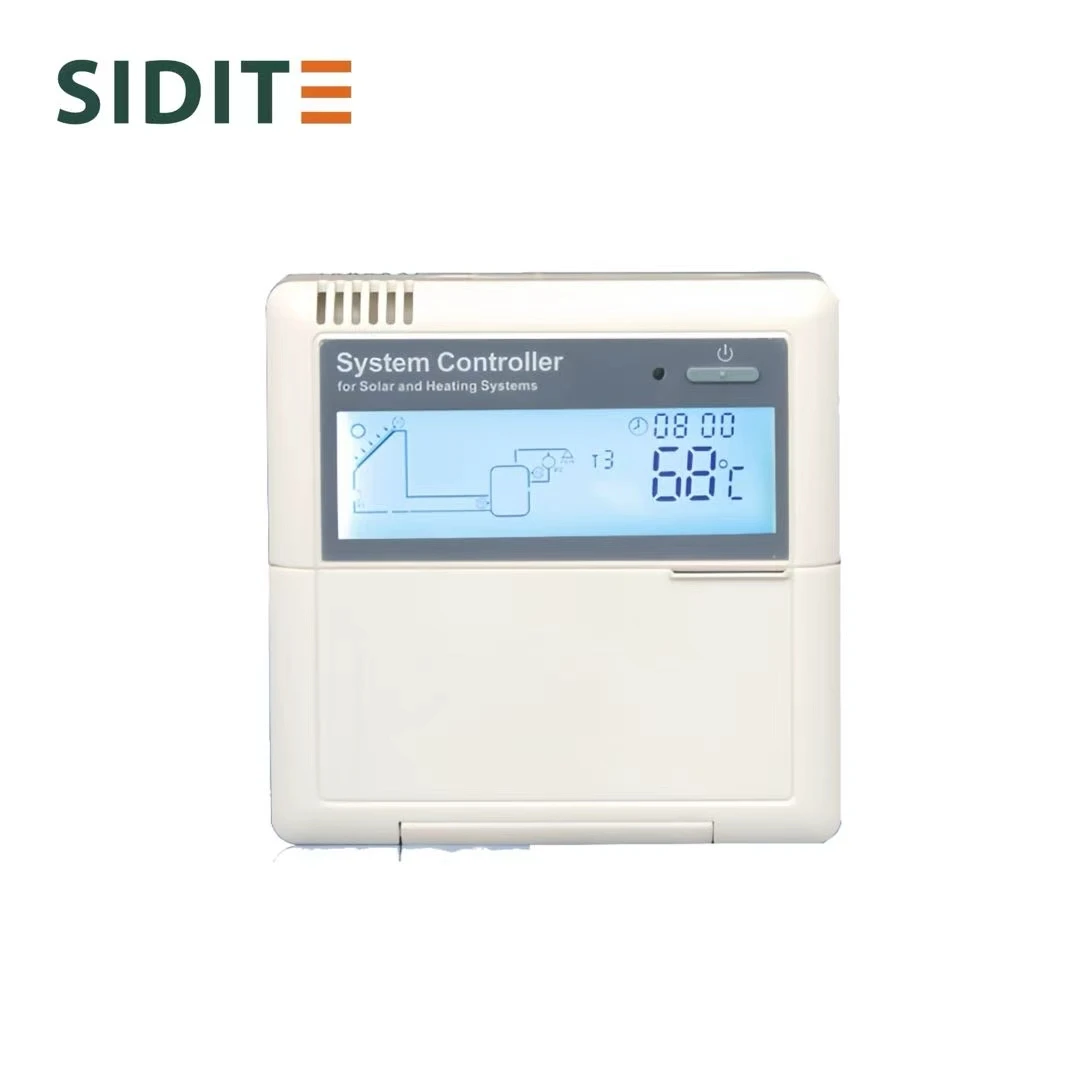

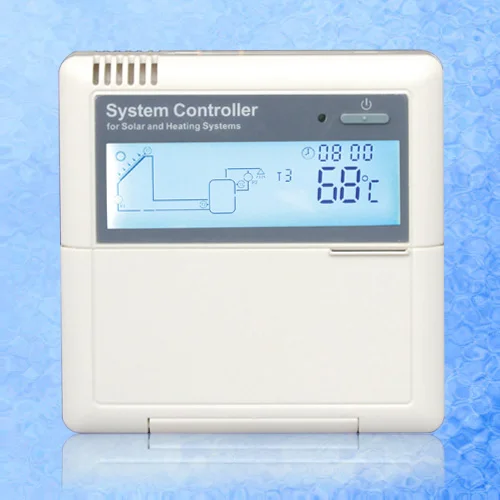

SR868C8 | SOLAR CONTROLLER

Overview
Recommended Products

Product Descirption

SR868C8 | SOLAR CONTROLLER

Introduce

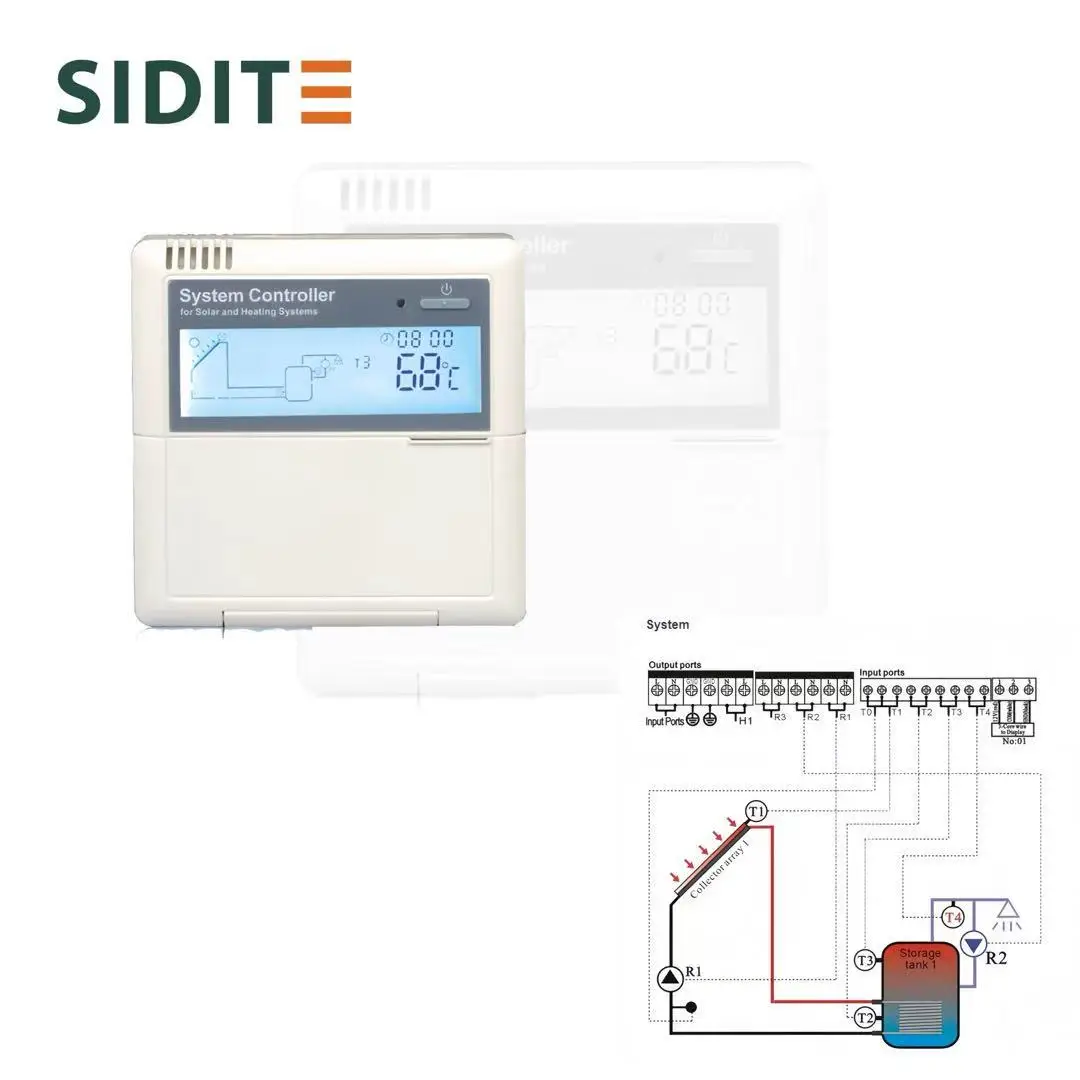

1 collector array – 1 storage tank – 1 pump and auxiliary heating

Description:

The solar circuit pump (R1) is switched on as soon as the switch-on temperature difference (△Ton) between the collector array (T1) and the storage tank (T2) is reached. If the temperature difference between the collector array (T1) and storage tank (T2) drops below the switch-off temperature difference (△Toff), or the temperature of storage tank (T3) reaches the preset maximum storage temperature, then the solar circuit pump ( R1)is switched off. Back-up heating by auxiliary boiler (detailed see paragraph 4.3): Within the preset time section of back-up heating, if the temperature T3 is below the switch-on temperature, then the circulation pump ( H1) of back-up heating is triggered, when T3 is heated to the switch-off temperature, circulation pump H1 of back-up heating is ceased.

Main functions:

1.Main menu DT O & DT F Temperature difference function

2.Main menu-THET timing heating

3.TEMP Temperature main menu

4.EM Emergency collector temperature

（emergency switch-off temperature of collector）

5.CMX Maximum limited collector temperature (collector cooling function)

6.CMN low temperature protection of collector

7.CFR frost protection of collector

8.SMX Maximum temperature of tank

9.REC Tank re-cooling function

10.Celsius and Fahrenheit temperature transferring

11.FUN Auxiliary function

12.DVWG Anti-Legionella function

13.CIRC Temperature controlled hot water circulation pump

14.nMIN Solar circulation pump speed adjusting (RPM speed controlling)(Only available on SR868C8Q)

15.OHQM Thermal energy measuring (Only available on SR868C8Q)

16.INTV Pump interval function (Only available on SR868C8Q)

17.BYPR High temperature by-pass function

(tank temperature automatically adjusting)

18. HND Manual mode

19.PASS Password setting

20.LOAD Recovery to factory setting

21.ON/OFF button

22.Holiday function

23.Manual heating

24.Temperature query function

25.Memory Protection

26.Anti-dry heating Protection

27.Screen protection

Detailed Images

Intelligent Solar Energy Management System Automatic Temperature Differential Control (Ton/Toff) Pump Water Heater Parts manufacture

Intelligent Solar Energy Management System Automatic Temperature Differential Control (Ton/Toff) Pump Water Heater Parts factory

Intelligent Solar Energy Management System Automatic Temperature Differential Control (Ton/Toff) Pump Water Heater Parts supplier

About Us

SIDTE Energy Co., Ltd

SIDITE Energy Co., Ltd., founded in 2000, is located in JiaXing City, Zhejiang Province.
The company specializes in the production of solar water heaters, solar collectors, solar power generation systems, and various heat pump products, including domestic, commercial, and industrial heat pumps.

Equipped with the most advanced production line and the 6 Pump Performance Comprehensive Laboratory" in China.20ITE recognized as a national high-tech enterprise, boasting 24 years of manufacturing experience.Currently, 50% of its products are exported to international market.

Our products have been awarded numerous certifications, including the Solar Keymark, CE,CCC,ISO9001, and ISO14001, and have been shipped to over 50 countries, such as Germany, the Holland, Poland, Finland, Brazil,Argentina,Australia, and Kenya.

Ensuring the highest level of customer satisfaction is our primary objective. We are committed to upholding the principles of"customer first, credit first" to establish and foster mutually beneficial cooperative relationships with clients worldwide.

Sidite makes your life green!
