Energy-Efficient Household All-in-One 75% Efficient Heat Pump Water Heater with Bacteriostasis Scale Removal Full Water Heat

Energy-Efficient Household All-in-One 75% Efficient Heat Pump Water Heater with Bacteriostasis Scale Removal Full Water Heat

Overview
Recommended Products

Product Descirption

SDT-FR1.0-EN | Household Domestic Hot Water Expert

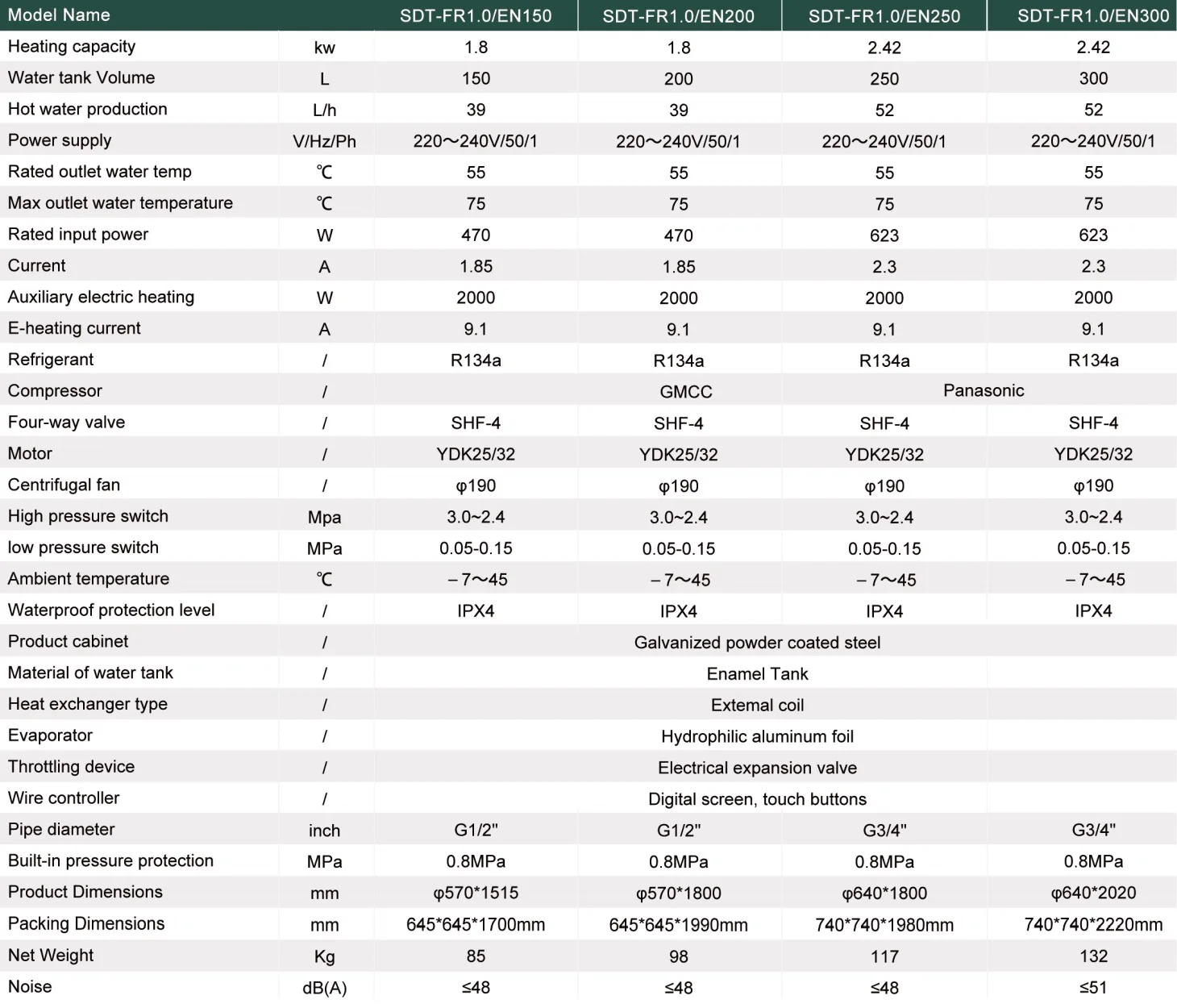

Model Name		SDT-FR1.0/EN150	SDT-FR1.0/EN200	SDT-FR1.0/EN250	SDT-FR1.0/EN300
Heating capacity	kw	1.8	1.8	2.42	2.42
Water tank Volume	L	150	200	250	300
Hot water production	L/h	39	39	52	52
Power supply	V/Hz/Ph	220~240V/50/1	220~240V/50/1	220~240V/50/1	220~240V/50/1
Rated outlet water temp	℃	55	55	55	55
Max outlet water temperature	℃	75	75	75	75
Rated input power	w	470	470	623	623
Current	A	1.85	1.85	2.3	2.3
Auxiliary electric heating	W	2000	2000	2000	2000
E-heating current	A	9.1	9.1	9.1	9.1
Refrigerant	/	R134a	R134a	R134a	R134a
Compressor	/	GMCC		GMCC	Panasonic
Four-way valve	/	SHF-4	SHF-4	SHF-4	SHF-4
Motor	/	YDK25/32	YDK25/32	YDK25/32	YDK25/32
Centrifugal fan	/	φ190	φ190	φ190	φ190
High pressure switch	Mpa	3.0~2.4	3.0~2.4	3.0~2.4	3.0~2.4
low pressure switch	MPa	0.05-0.15	0.05-0.15	0.05-0.15	0.05-0.15
Ambient temperature	℃	-7~45	-7~45	-7~45	-7~45
Waterproof protection level	/	IPX4	IPX4	IPX4	IPX4
Product cabinet	/	Galvanized powder coated steel
Material of water tank	/	Enamel Tank
Heat exchanger type	/	Extemal coil
Heat exchanger type	/	Extemal coil
Evaporator	/	Hydrophilic aluminum foil
Throttling device	/	Electrical expansion vaive
Wire controller	/	Digital screen, touch buttons
Pipe diameter	inch	G1/2"	G1/2"	G3/4"	G3/4"
Built-in pressure protection	MPa	0.8MPa	0.8MPa	0.8MPa	0.8MPa
Product Dimensions	mm	φ570*1515	φ570*1800	φ640*1800	φ640*2020
Packing Dimensions	mm	6456451700mm	6456451990mm	7407401980mm	7407402220mm
Net Weight	Kg	85	98	117	132
Noise	dB(A)	≤48	≤48	≤48	≤51

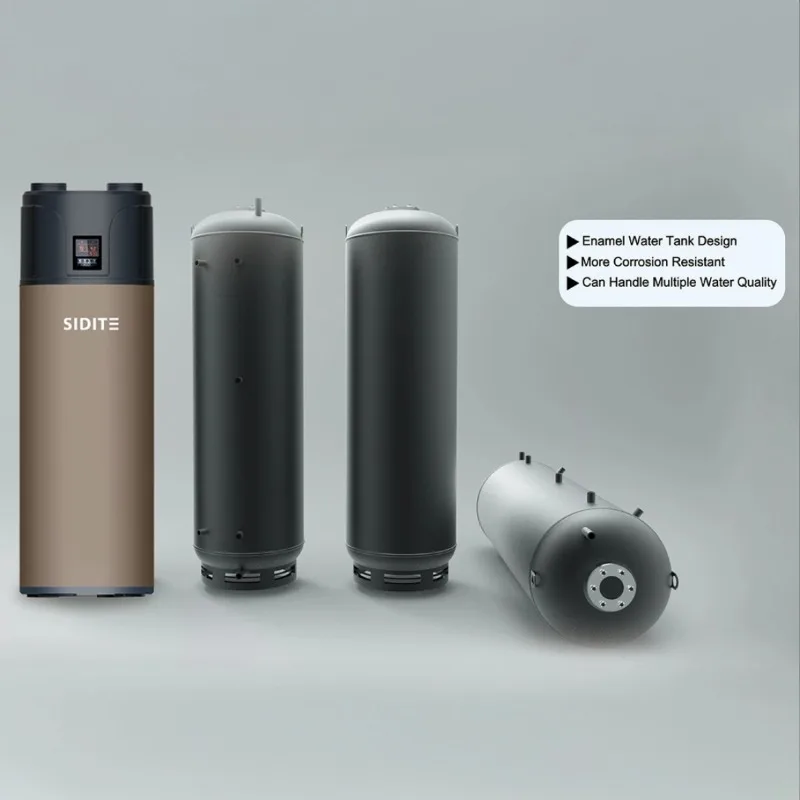

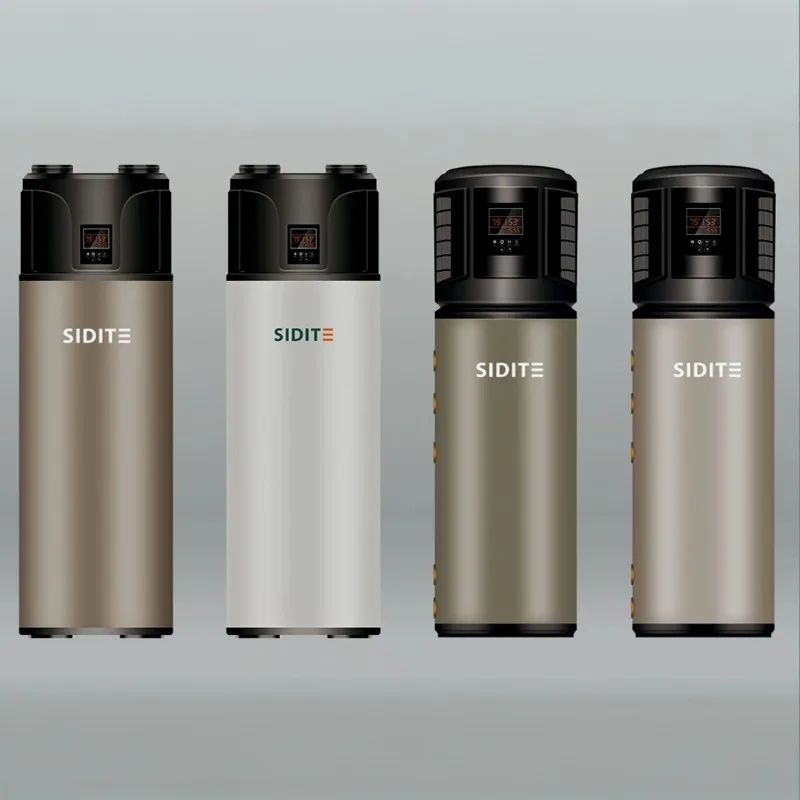

Detailed Images

Energy-Efficient Household All-in-One 75% Efficient Heat Pump Water Heater with Bacteriostasis Scale Removal Full Water Heat manufacture

Energy-Efficient Household All-in-One 75% Efficient Heat Pump Water Heater with Bacteriostasis Scale Removal Full Water Heat details

Energy-Efficient Household All-in-One 75% Efficient Heat Pump Water Heater with Bacteriostasis Scale Removal Full Water Heat factory

About Us

Energy-Efficient Household All-in-One 75% Efficient Heat Pump Water Heater with Bacteriostasis Scale Removal Full Water Heat supplier

SIDTE Energy Co., Ltd

SIDITE Energy Co., Ltd., founded in 2000, is located in JiaXing City, Zhejiang Province.
The company specializes in the production of solar water heaters, solar collectors, solar power generation systems, and various heat pump products, including domestic, commercial, and industrial heat pumps.

Equipped with the most advanced production line and the 6 Pump Performance Comprehensive Laboratory" in China.20ITE recognized as a national high-tech enterprise, boasting 24 years of manufacturing experience.Currently, 50% of its products are exported to international market.

Our products have been awarded numerous certifications, including the Solar Keymark, CE,CCC,ISO9001, and ISO14001, and have been shipped to over 50 countries, such as Germany, the Holland, Poland, Finland, Brazil,Argentina,Australia, and Kenya.

Ensuring the highest level of customer satisfaction is our primary objective. We are committed to upholding the principles of"customer first, credit first" to establish and foster mutually beneficial cooperative relationships with clients worldwide.

Sidite makes your life green!
