AEROFLEX High-Temp Solar Connectors Kit EPDM Insulated Piping System for Solar Thermal Applications No Welding Required

AEROFLEX High-Temp Solar Connectors Kit EPDM Insulated Piping System for Solar Thermal Applications No Welding Required

SS Pipe：316L
Size：DN12(1/2”)
Model Number：AKSC01-12-13/20

Overview
Recommended Products

Product Descirption

SOLAR CONNECTORS

Product Descriptions: 1. A system solution specially designed for the solar thermal applications . 2. All products insulated with AEROFLEX EPDM insulation tubes . 3. Can be connected with all standard components .for solar thermal systems. 4. No soldering or welding required, make the installation easy and reliable. 5. Suitable for both indoor and outdoor installation of solar systems . Product Characteristics: 1. High temperature resistance up to +150C, and suitable for brief exposure to temperature up to +175C. 2. Optimize the thermal efficiency of whole pipeline system , and save time during installation. 3. Weather and UV resistant , protected against water vapor diffusion, increase lifespan of the pipeline. 4. The protection film avoids the animal harms like the birds pecking and rats gnawing . Our Aeroflex Flexible Elastomeric Thermal Insulation Tube Features: 1. AEROFLEX flexible closed cell insulation is most effective in reducing heat loss form indoor and outdoor hot water piping systems in hospitals, hotels, residential buildings and industrial plants. 2. AEROFLEX also proves to be the most suitable insulation for outdoor pipe line of Solar Energy Heating System. 3. AEROFLEX is manufactured from synthetic polymers which contain no asbestos or fibrous material . This is one of installed in places where hygiene is vital. the many reasons why AEROFLEX is widely selected as a replacement for fibrous material like fiberglass or rock wool used in hot water piping of up to 100 °C in hotels, hospitals and industrial or residential applications. 4. Two years exposed to sunlight experiments proves that AEROFLEX has outstanding ultraviolet and weather resistance. The service life under normal conditions for hot water pipes is estimated at more than 10 years.

Model Number	Size	SS Pipe	EPDM Wall Thickness(mm)	Lengths(cm)
AKSC01-12-13/20	DN12(1/2”)	316L	13/20	10-20
AKSC01-16-13/20	DN16(3/4”)	316L	13/20	10-20
AKSC01-20-13/20	DN20(1”)	316L	13/20	10-20
AKSC02-12-13/20	DN12(1/2”)	SUS304	13/20	10-20
AKSC02-16-13/20	DN16(3/4”)	SUS304	13/20	10-20
AKSC02-20-13/20	DN20(1”)	SUS304	13/20	10-20

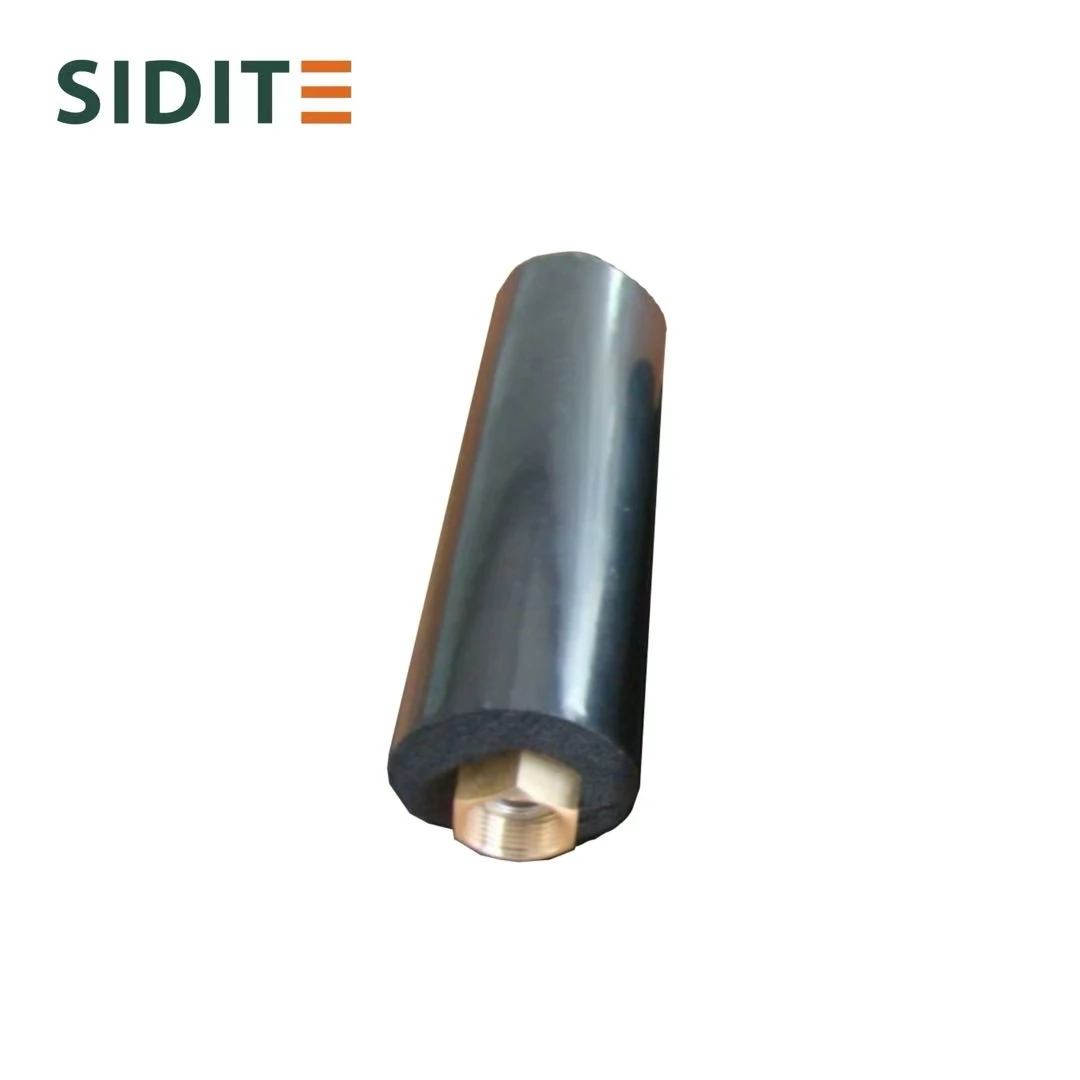

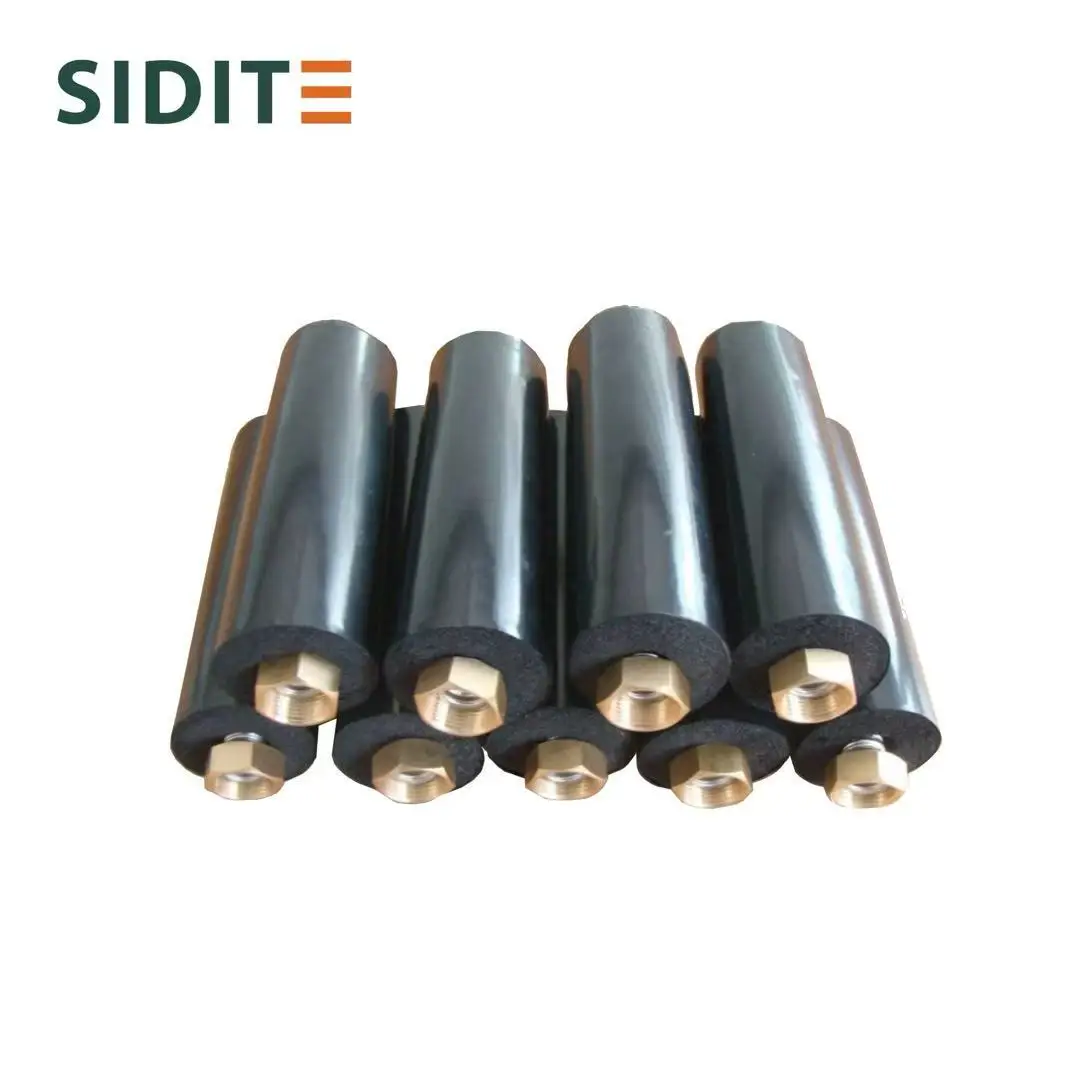

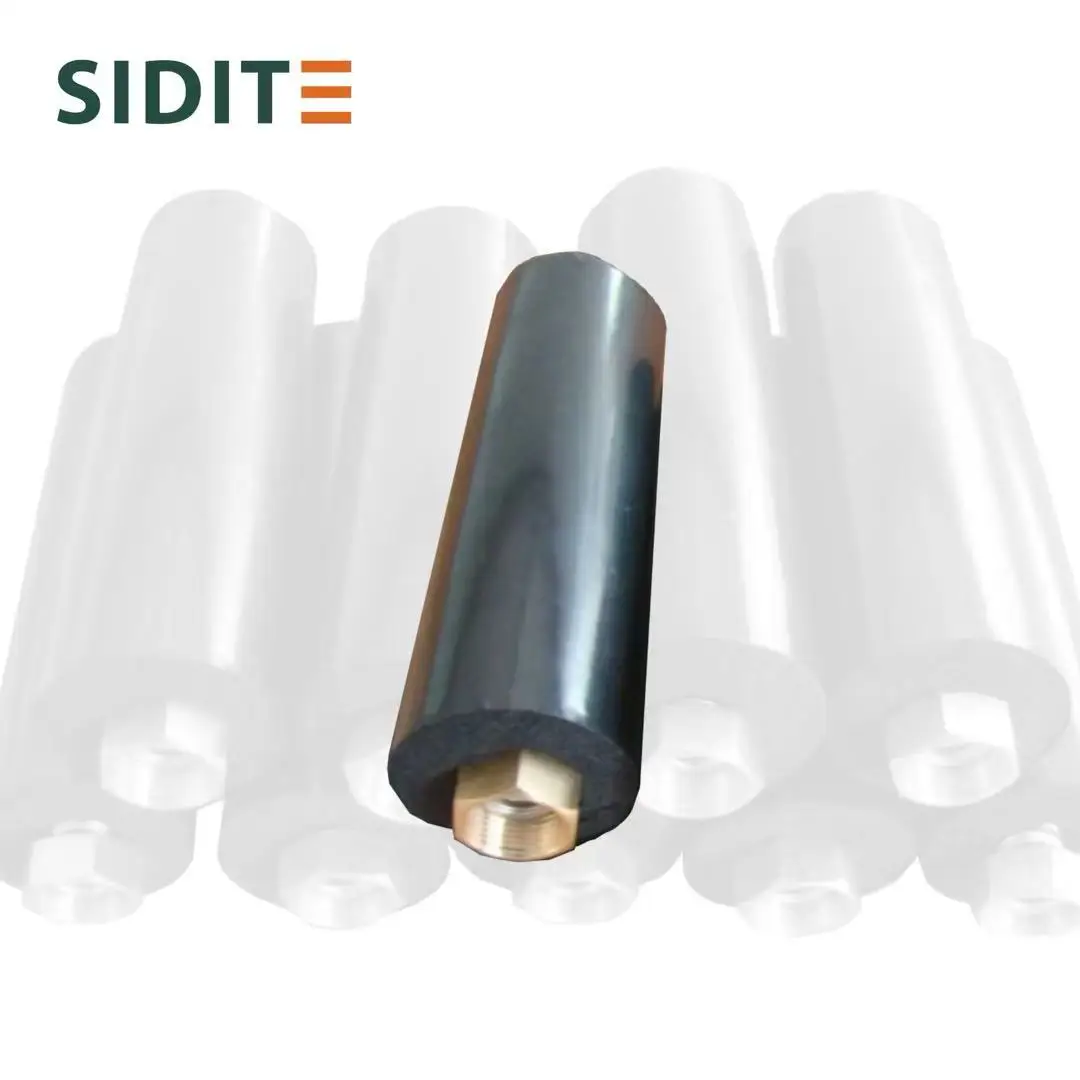

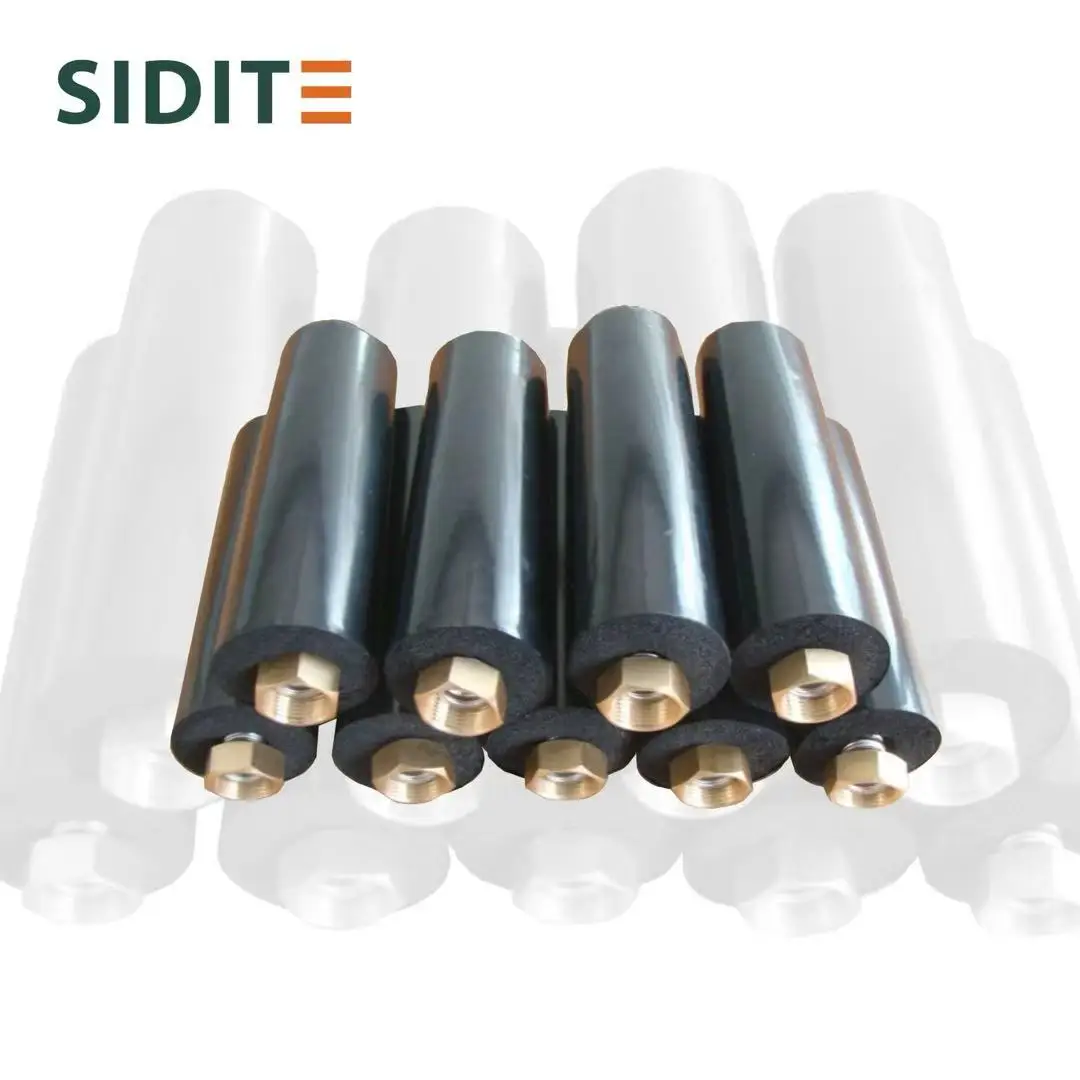

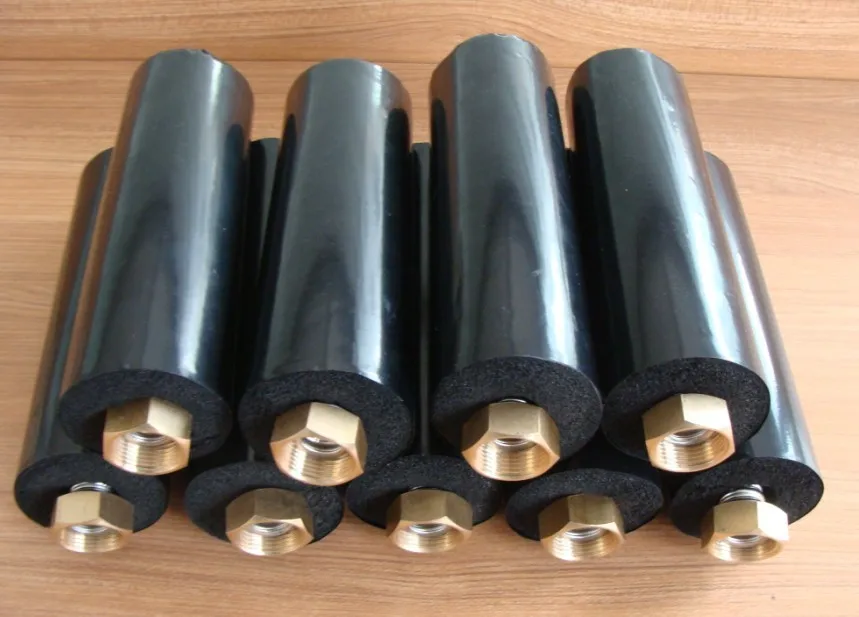

Detailed Images

AEROFLEX High-Temp Solar Connectors Kit EPDM Insulated Piping System for Solar Thermal Applications No Welding Required details

AEROFLEX High-Temp Solar Connectors Kit EPDM Insulated Piping System for Solar Thermal Applications No Welding Required factory

AEROFLEX High-Temp Solar Connectors Kit EPDM Insulated Piping System for Solar Thermal Applications No Welding Required manufacture

About Us

AEROFLEX High-Temp Solar Connectors Kit EPDM Insulated Piping System for Solar Thermal Applications No Welding Required supplier

SIDTE Energy Co., Ltd

SIDITE Energy Co., Ltd., founded in 2000, is located in JiaXing City, Zhejiang Province.
The company specializes in the production of solar water heaters, solar collectors, solar power generation systems, and various heat pump products, including domestic, commercial, and industrial heat pumps.

Equipped with the most advanced production line and the 6 Pump Performance Comprehensive Laboratory" in China.20ITE recognized as a national high-tech enterprise, boasting 24 years of manufacturing experience.Currently, 50% of its products are exported to international market.

Our products have been awarded numerous certifications, including the Solar Keymark, CE,CCC,ISO9001, and ISO14001, and have been shipped to over 50 countries, such as Germany, the Holland, Poland, Finland, Brazil,Argentina,Australia, and Kenya.

Ensuring the highest level of customer satisfaction is our primary objective. We are committed to upholding the principles of"customer first, credit first" to establish and foster mutually beneficial cooperative relationships with clients worldwide.

Sidite makes your life green!
