Eco-Smart R290 Air Source Heat Pump High Efficiency Electric Powered for Comfortable Residential Household Use Durable Metal

Eco-Smart R290 Air Source Heat Pump High Efficiency Electric Powered for Comfortable Residential Household Use Durable Metal

●5-Inch TFT true color screen
●5G/2.4G compatible WIFI module
●Dual temp. zone
●Reservd RS485 communication port
●Linkage control with PV function

Overview
Recommended Products

Product Descirption

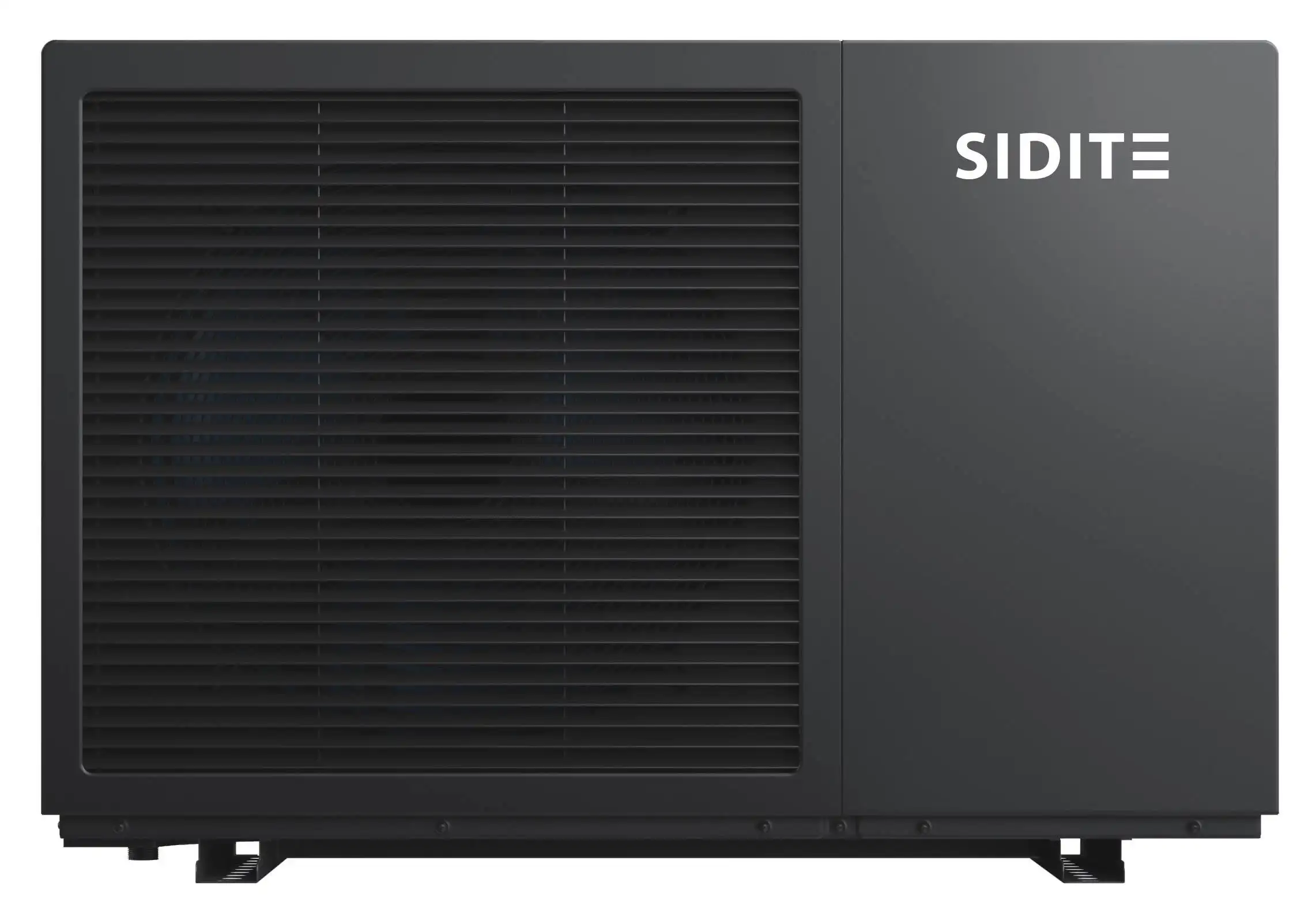

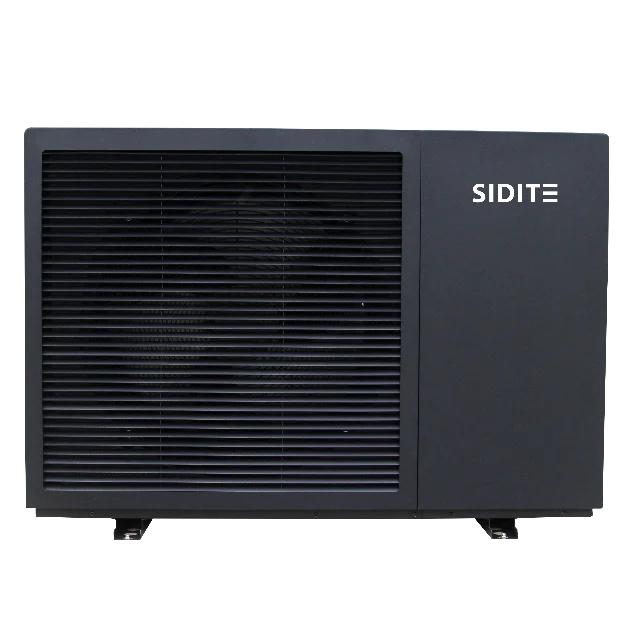

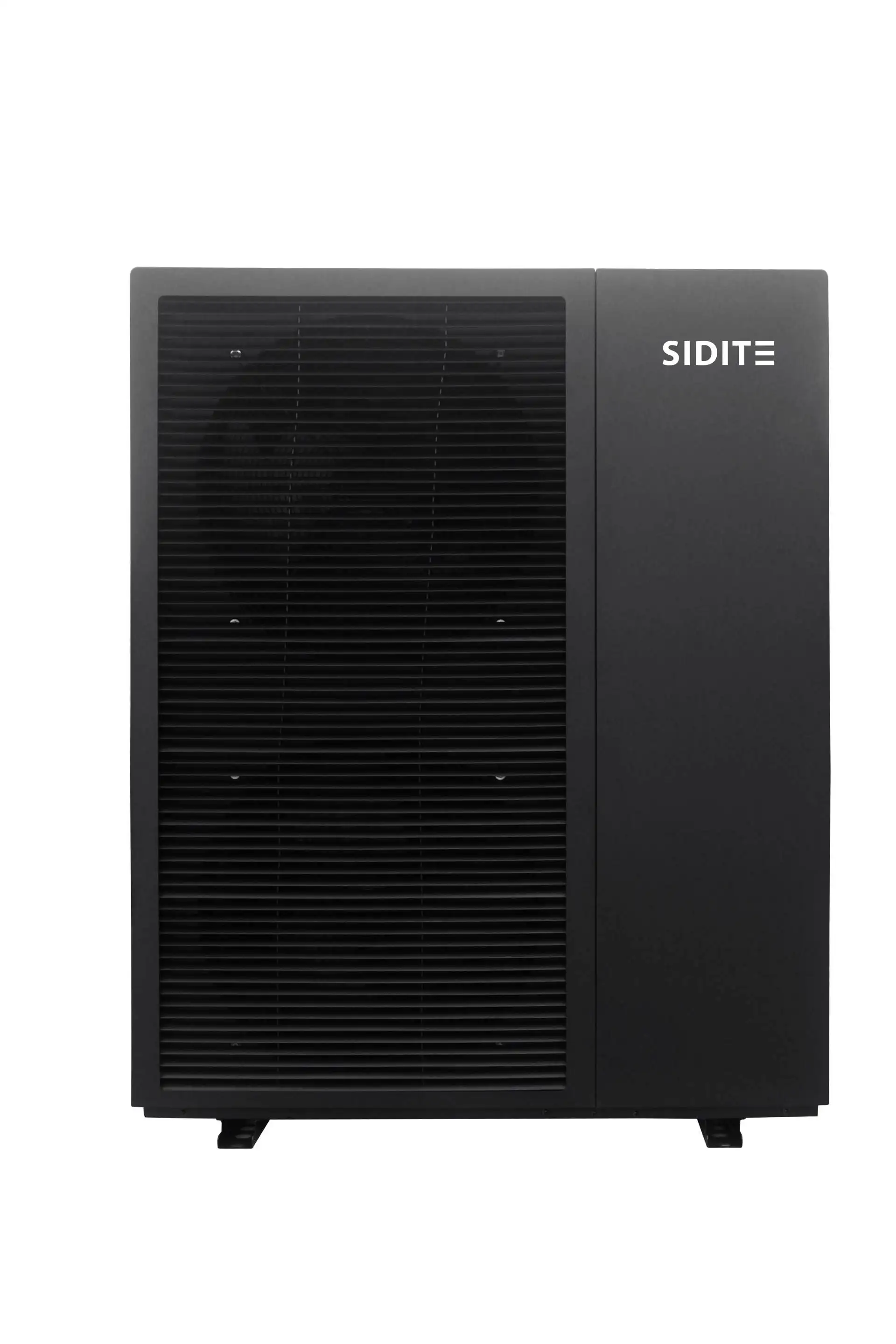

SDT-TC | R290 inverter house heating heat pump

The characteristic:

●R290 refrigerant low GWP (GWP=3) ●Energy class: A+++ ●Stable operation at -25℃ ●Outlet water temp. up to 75 ℃ ●Power detection function ●SG-READY Function ●5-Inch TFT true color screen ●5G/2.4G compatible WIFI module ●Dual temp. zone ●Reservd RS485 communication port ●Linkage control with PV function

Detailed Images

Model Name				SDT-006TC1	SDT-008TC1	SDT-008TC3	SDT-012TC1
Power Supply			V/Ph/Hz	220~240/1/50		220~240/1/50	380~415/3/50	220~240/1/50
Nominal Heating (Max) (A7/6℃,W30/35℃)	Heating Capacity	kW	2.92~9.10	4.10~12.10	4.10~12.10	4.30~15.20
		Power Input	kW	0.61~2.11	0.79~2.85	0.79~2.85	0.87~3.73
		Current Input	A	2.80~9.25	3.45~13.04	1.62~4.57	4.02~16.38
		COP	W/W	4.31~5.66	4.24~5.57	4.24~5.57	4.07~5.57
Nominal Heating (Max) (A7/6℃,W47/55℃)	Heating Capacity	kW	2.99~8.16	4.05~12.15	4.05~12.15	4.25~14.55
		Power Input	kW	1.03~2.92	1.38~4.06	1.38~4.06	1.45~4.28
		Current Input	A	4.57~12.79	5.73~17.70	2.70~6.43	6.71~18.80
		COP	W/W	2.79~3.46	2.99~3.45	2.99~3.45	2.83~3.45
Nominal Cooling (Max) (A35/24℃,W12/7℃)	Cooling Capacity	kW	1.38~5.70	3.65~8.59	3.65~8.59	3.65~11.04
		Power Input	kW	0.67~2.44	1.12~3.31	1.12~3.31	1.12~3.97
		Current Input	A	3.06~10.27	5.18~14.47	1.97~5.25	5.18~17.44
ERP Level（Outlet water temp. at 35℃）			/	A+++	A+++	A+++	A+++
MAX. input power			kW	3.50	5.40	5.85	5.40
MAX. input current			A	15.00	25.00	10.00	25.00
Refrigerant / Weight/GWP			/	R290 / 0.55 / 3	R290 / 1.05 / 3	R290 / 1.05 /3	R290 / 1.05 / 3
Rated water flow			m³/h	1.00	1.40	1.40	2.06
Fan quantity			/	1	1	1	1
Fan motor type			/	DC inverter
Compressor			/	DC inverter
Circulating pump			/	Inverter type / Built-in
IP Class			/	IPX4
Sound pressure at 1m distance			dB(A)	46	43	43	53
Max outlet water temperature			°C	75	75	75	75
Water piping connections			/	G1	G1	G1	G1
Water Pressure drop(max)			kPa	20	20	20	20
Operating temperature range (Heating mode)			°C	-25~45
Operating temperature range (Cooling mode)			°C	16~45
Unpacked Dimensions ( L×D×H )			mm	1187418805	1287448904	1287448904	1287448904
Packed Dimensions ( L×D×H )			mm	1217463920	13174931020	13174931020	13174931020
UnPacked Weight			kg	110	134	134	134
Packed Weight			kg	122	146	146	146
Container Loading quantity(20GP/40GP/40HQ)			kg	38/82/82	38/82/82	38/82/82	32/64/64

Model Name				SDT-012TC3	SDT-018TC1	SDT-018TC3
Power Supply			V/Ph/Hz	380~415/3/50	220~240/1/50	380~415/3/50
Nominal Heating (Max) (A7/6℃,W30/35℃)	Heating Capacity	kW	4.30~15.20	7.24~21.90	7.24~21.90
		Power Input	kW	0.87~3.73	1.50~5.88	1.50~5.88
		Current Input	A	1.78~6.04	6.86~30.25	2.82~9.16
		COP	W/W	4.07~5.57	3.82~5.59	3.82~5.59
Nominal Heating (Max) (A7/6℃,W47/55℃)	Heating Capacity	kW	4.25~14.55	6.36~19.45	6.36~19.45
		Power Input	kW	1.45~4.28	2.15~6.85	2.15~6.85
		Current Input	A	2.84~6.78	9.84~30.12	3.71~10.60
		COP	W/W	2.83~3.45	2.84~3.57	2.84~3.57
Nominal Cooling (Max) (A35/24℃,W12/7℃)	Cooling Capacity	kW	3.65~11.04	4.55~17.20	4.55~17.20
		Power Input	kW	1.12~3.97	1.85~7.31	1.85~7.31
		Current Input	A	1.97~6.30	8.47~32.1	2.99~11.26
ERP Level（Outlet water temp. at 35℃）			/	A+++	A+++	A+++
MAX. input power			kW	5.85	7.50	9.00
MAX. input current			A	10.00	35.00	16.00
Refrigerant / Weight/GWP			/	R290 / 1.05 /3	R290 / 1.4 / 3	R290 / 1.4 / 3
Rated water flow			m³/h	2.06	3.10	3.10
Fan quantity			/	1	2	2
Fan motor type			/	DC inverter
Compressor			/	DC inverter
Circulating pump			/	Inverter type / Built-in
IP Class			/	IPX4
Sound pressure at 1m distance			dB(A)	54	56	56
Max outlet water temperature			°C	75	75	75
Water piping connections			/	G1	G1 - 1/4	G1 - 1/4
Water Pressure drop(max)			kPa	20	55	55
Operating temperature range (Heating mode)			°C	-25~45
Operating temperature range (Cooling mode)			°C	16~45
Unpacked Dimensions ( L×D×H )			mm	1287448904	11874881456	11874881456
Packed Dimensions ( L×D×H )			mm	13174931020	12175381570	12175381570
UnPacked Weight			kg	134	195	195
Packed Weight			kg	146	208	208
Container Loading quantity(20GP/40GP/40HQ)			kg	32/64/64	16/32/32 (32+32 smaller models on 2nd layer)
